Installation Procedure

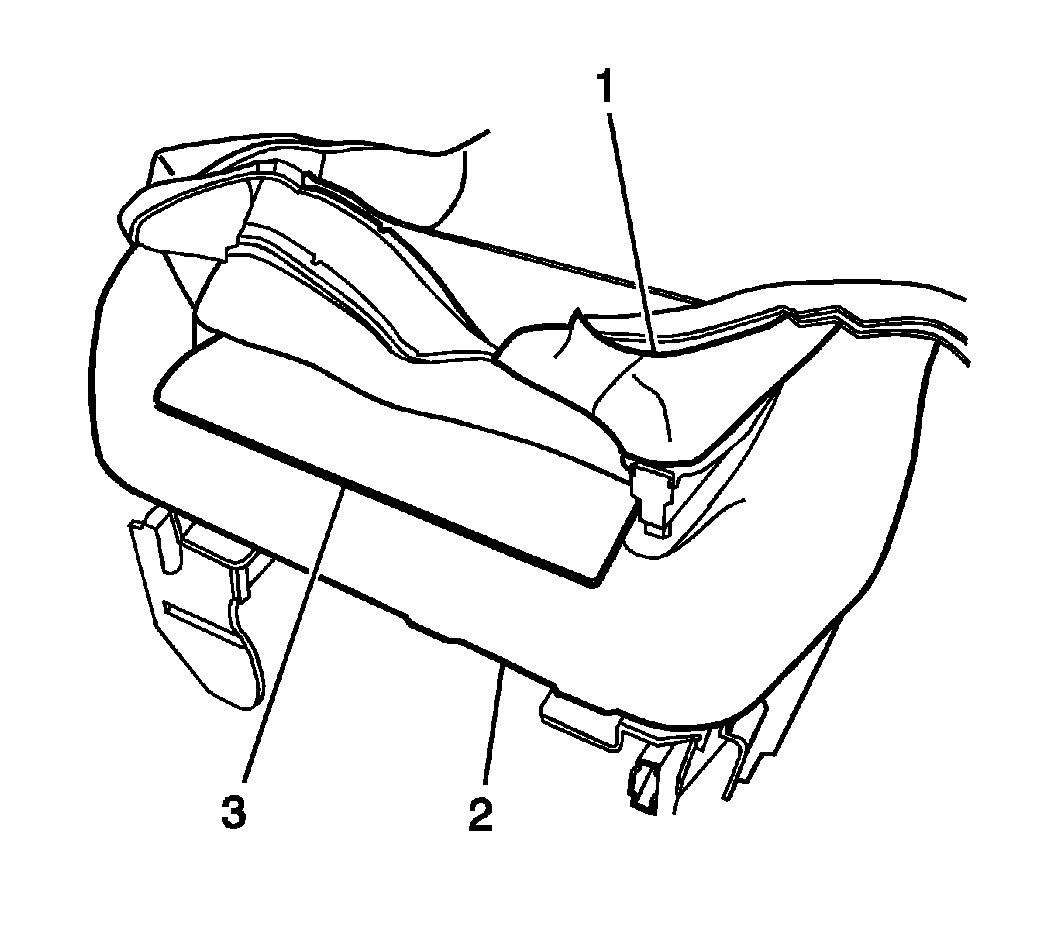

    Fig 1: View Of Heating Element
    GM1333655Courtesy of GENERAL MOTORS CORP.
  1. If the pad is being replaced, stick the adhesive-backed heating element (3) onto the pad (2), if equipped.
    2. Fig 2: View Of Seat Cushion Cover & Hog Rings
    GM1333652Courtesy of GENERAL MOTORS CORP.
  2. Install the cover (1) to the pad (2) with the hog rings (3).
    3. Fig 3: View Of Seat Belt Buckle Assembly
    GM1333095Courtesy of GENERAL MOTORS CORP.
  3. Install the seat cushion foam pad and cover to the frame.
  4. Install the seat belt buckle assembly (1) through the seat cushion pad.
    5. NOTE: Refer to Fastener Notice .
  5. Install the seat belt buckle assembly (1) to the seat adjuster with the bolt (2).

    Tighten:  Tighten the front seat belt buckle bolt to 55 N.m (41 lb ft).

    6. Fig 4: View Of Seat Buckle Electrical Connector & Wiring Harness
    GM1333091Courtesy of GENERAL MOTORS CORP.
  6. Connect the seat belt buckle electrical connector (1).
  7. Install any clips or straps securing the electrical harness to the bottom of the seat cushion frame.
  8. Position the seat back assembly on the seat cushion assembly.
    9. Fig 5: View Of Seat Recliner Bolts
    GM1333093Courtesy of GENERAL MOTORS CORP.
  9. Install the 2 bolts (1) securing the seat recliner to the seat adjuster.

    Tighten:  Tighten the front seat recliner bolts to 24 N.m (18 lb ft).

  10. Install the seat switch bezel, if equipped. Refer to Driver Seat and Passenger Seat Adjuster Switch Bezel Replacement .
  11. Install the lumbar knob by pushing the knob straight onto the shaft, if equipped.
  12. Install the recliner handle. Refer to Driver Seat and Passenger Seat Recliner Handle Replacement .
    13. Fig 6: View Of J-Strips
    GM1333089Courtesy of GENERAL MOTORS CORP.
  13. Install the front, rear, and side J-strips (1, 2) to the underside of the seat.
    14. Fig 7: View Of Cupholder Bracket Bolts
    GM1333099Courtesy of GENERAL MOTORS CORP.
  14. Install the 3 bolts (1) securing the cupholder bracket to the seat frame, if equipped.

    Tighten:  Tighten the front seat cupholder bracket bolts to 9.1 N.m (80 lb in).

  15. Install the front seat cushion outer trim panel. Refer to Seat Cushion Outer Trim Panel Replacement .
    16. Fig 8: View Of Cupholder
    GM1333098Courtesy of GENERAL MOTORS CORP.
  16. Install the cupholder to the seat by pushing it straight onto the bracket.
  17. Install the seat in the vehicle. Refer to Front Seat Replacement - Bucket  or Split Bench Seat Replacement .
