Installation Procedure

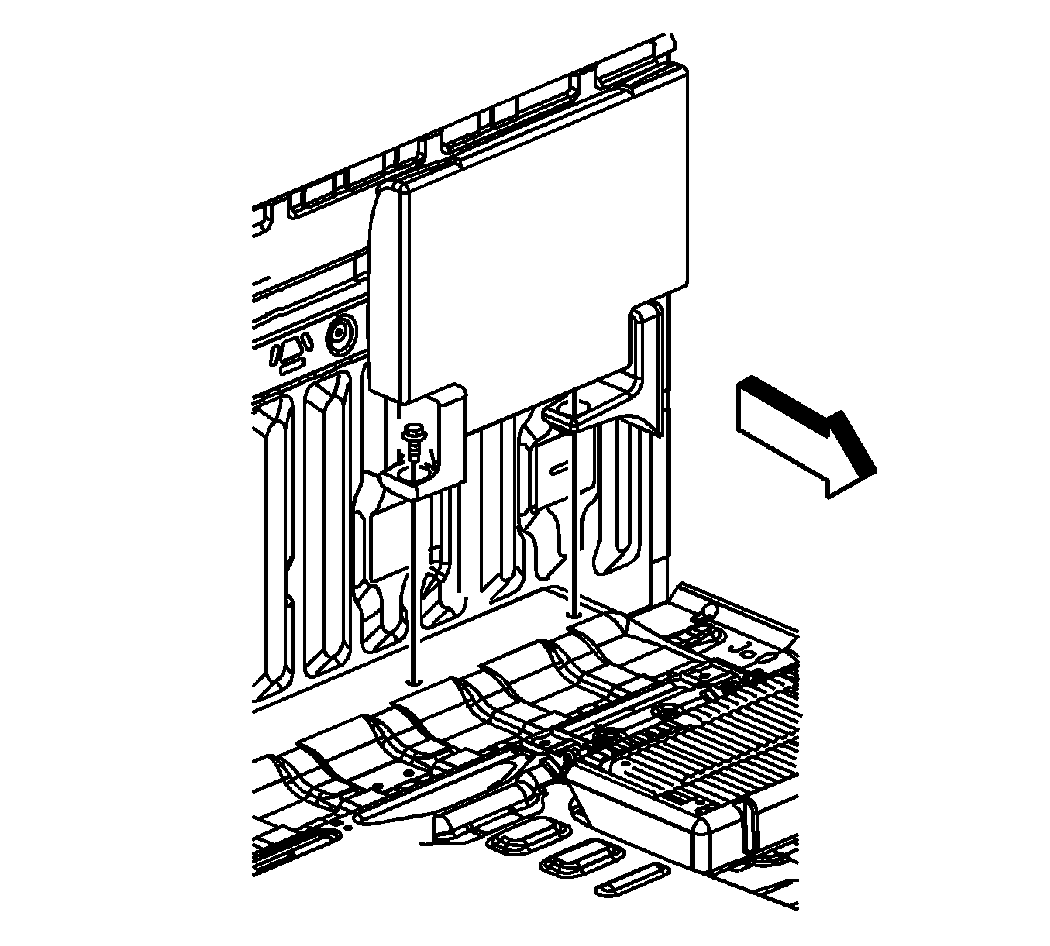

    Fig 1: View Of Folding Seat
    GM1276837Courtesy of GENERAL MOTORS CORP.
  1. Position the folding rear seat cushion assembly in the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the 2 bolts securing the folding rear seat cushion assembly to the vehicle.

    Tighten:  Tighten the folding rear seat cushion assembly bolts to 52.5 N.m (39 lb ft).
