Installation Procedure

  1. Position the seat back release knob onto the seat assembly.

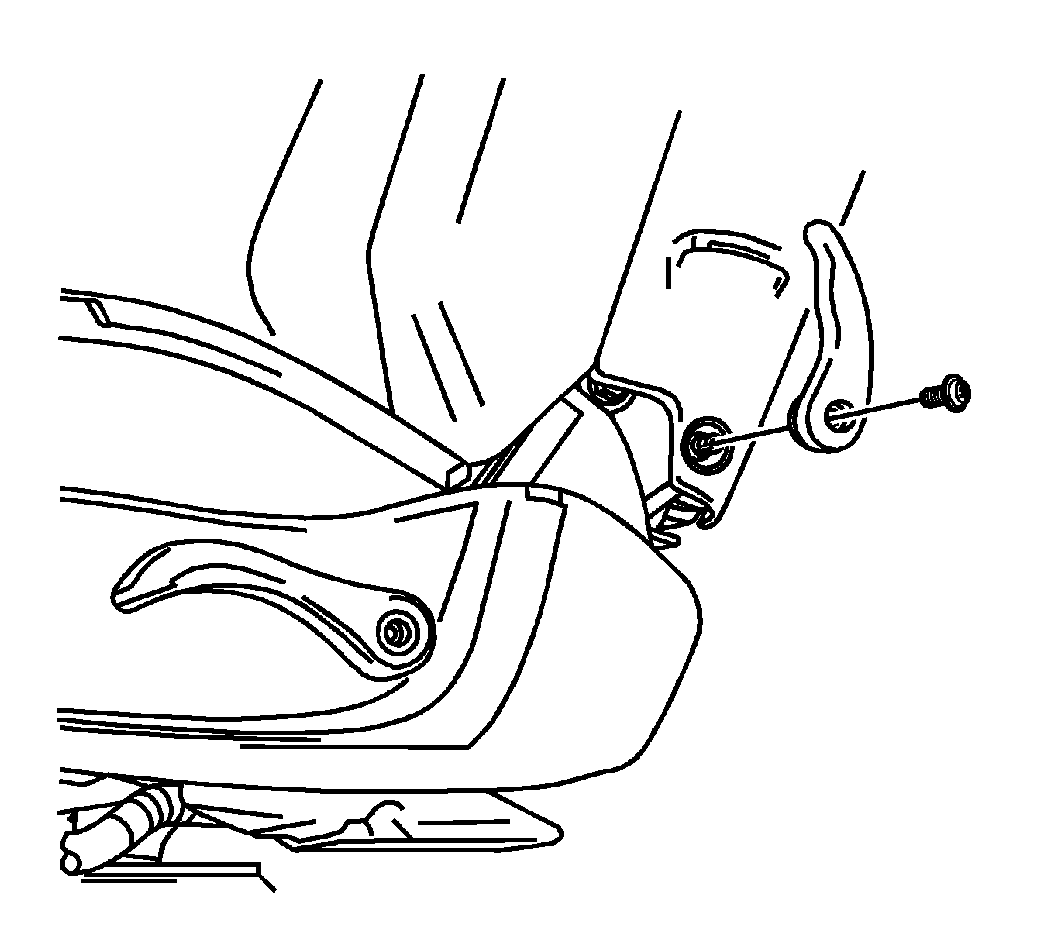

    2. Fig 1: View Of Seat Back Release Knob
    GM1200415Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the screw securing the seat back release knob to the seat.

    Tighten:  Tighten the front seat back release knob screw to 1.5 N.m (13 lb in).
