Installation Procedure

  1. Position the seat back recliner handle onto the seat assembly.

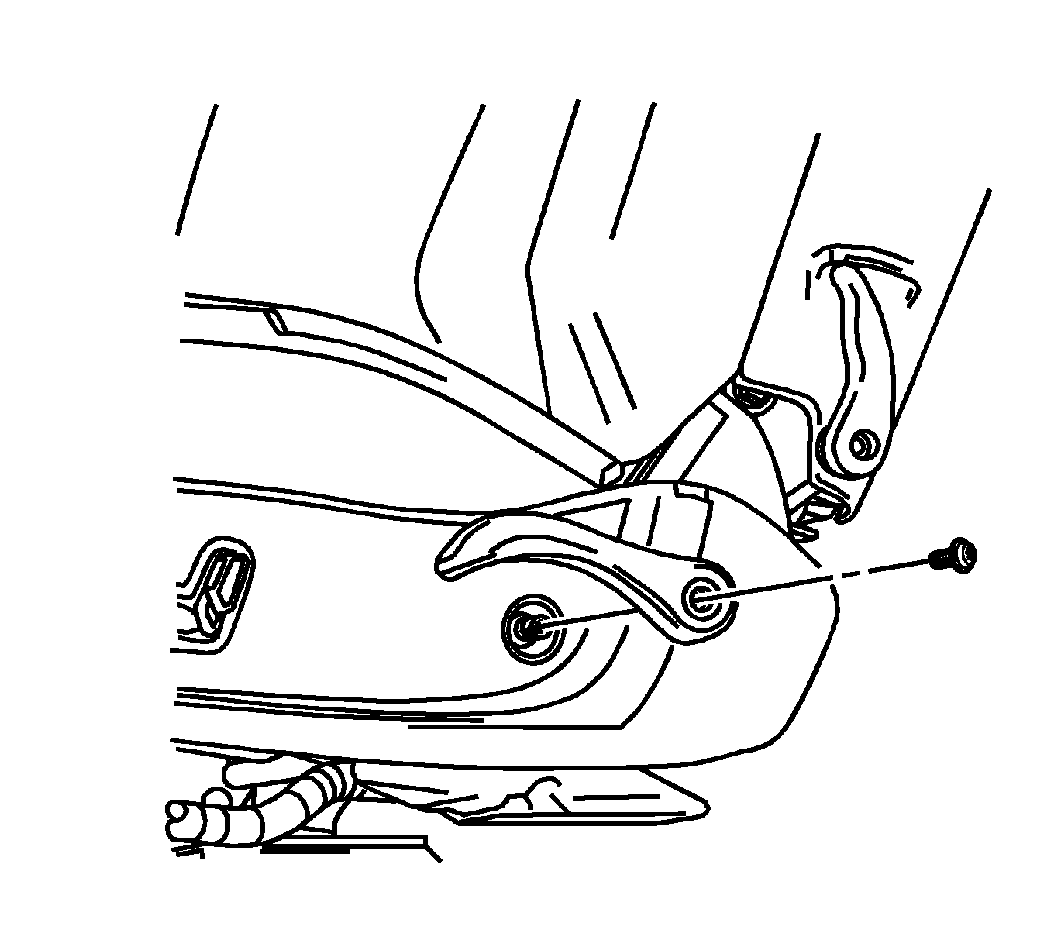

    2. Fig 1: View Of Seat Back Recliner Handle
    GM1200413Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the seat back recliner handle.

    Tighten:  Tighten the front seat back recliner handle screw to 1.5 N.m (13 lb in).
