Removal Procedure

  1. Remove the right front door. Refer to Front Side Door Replacement .
  2. Remove the front seats. Refer to Split Bench Seat Replacement or Front Seat Replacement - Bucket .
  3. Remove the rear seat. Refer to Rear Bench Seat Replacement .
  4. Remove the windshield garnish moldings. Refer to Windshield Pillar Garnish Molding Replacement .
    5. Fig 1: View Of Headliner Harness & Body Harness
    GM1277333Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the headliner harness (1) from the body harness (2).
  6. Remove the lower center pillar trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
  7. Remove the upper center pillar trim panel. Refer to Center Pillar Upper Trim Panel Replacement .
  8. Remove the lower body rear corner trim panels. Refer to Body Side Rear Lower Trim Panel Replacement (Crew Cab) or Body Side Rear Lower Trim Panel Replacement (Extended Cab) or Body Side Rear Lower Trim Panel Replacement (Regular Cab) .
  9. Remove the upper body rear corner trim panels. Refer to Body Side Upper Trim Panel Replacement (Regular Cab, Extended Cab) or Body Side Upper Trim Panel Replacement (Crew Cab) .
  10. Remove the dome lamp. Refer to Dome Lamp Replacement .
  11. Remove the sunshades. Refer to Sunshade Replacement .
  12. Remove the assist handles and the driver assist handle or assist handle blank. Refer to Assist Handle Replacement .
  13. Remove the coat hooks. Refer to Coat Hook Replacement .
    14. Fig 2: View Of Headliner Left Edge
    GM1276809Courtesy of GENERAL MOTORS CORP.
  14. Tilt the steering wheel to the full down position.
  15. If equipped with a manual transmission, place the transmission in 2nd gear and remove the shift knob handle.
  16. Remove the 2 push pins securing the headliner to the row bow.
  17. Remove the 2 rear push pins from the headliner. Replace any damaged push pin spacers.
  18. Lower the forward edge of the headliner.
  19. Standing at the left front door, grasp the headliner at the dome lamp opening and at the headliner's left edge.
    20. Fig 3: View Of Headliner Positioned Under Steering Wheel
    GM1276810Courtesy of GENERAL MOTORS CORP.
  20. Slide the headliner forward and under the steering wheel.

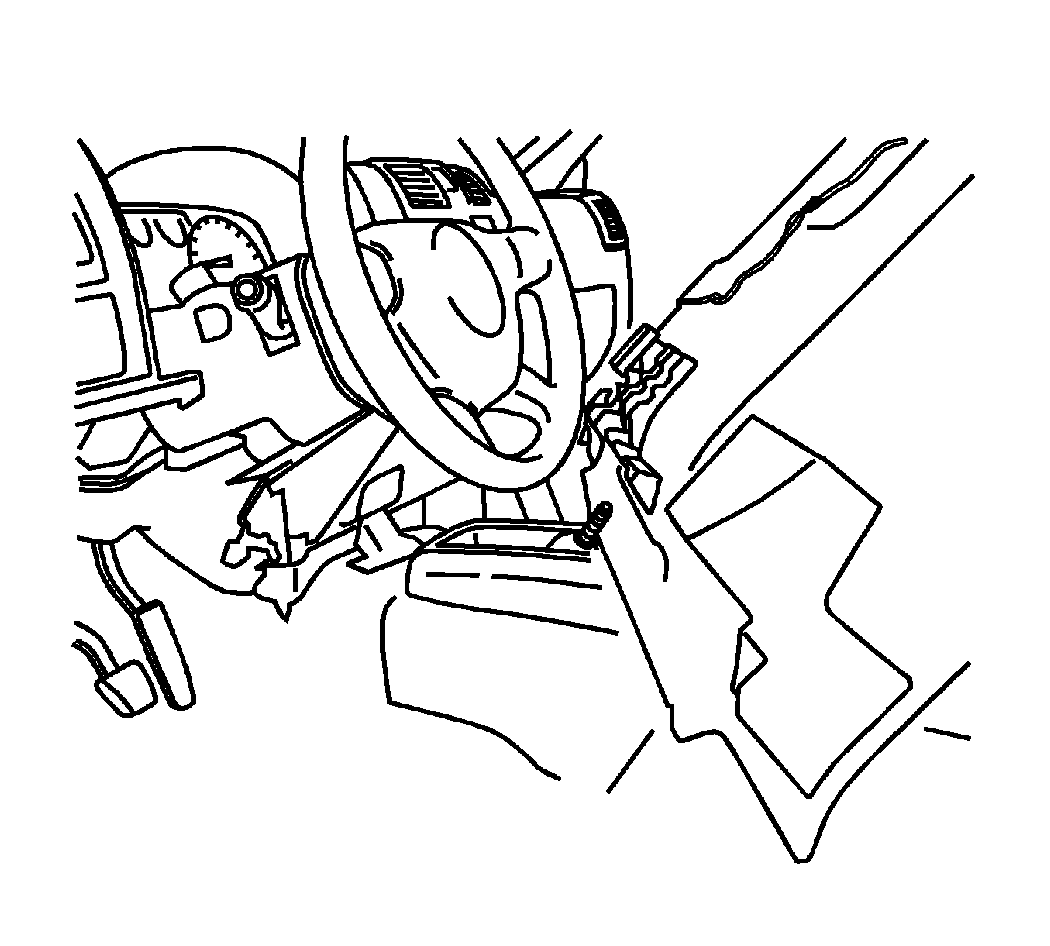

    21. Fig 4: View Of Forward Edge Of Headliner
    GM1276811Courtesy of GENERAL MOTORS CORP.
  21. Rotate the forward edge of the headliner towards the right front door opening ensuring that the left edge of the headliner is behind the shift knob stem.

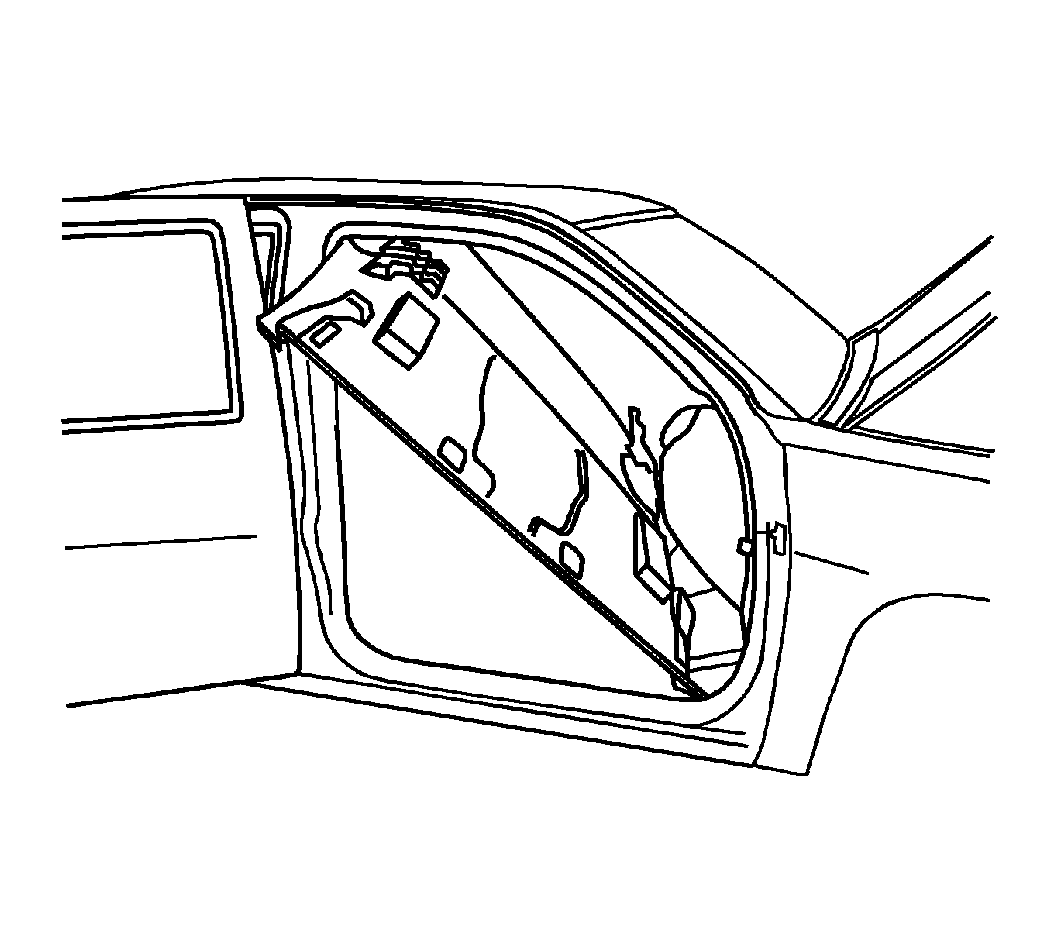

    22. Fig 5: View Of Headliner
    GM1276812Courtesy of GENERAL MOTORS CORP.
  22. Remove the headliner from the vehicle through the right front door opening.
