SIR Schematics

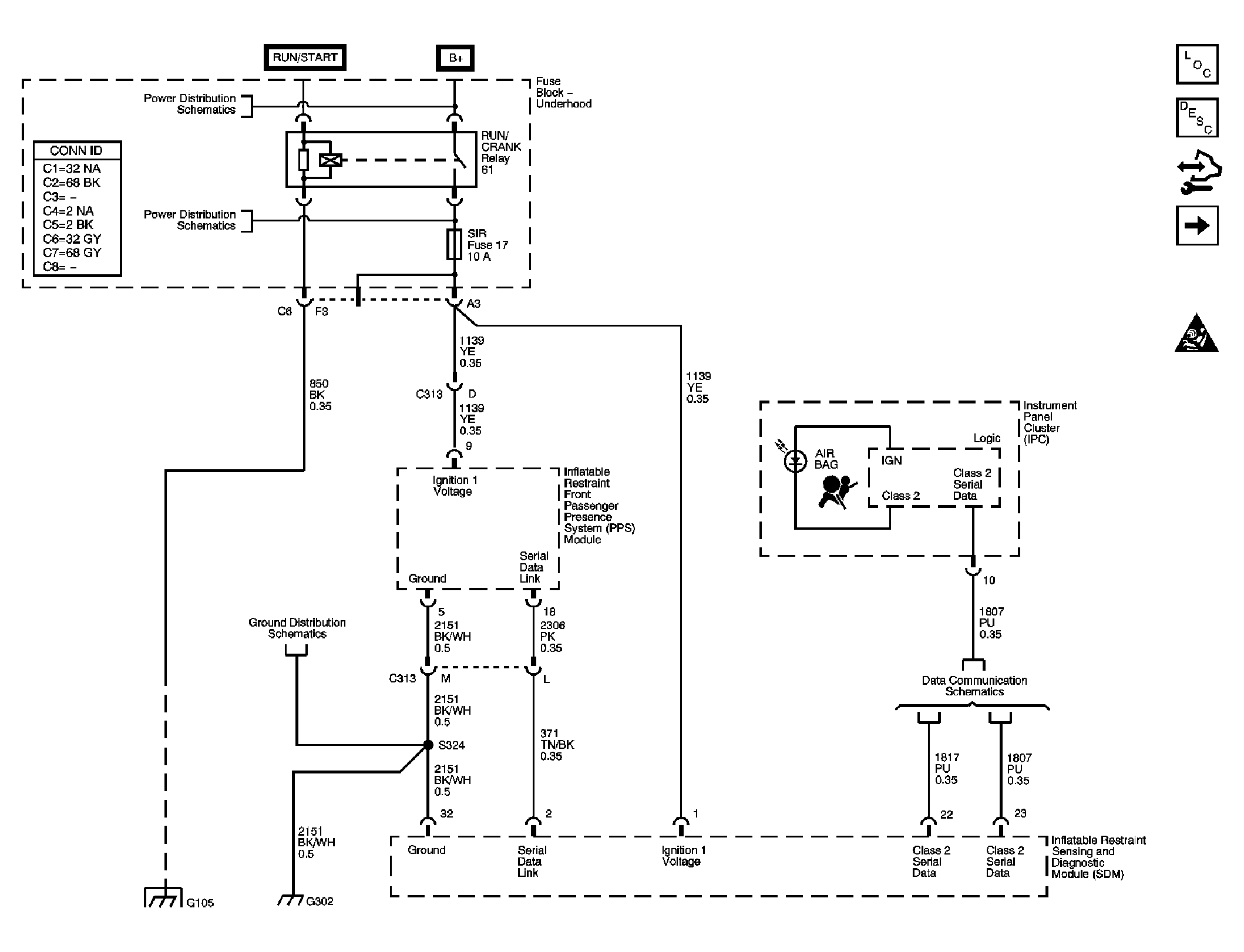

Fig 1: Power, Ground, Serial Data, and Disable Switch
GM1775557Courtesy of GENERAL MOTORS CORP.

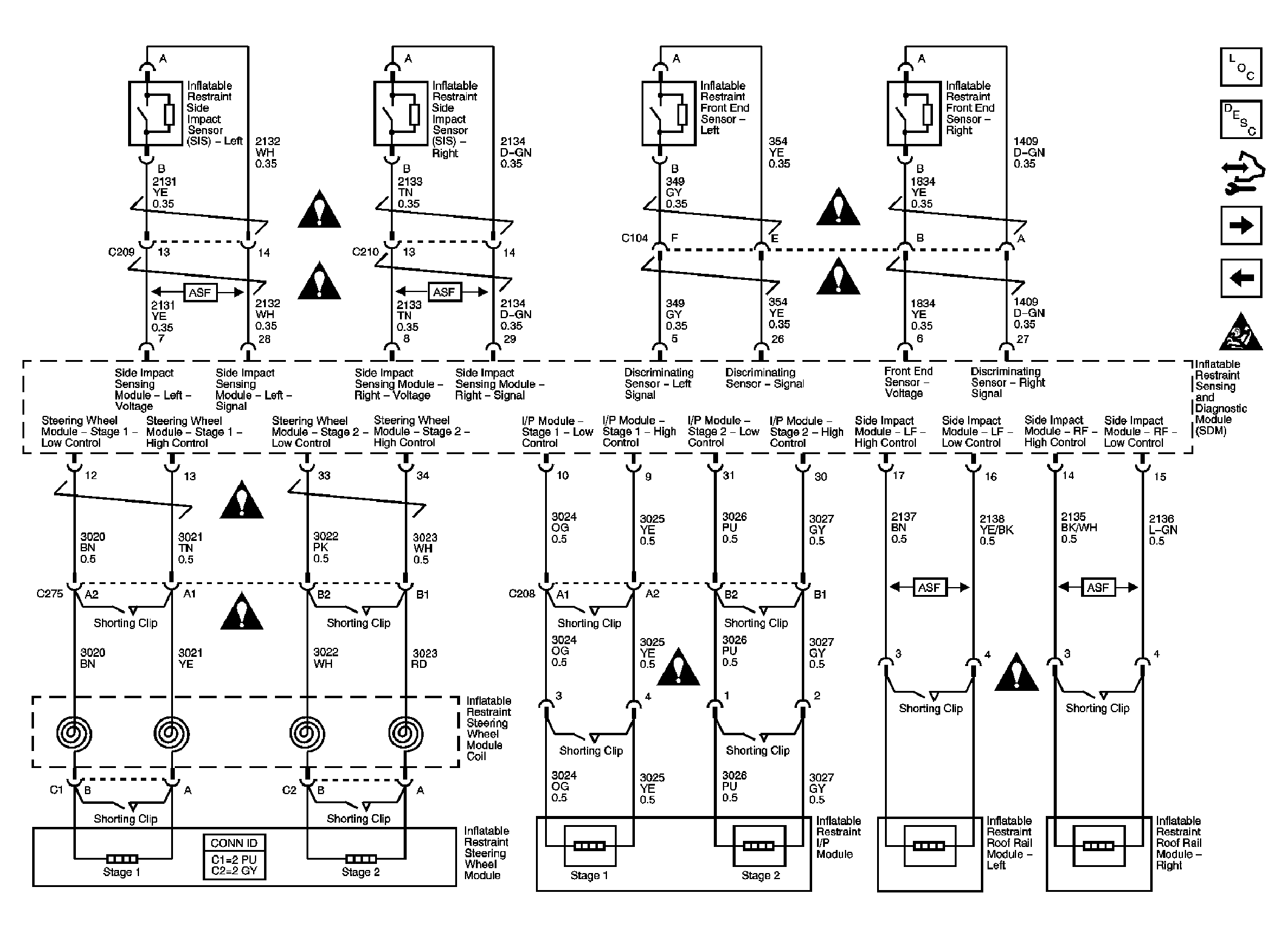

Fig 2: Front End Sensors, Side Impact Sensors, and Modules
GM1775570Courtesy of GENERAL MOTORS CORP.

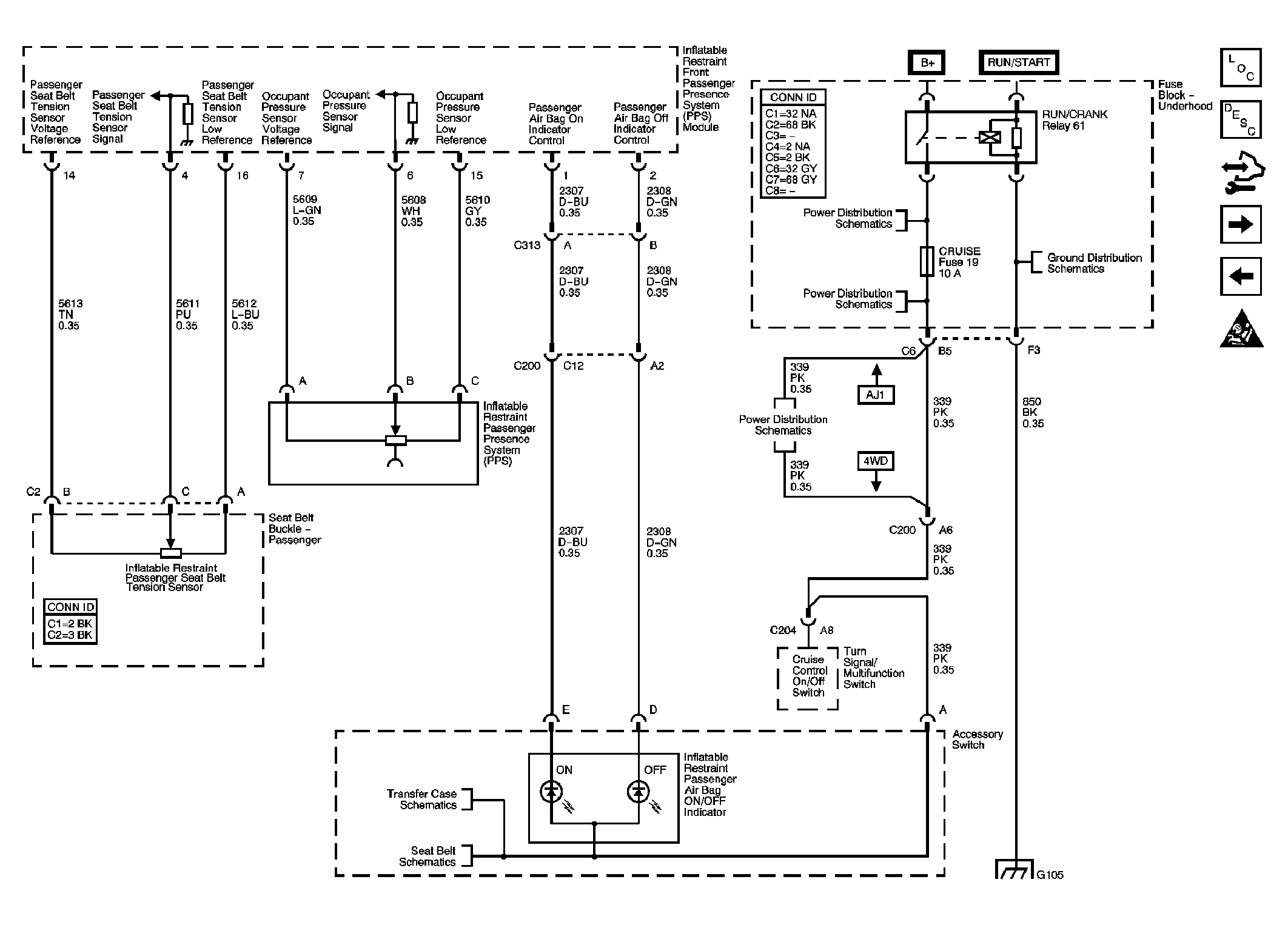

Fig 3: PPS Sensors and Indicators
GM1775577Courtesy of GENERAL MOTORS CORP.

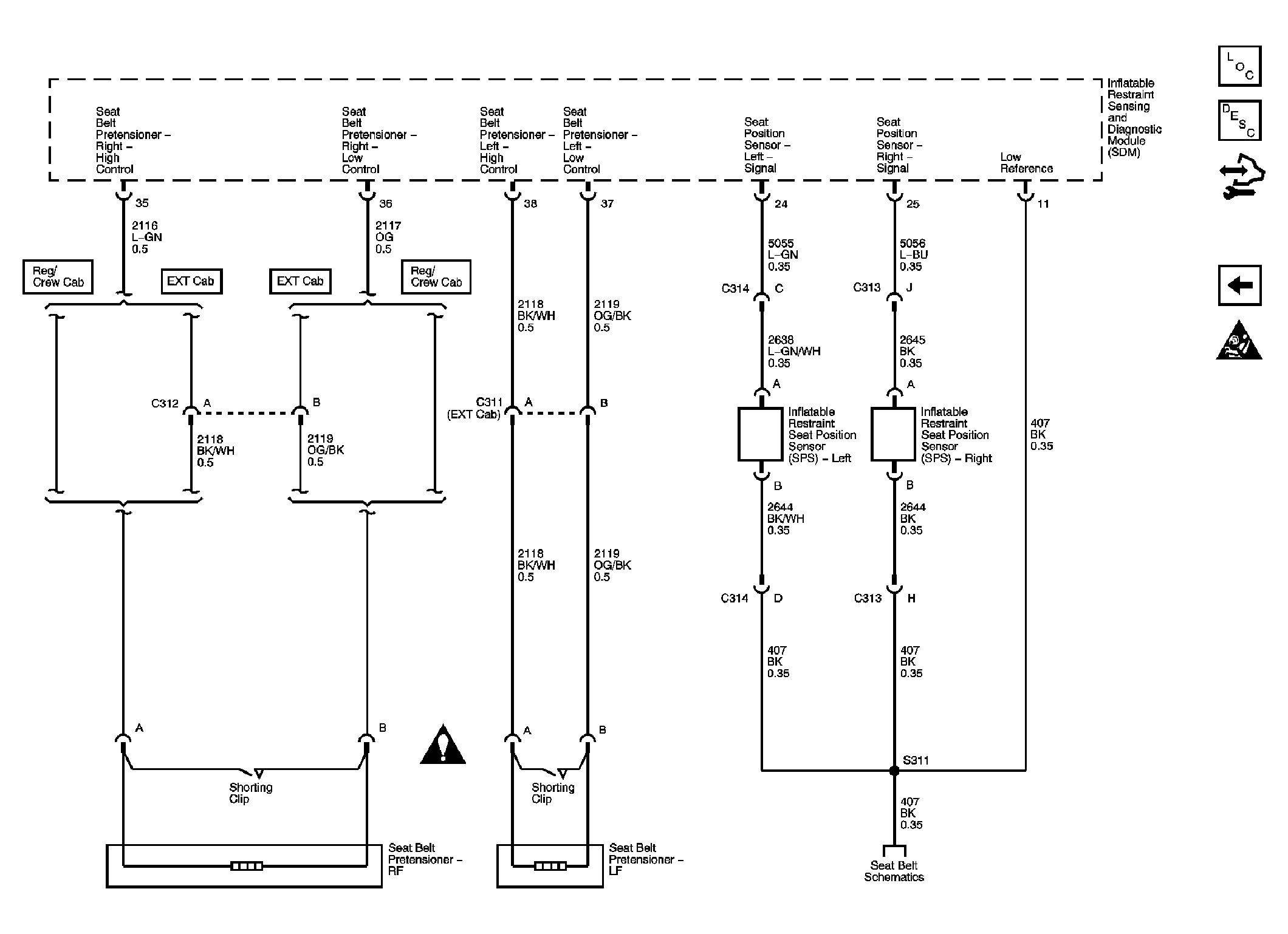

Fig 4: Seat Position Sensors, and Seat Belt Pretensioners
GM1775583Courtesy of GENERAL MOTORS CORP.
