SIR Component Views

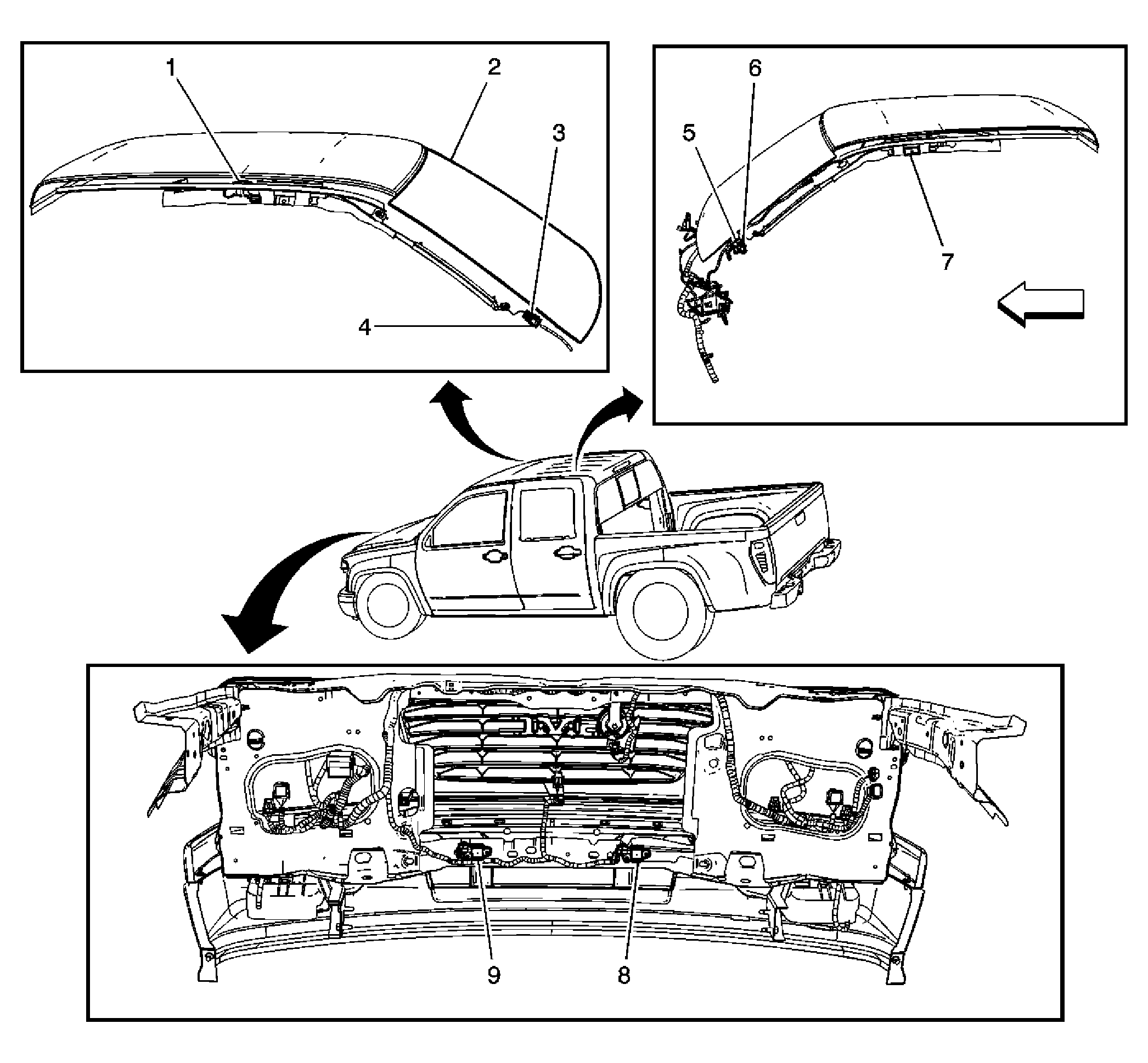

Fig 1: SIR Components (1 Of 3)

GM1350668

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Right (ASF)
2	Windshield
3	Inflatable Restraint Roof Rail Module -Right (ASF) Connector
4	Inflatable Restraint Roof Rail Module - Right (ASF) Connector Body Harness Side
5	Inflatable Restraint Roof Rail Module - Left (ASF) Connector Body Harness Side
6	Inflatable Restraint Roof Rail Module - Left (ASF) Connector
7	Inflatable Restraint Roof Rail Module - Left (ASF)
8	Inflatable Restraint Front End Sensor - Left
9	Inflatable Restraint Front End Sensor - Right

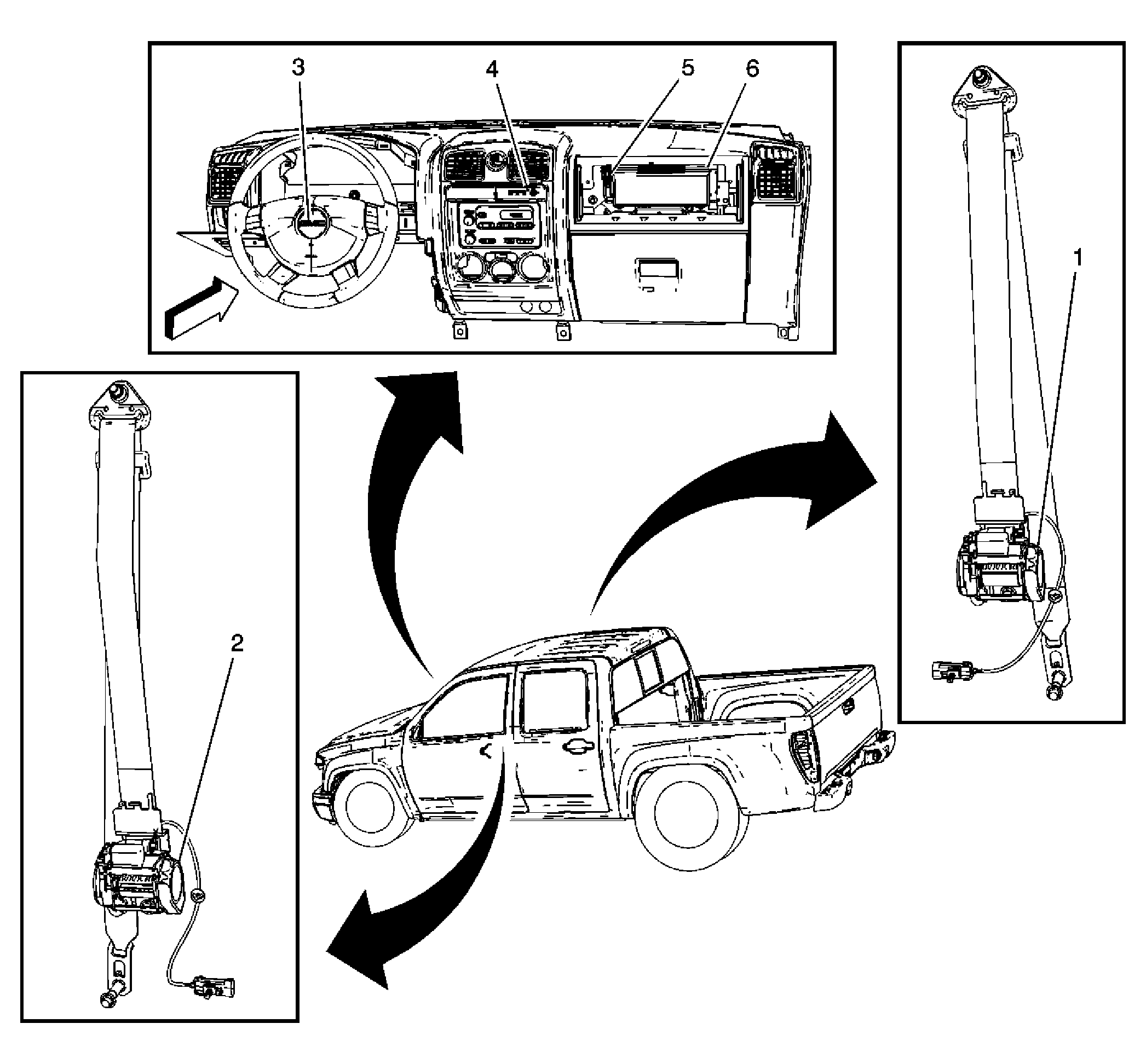

Fig 2: SIR Components (2 Of 3)

GM1351106

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - RF
2	Seat Belt Pretensioner - LF
3	Inflatable Restraint Steering Wheel Module
4	Accessory Switch
5	Inflatable Restraint I/P Module Connector
6	Inflatable Restraint I/P Module

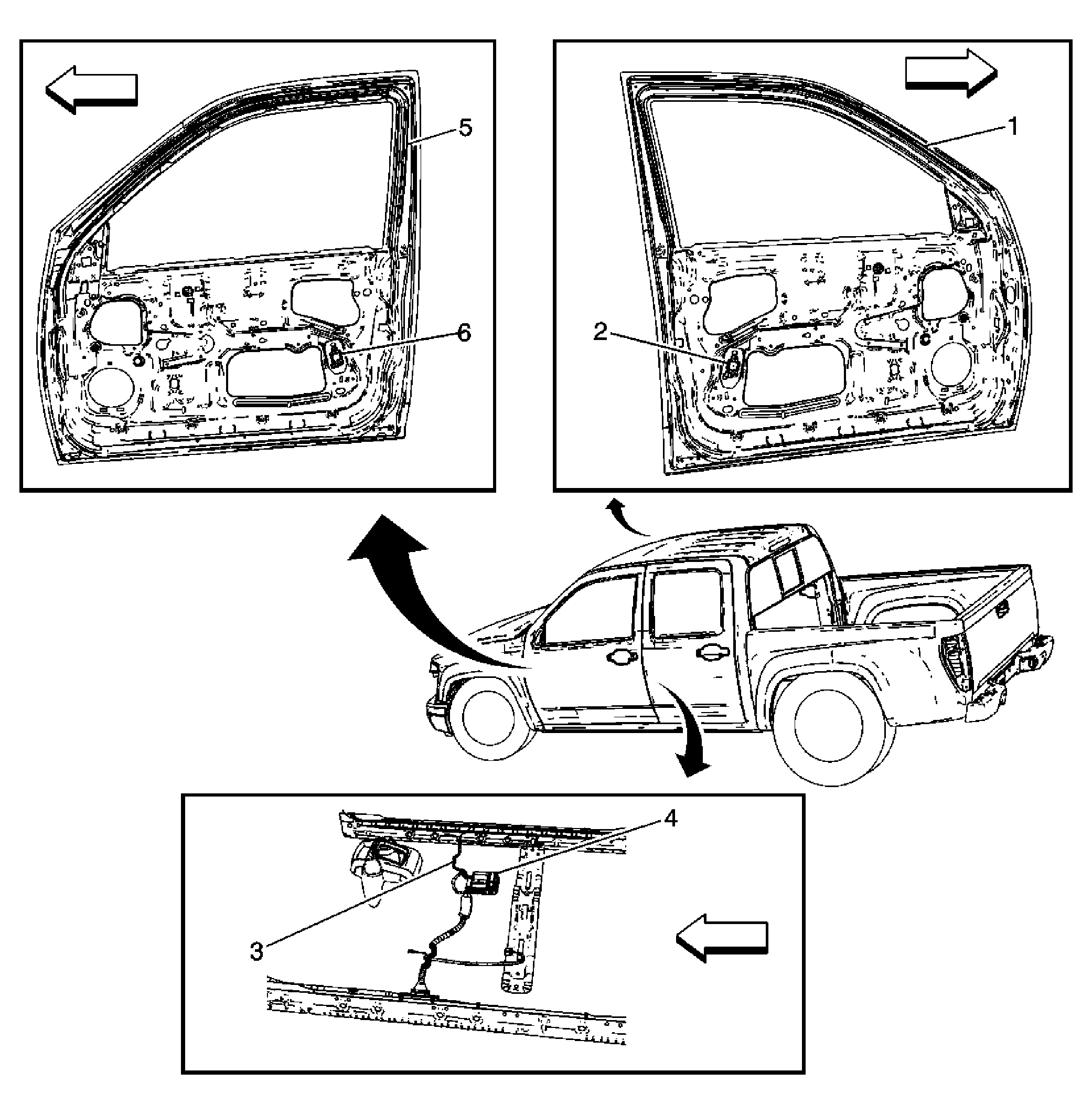

Fig 3: SIR Components (3 Of 3)

GM1351918

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door
2	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
3	Body Harness
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
5	Driver Door
6	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

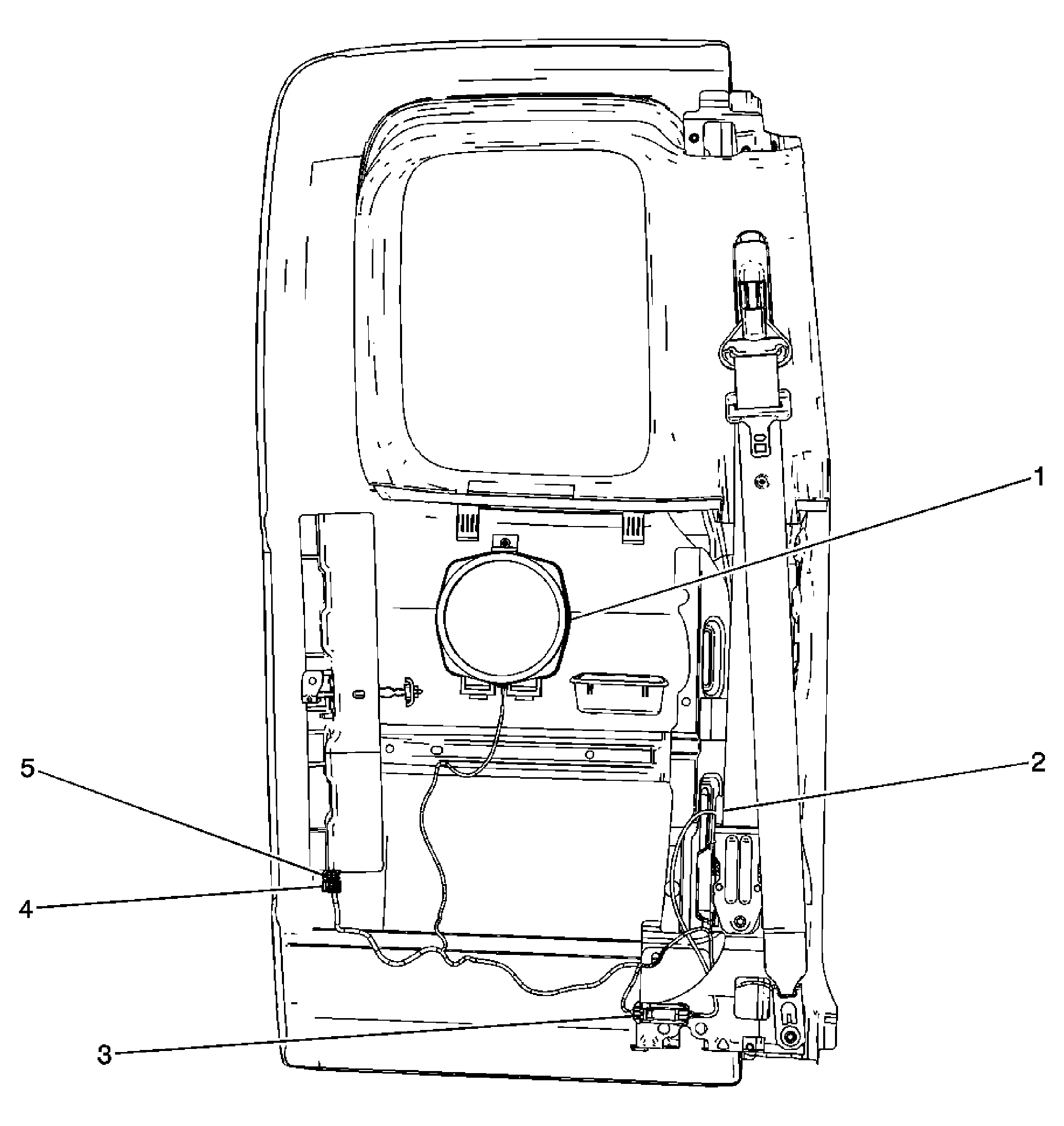

Fig 4: Left Rear Door (EXT Cab) Component View

GM1361453

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR Door
2	Seat Belt Pretensioner - LF
3	Seat Belt Pretensioner - LF Connector
4	C316
5	C311

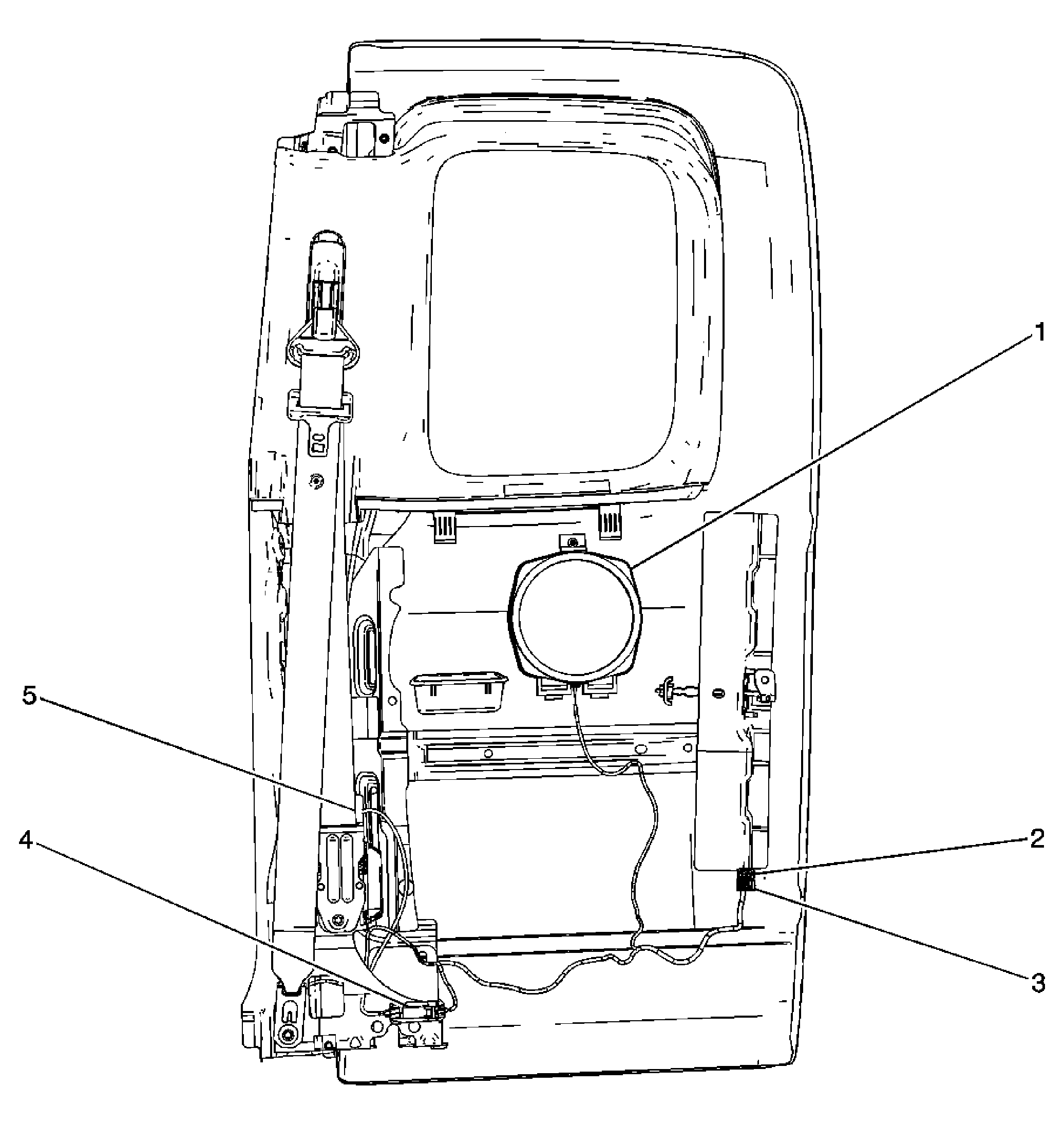

Fig 5: Right Rear Door (EXT Cab) Component View

GM1391010

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR Door
2	C312
3	C317
4	Seat Belt Pretensioner - RF Connector
5	Seat Belt Pretensioner - RF

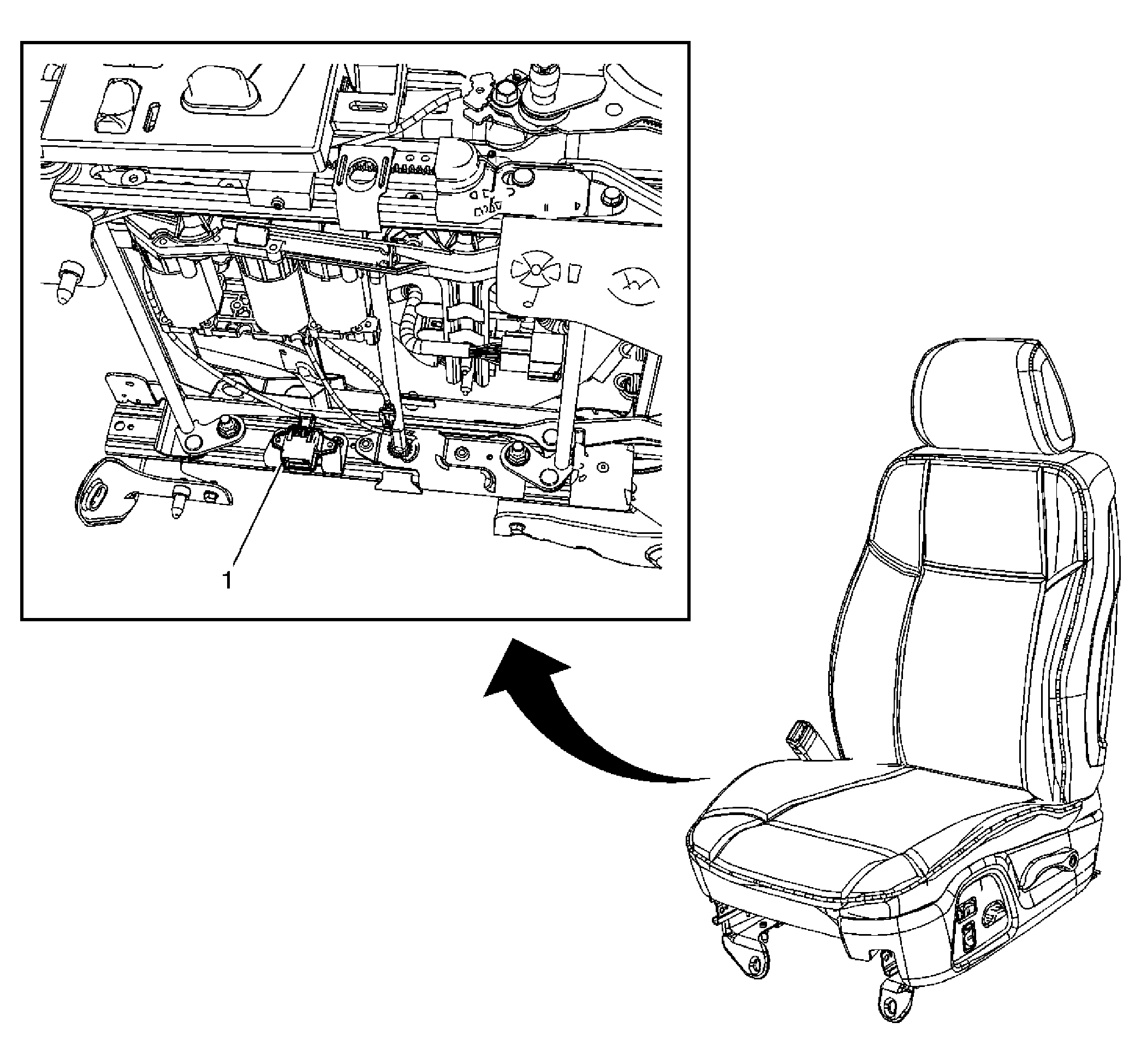

Fig 6: Under Drivers Seat

GM1640998

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Seat Position Sensor (SPS) - Left

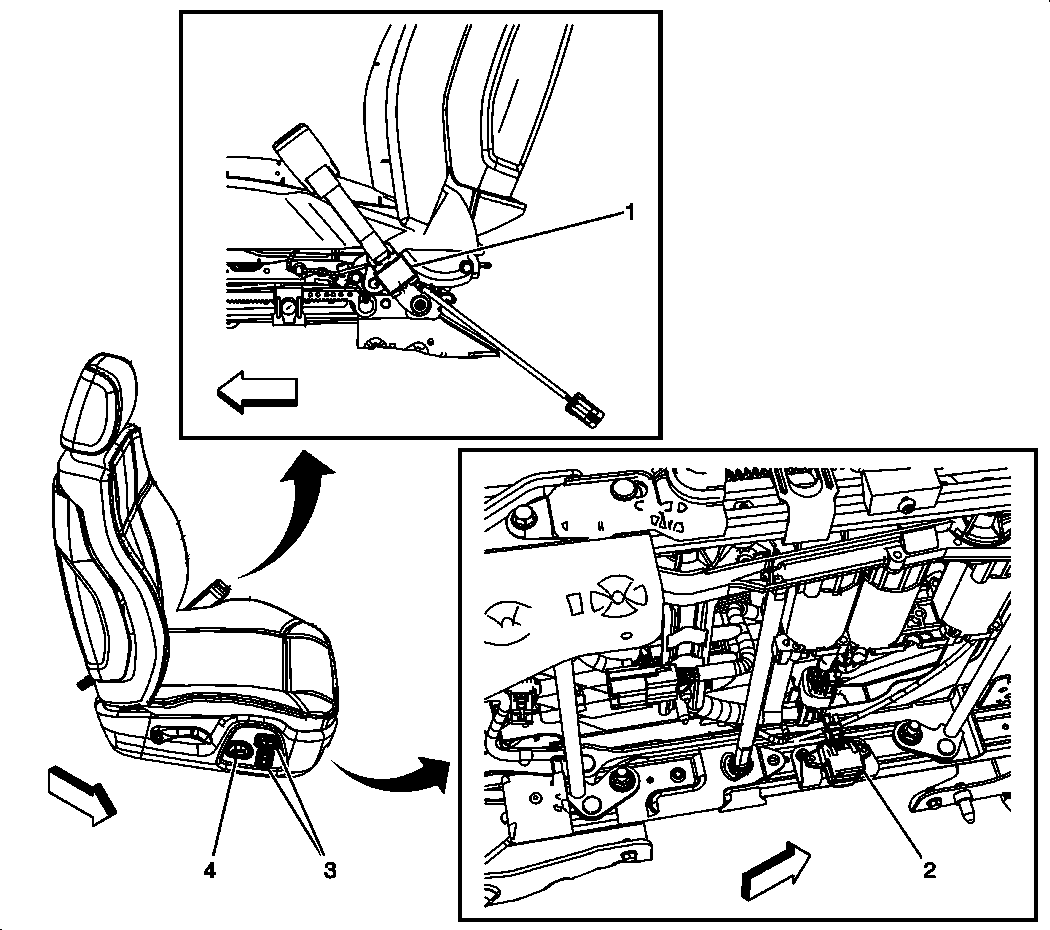

Fig 7: Under Passenger Seat

GM1640999

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Passenger Seat Belt Tension Sensor
2	Inflatable Restraint Seat Position Sensor (SPS) - Right

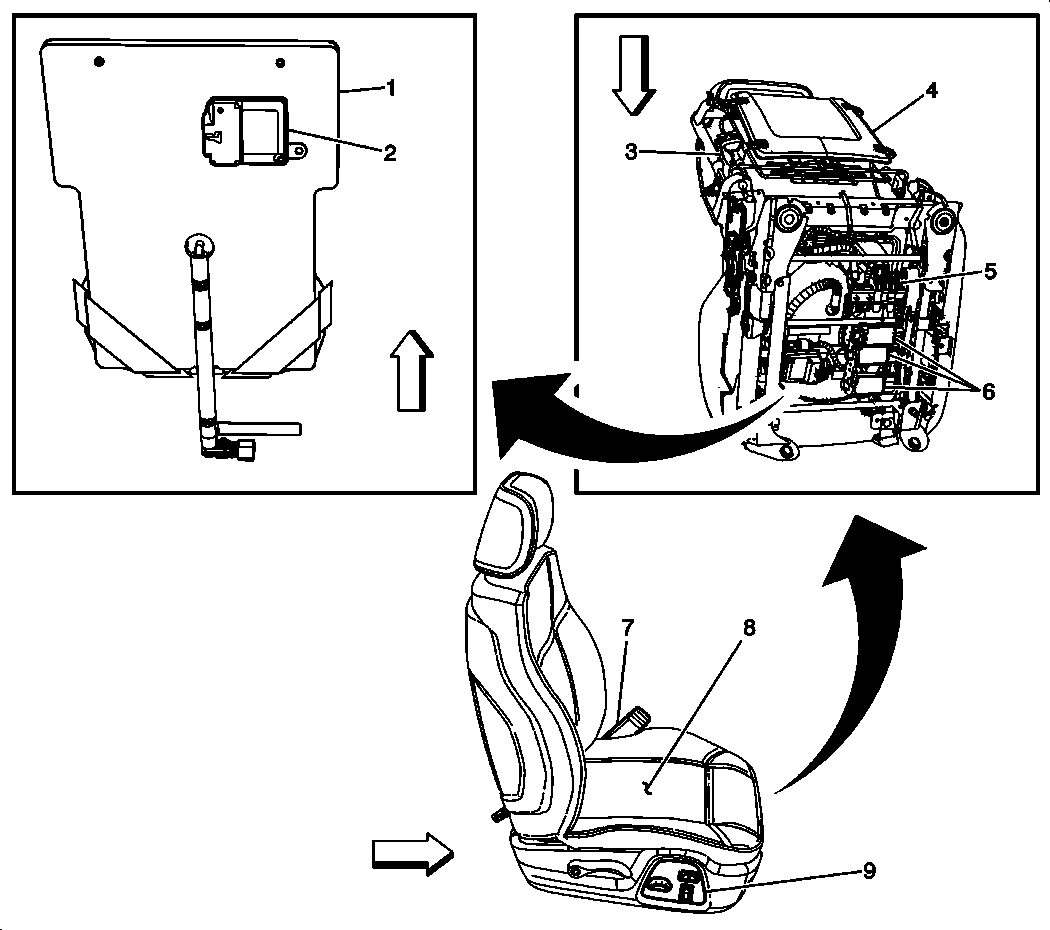

Fig 8: Passenger Seat Components

GM1575941

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heater Element Seat Cushion - Passenger (KA1)
2	Inflatable Restraint Passenger Presence Module
3	Lumbar Pump Motor - Passenger
4	Heater Element Seat Back - Passenger (KA1)
5	C315 Passenger Seat Harness to Body Harness
6	Seat Motors - Passenger
7	Seat Belt Buckle - Passenger
8	Seat Adjuster Switch - Passenger
