HVAC Component Views

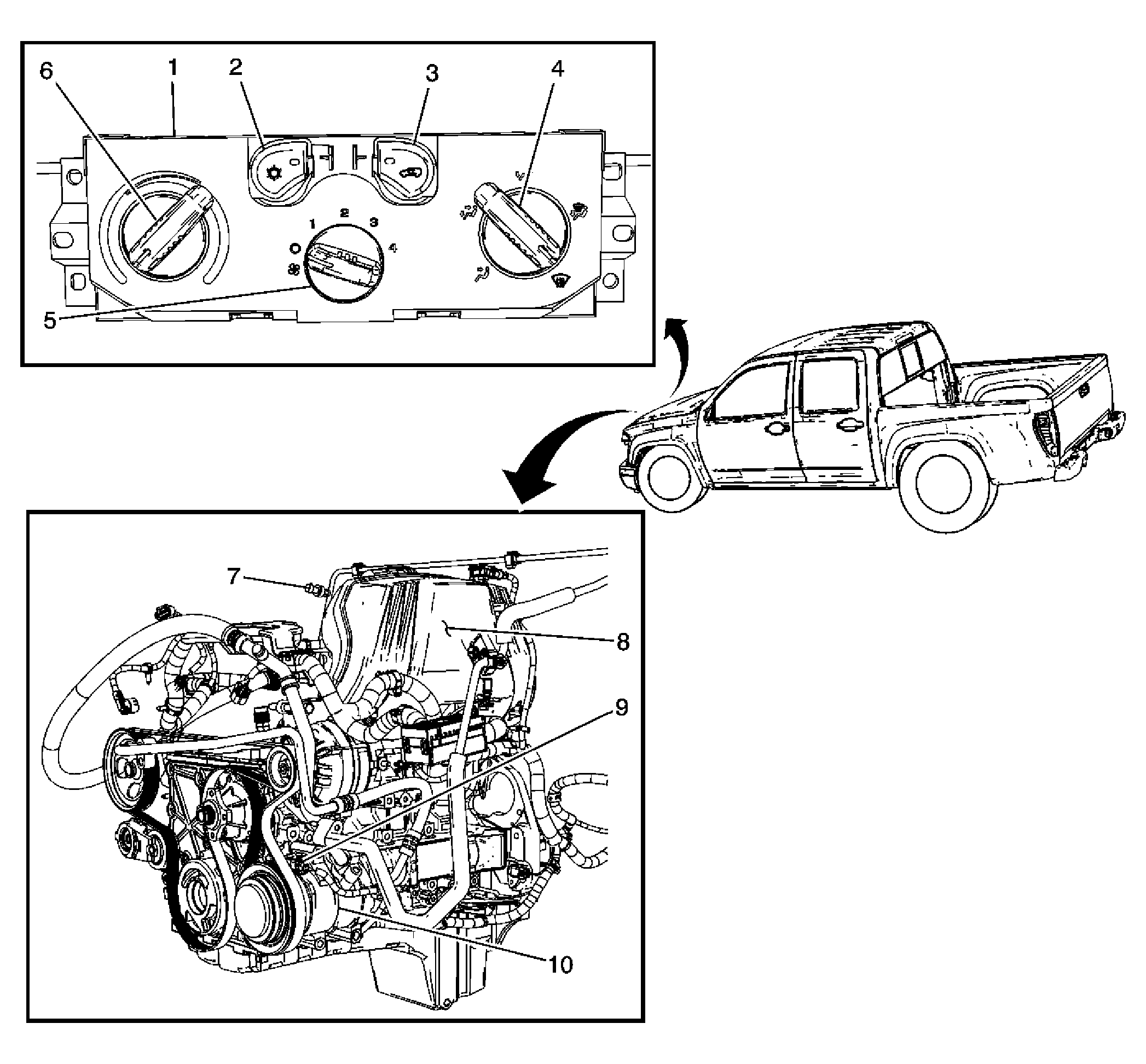

Fig 1: HVAC Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module
2	A/C Request
3	Recirculation Mode
4	Mode Control
5	Blower Speed Control
6	Temperature Control
7	A/C Refrigerant Pressure Sensor
8	Engine (3.5L Shown)
9	A/C Compressor Clutch
10	A/C Compressor

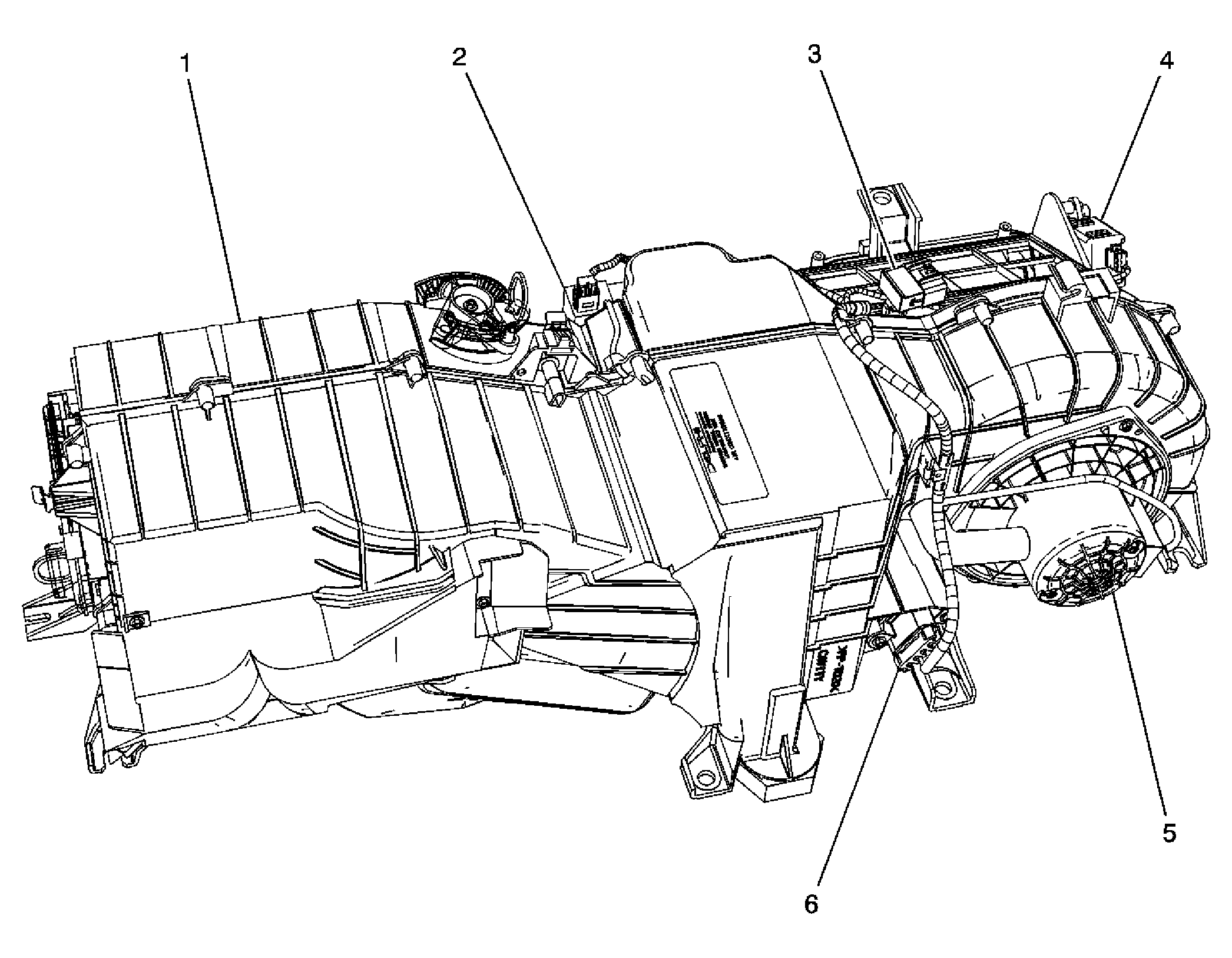

Fig 2: HVAC Module Assembly Subsystem Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Module Assembly
2	Evaporative Temperature Sensor
3	C203
4	Recirculation Actuator
5	Blower Motor
6	Blower Motor Resistor Assembly
