Section 4 (Automatic Transmission - 4L60-E/4L65-E/4L70-E - DTC P0218 To DTC P1810)
>>
DTC P0218
>>
Notes
DTC P0218: Notes
WARNING:
This page is about a different variant/trim than selected.

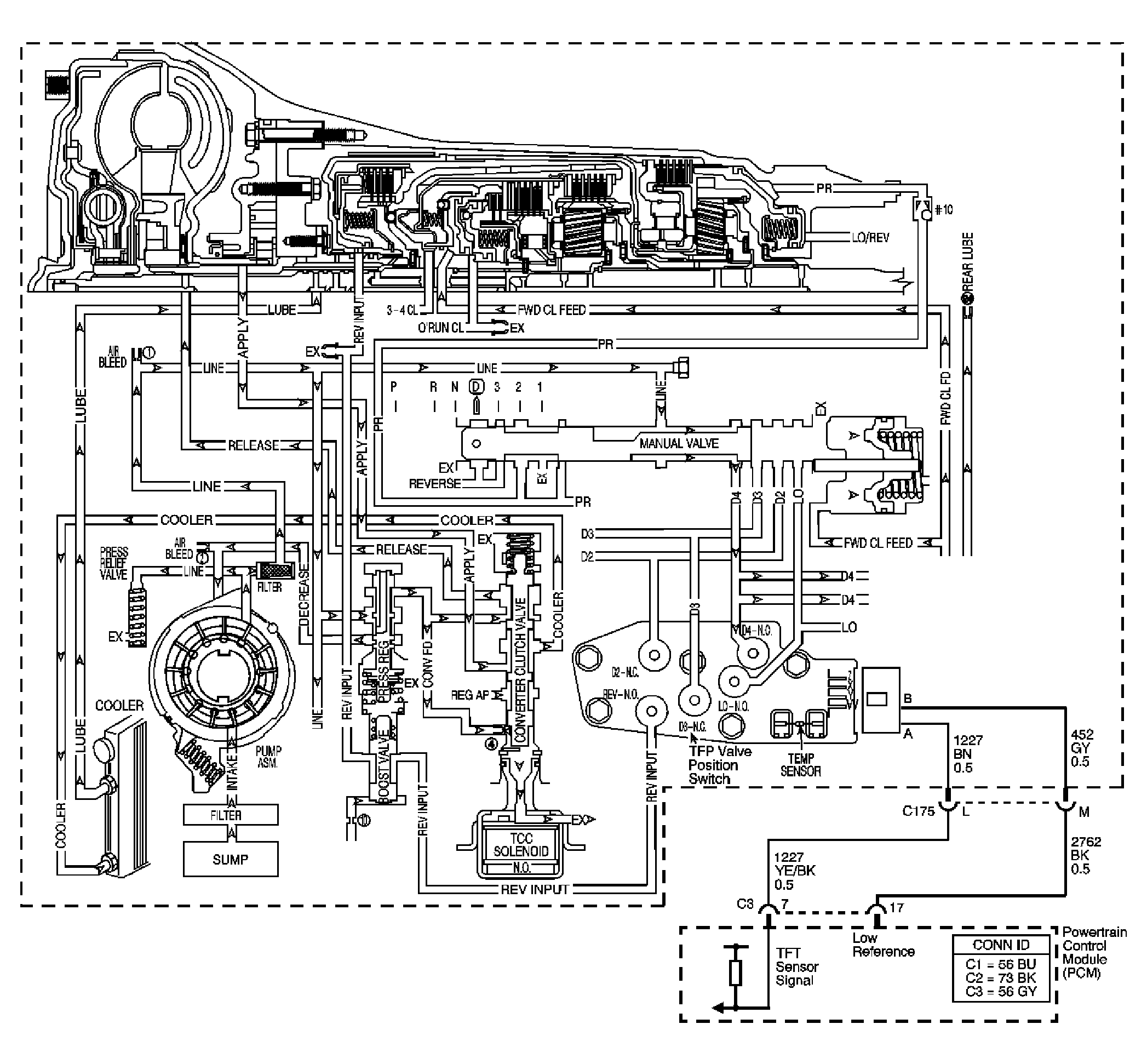

Fig 1: Identifying Transmission Fluid Flow
Courtesy of GENERAL MOTORS CORP.
