Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Removing/Installing Filler Tube & Seal
    GM744703Courtesy of GENERAL MOTORS CORP.
  1. Install a new seal (2) into the transmission case.
  2. Remove the container used to catch the used transmission fluid from under the vehicle.
  3. Lightly lubricate the filler tube (1) and seal (2) with clean DEXRON® III transmission fluid to ease installation.
  4. Install the filler tube (1) into the seal (2).
  5. Lower the vehicle.

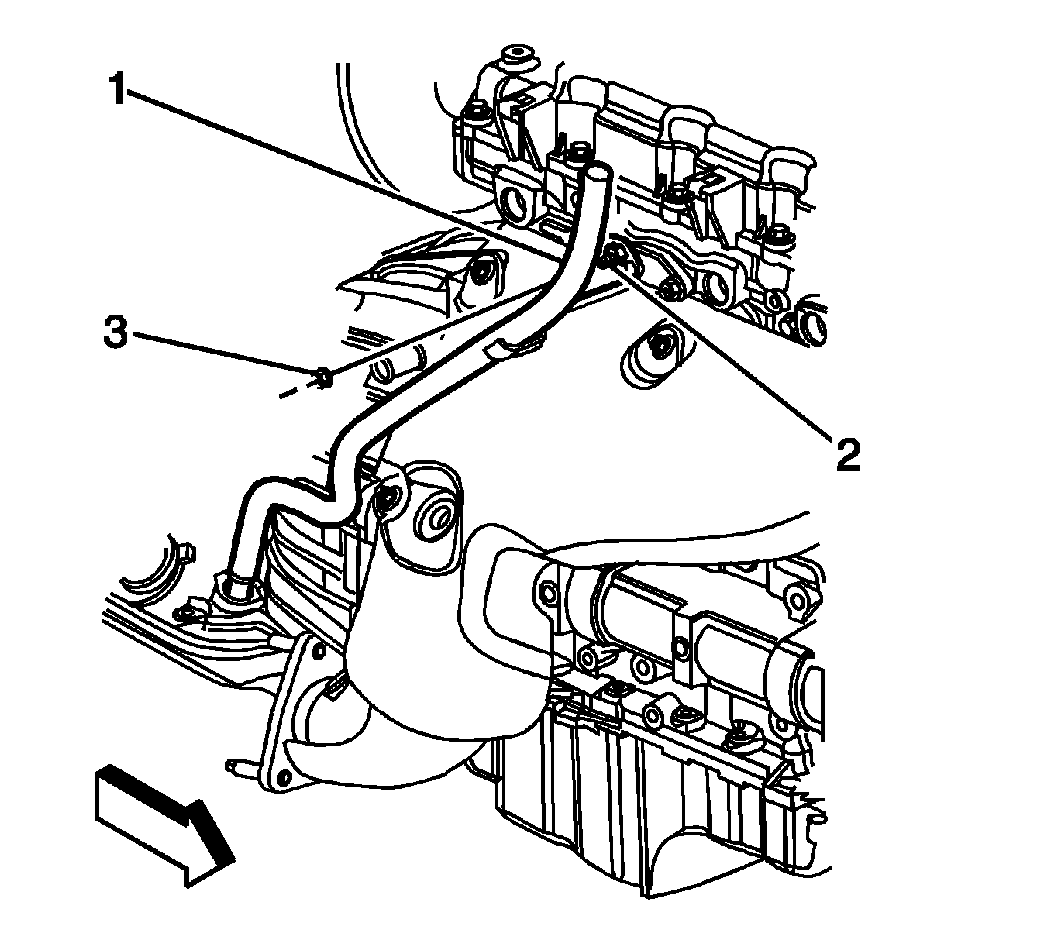

    6. Fig 2: View Of Filler Tube
    GM1302099Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  6. Install the nut (3) securing the filler tube (1) to the secondary AIR stud (2).

    Tighten:  Tighten the filler tube nut to 12.5 N.m (111 lb in).

  7. Install the filler tube indicator.
  8. Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to Transmission Fluid Checking .
