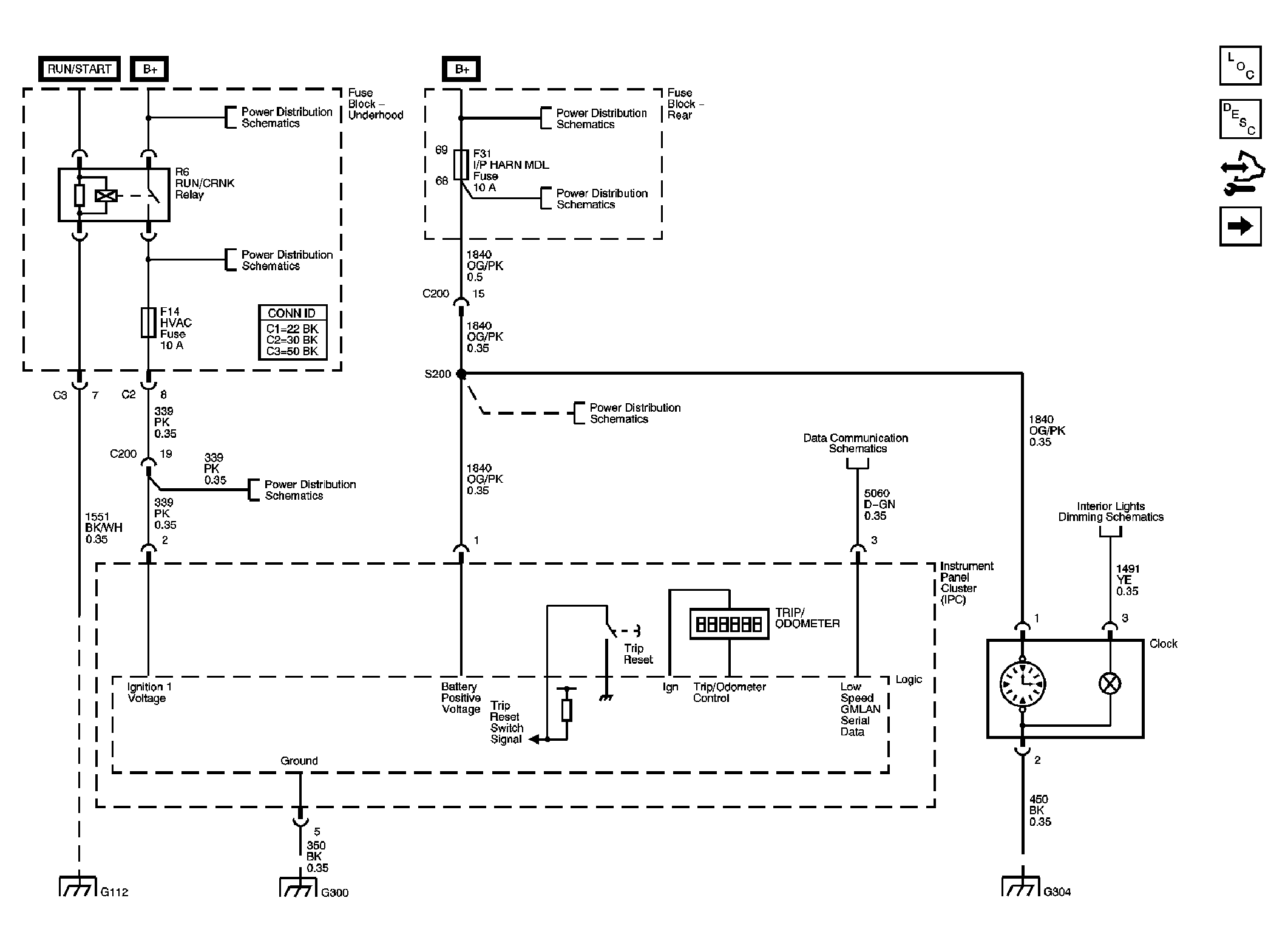

Fig 1: Power, Ground, Clock Schematics
Courtesy of GENERAL MOTORS CORP.

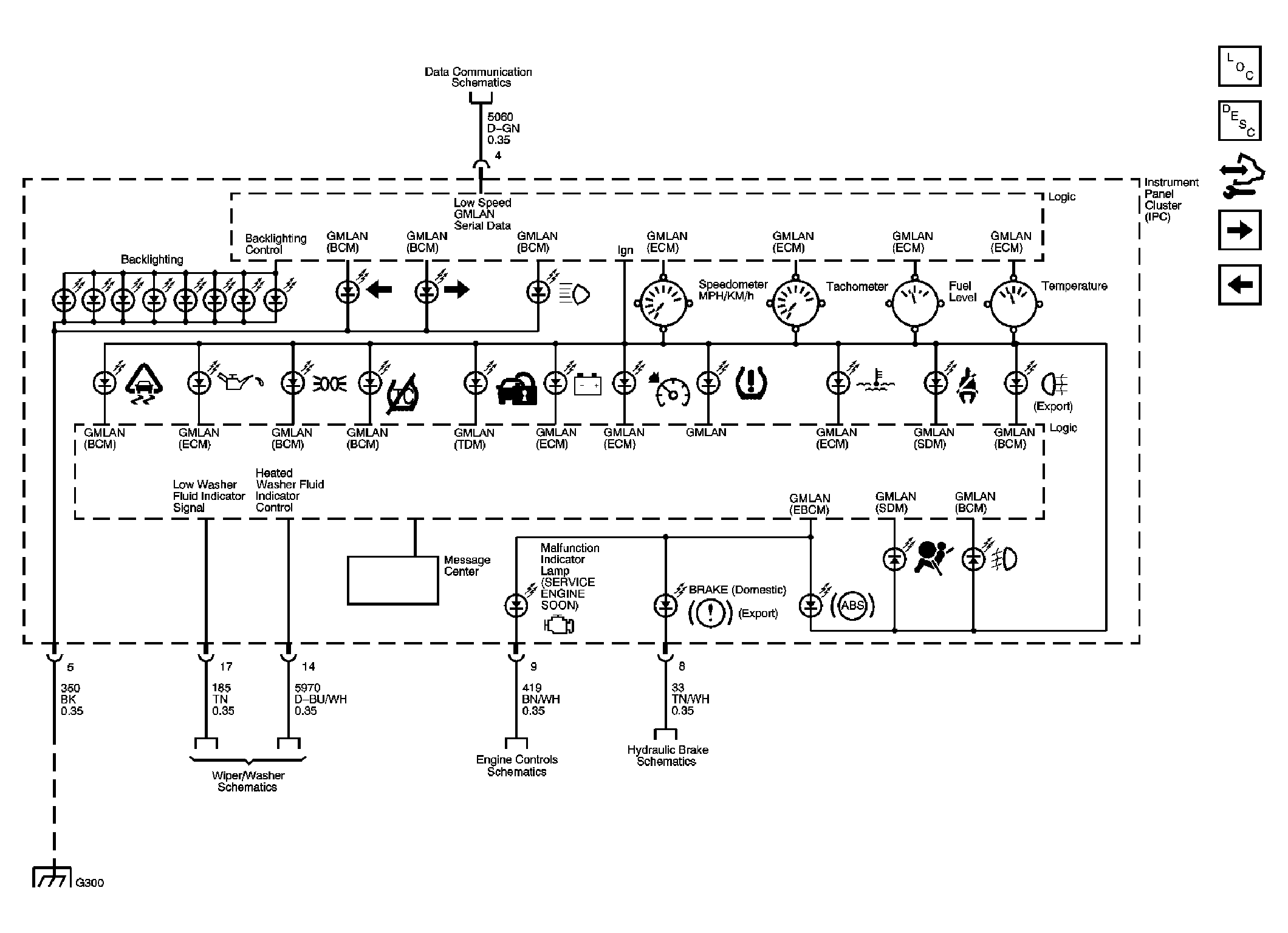

Fig 2: Indicators Schematics
Courtesy of GENERAL MOTORS CORP.

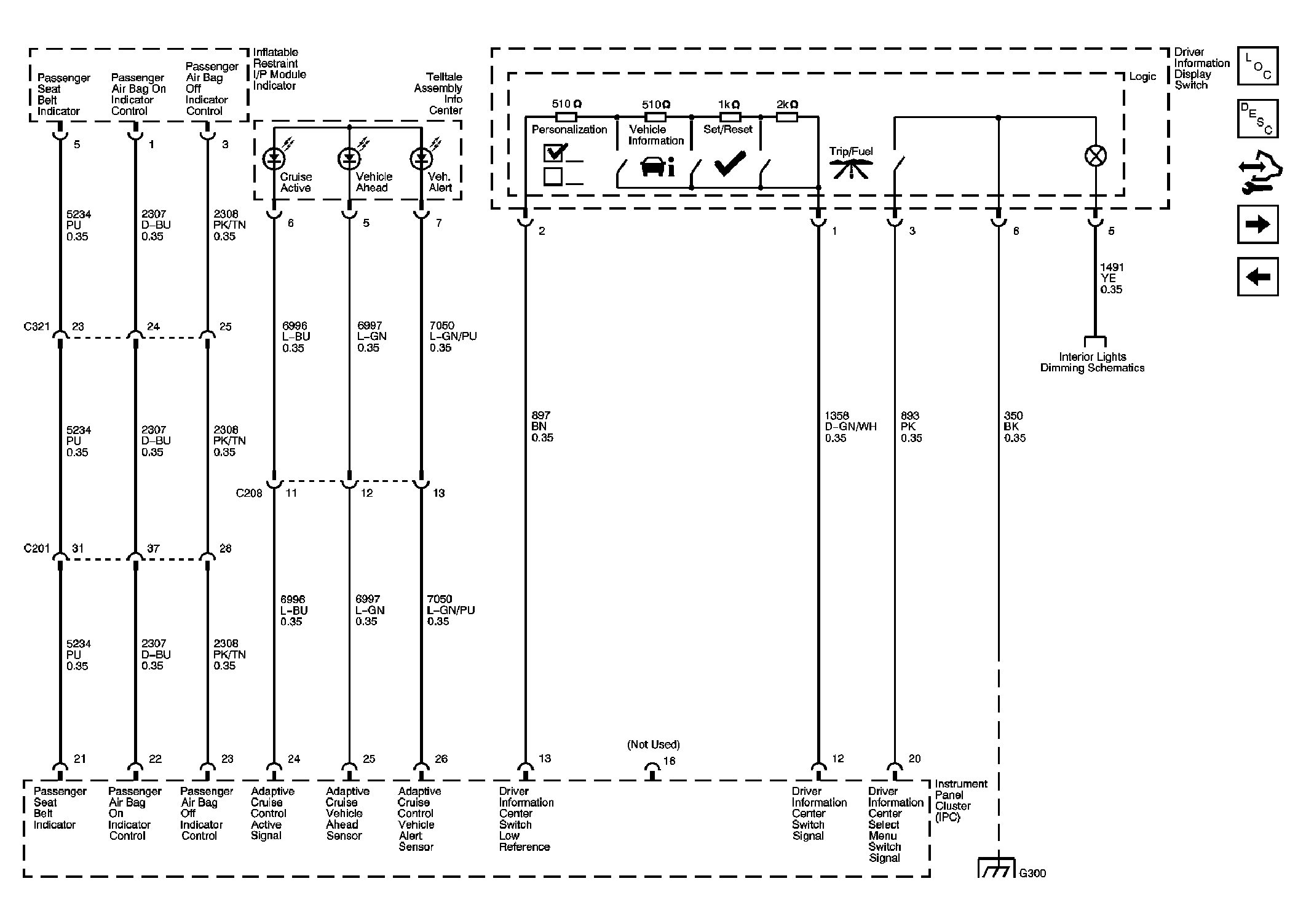

Fig 3: Inflatable Restraint I/P Module Indicator, Telltale Assembly Info Center, Driver Information Display Schematics
