Engine Oil Pressure (EOP) Switch

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

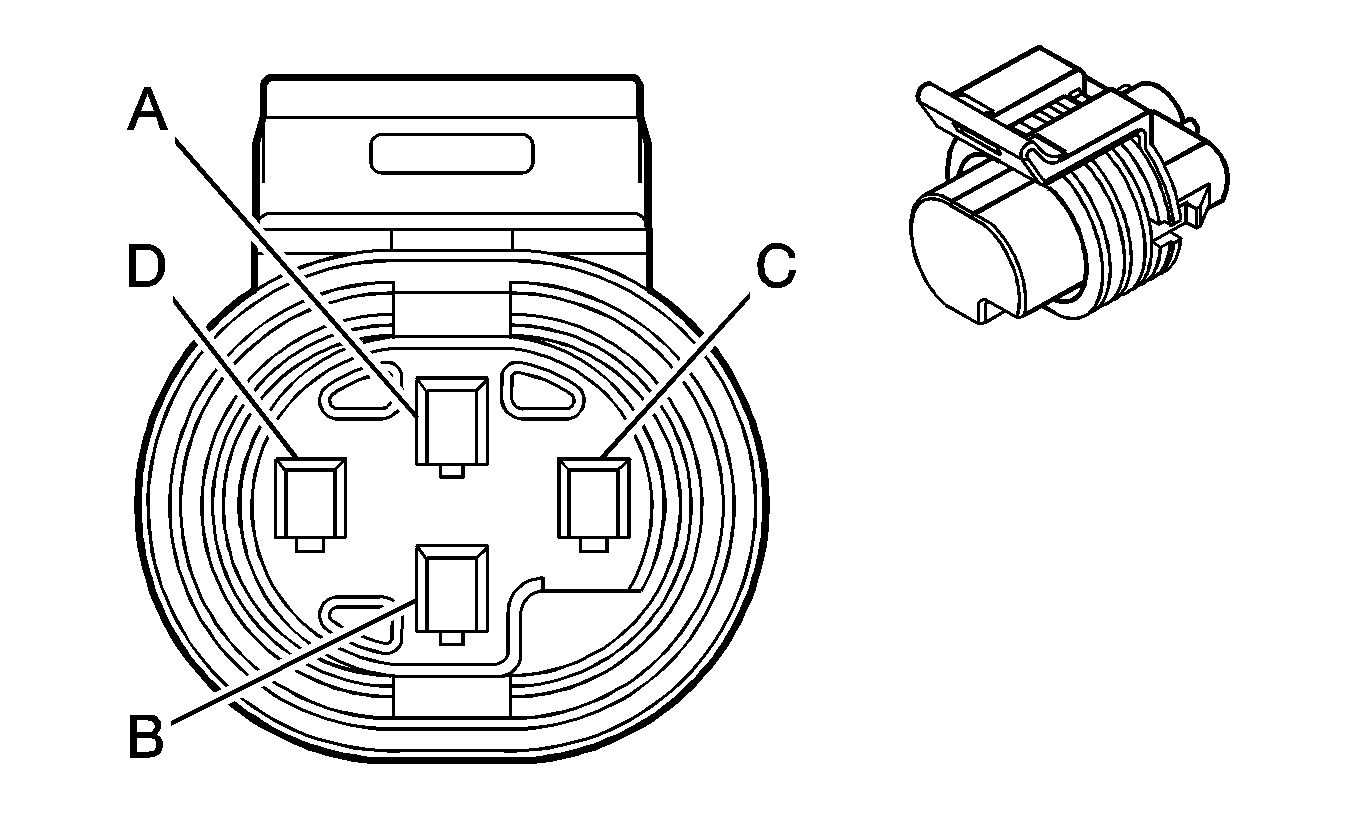

Fig 1: Engine Oil Pressure (EOP) Switch Connector End View
G00455560Courtesy of GENERAL MOTORS CORP.
Engine Oil Pressure (EOP) Switch Connector Parts Information

Connector Part Information
  • OEM: 12065298
  • Service: 12085539
  • Description: 4-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Pins: A, B
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
Engine Oil Pressure (EOP) Switch Connector Terminal Identification

Pin Wire Color Circuit No. Function
A YE/D-GN 231 Oil Pressure Switch Signal
B BK/WH 1551 Ground
C-D - - Not Used
