Displays and Gages Component Views
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

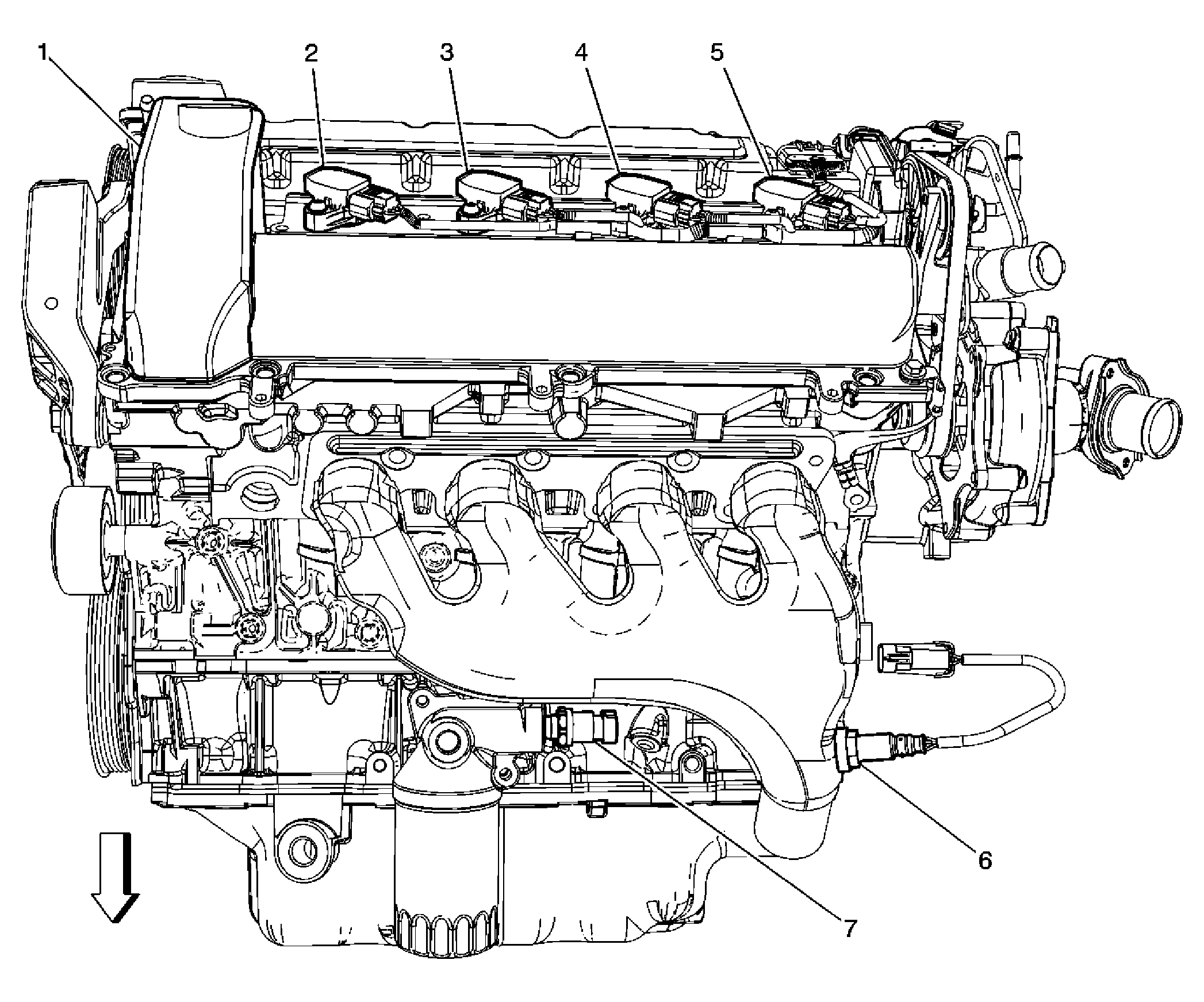

| Callout | Component Name |
|---|---|
| 1 | Valve Cover |
| 2 | Ignition Coil/Module 2 |
| 3 | Ignition Coil/Module 4 |
| 4 | Ignition Coil/Module 6 |
| 5 | Ignition Coil/Module 8 |
| 6 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 |
| 7 | Engine Oil Pressure (EOP) Switch |
| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Traction Control Switch (AQ9) |
| 3 | Ignition Lock Cylinder Solenoid (AQ9) |
| 4 | Ignition Key Alarm Switch |
| 5 | Theft Deterrent Module (TDM) |
| 6 | Ignition Switch |
| 7 | Inflatable Restraint Steering Wheel Module Coil |
| 8 | Steering Angle Sensor (JL4) |
| 9 | Telescoping Actuator (N37) |
| 10 | Tilt Actuator (N37) |
| 11 | Tilt/Telescope Switch (N37) |
| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster (IPC) |
| 2 | Hazard Switch |
| 3 | Sunload Twilight System |
| 4 | Speaker - Front Center (U57) |
| 5 | I/P Compartment Switch/Lamp |
| 6 | Valet Switch |
| 7 | Radio/Navigation Unit (U3Q) |
| 8 | Auxilary Power Outlet (AV8-DT4), Cigar Lighter (AV8+DT4) |
| 9 | Ashtray Lamp |
| 10 | HVAC Control Module |
| 11 | Data Link Connector (DLC) |
| 12 | Air Temperature Sensor - Inside |
| 13 | Rear Compartment Lid Release Switch |
| 14 | Driver Information Center (DIC) Switch |
| 15 | Headlamp Switch |

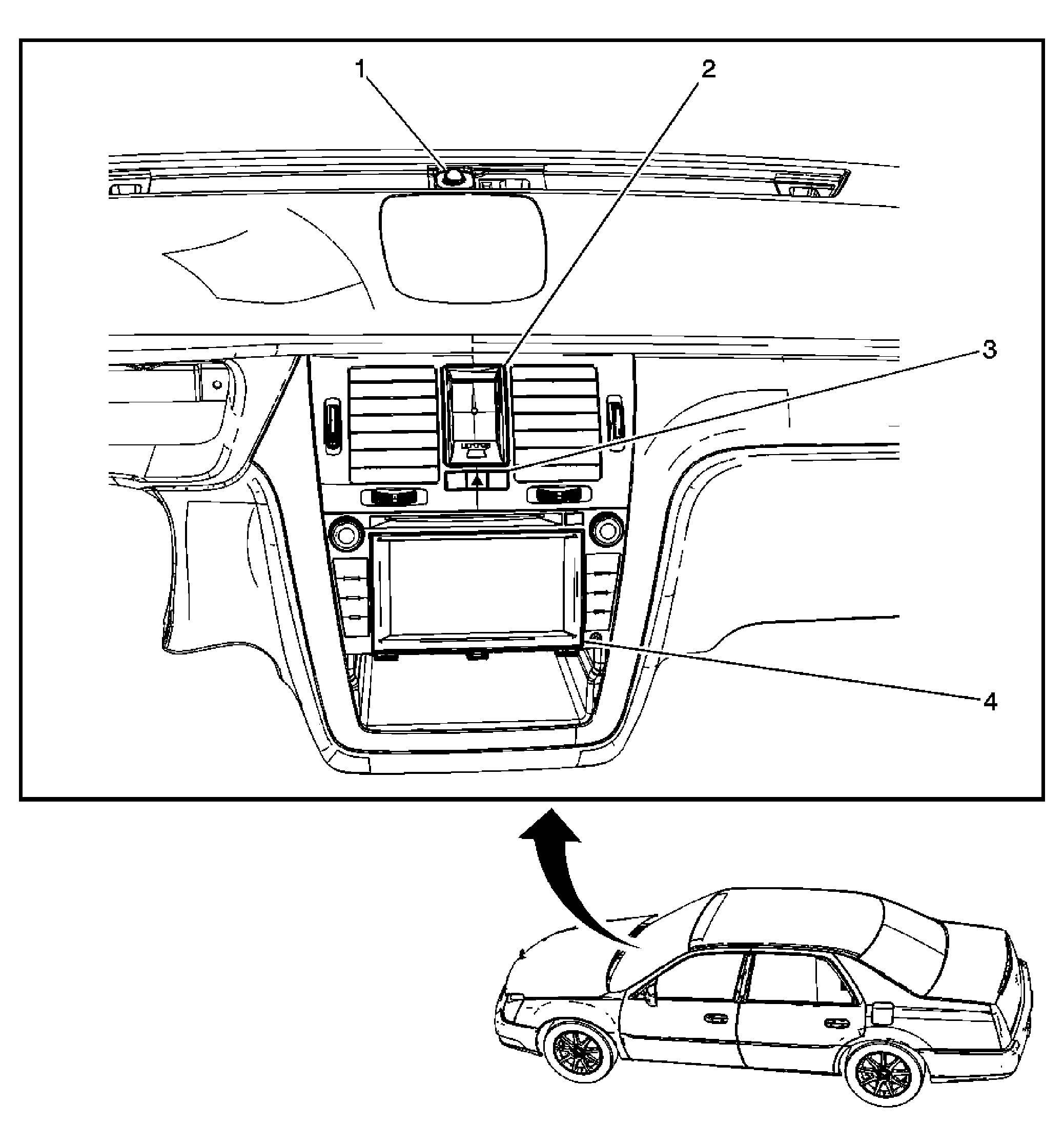

| Callout | Component Name |
|---|---|
| 1 | Sunload Twilight Sensor |
| 2 | Analog Clock |
| 3 | Hazard Switch |
| 4 | Radio/Navigation (U3Q/U3R) |

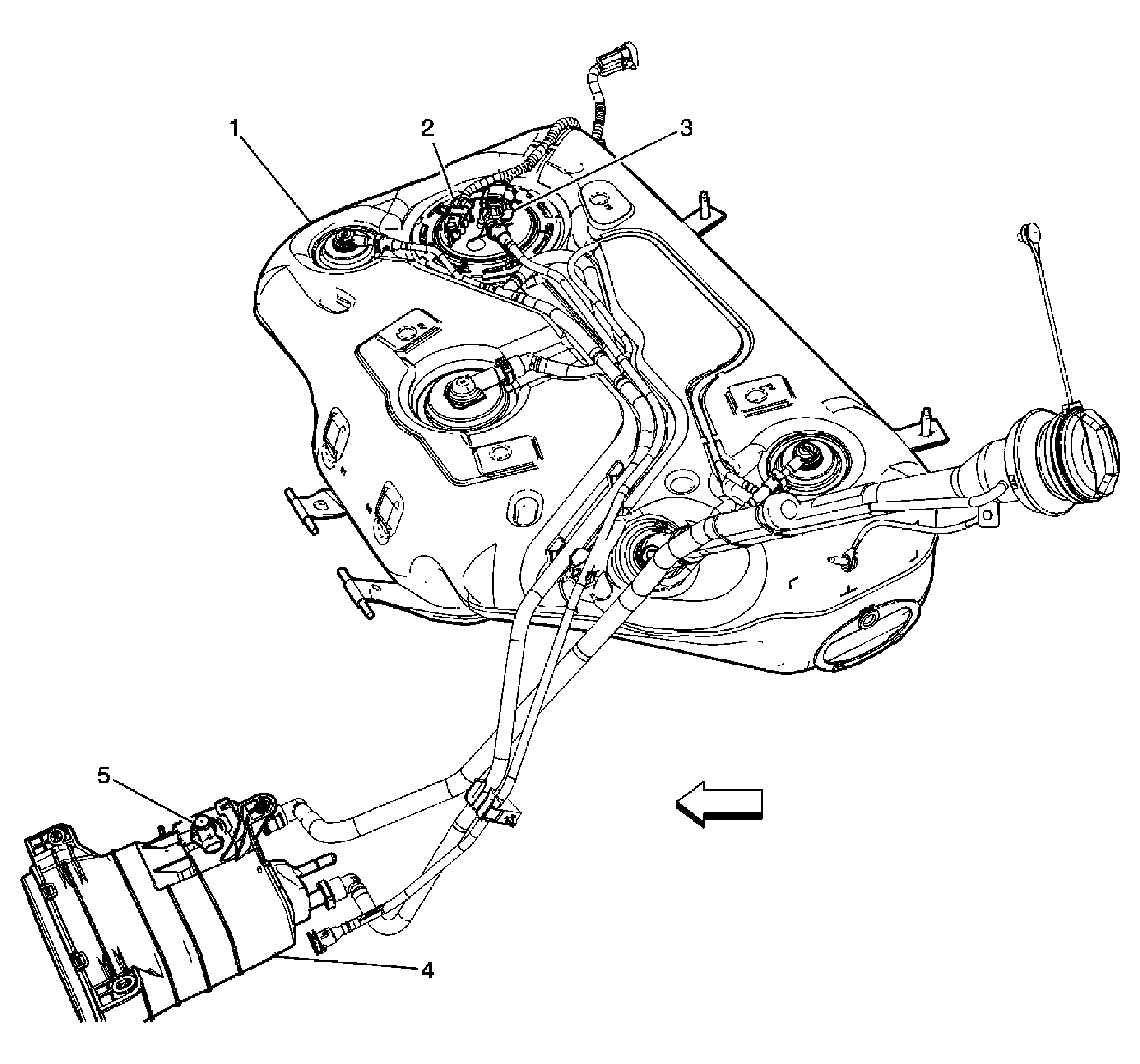

| Callout | Component Name |
|---|---|
| 1 | Fuel Tank |
| 2 | Fuel Pump and Sender Assembly |
| 3 | Fuel Sender Connector |
| 4 | Evaporative Emission (EVAP) Canister |
| 5 | Evaporative Emission (EVAP) Canister Vent Solenoid Valve |
