Transfer Case Control Schematics

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

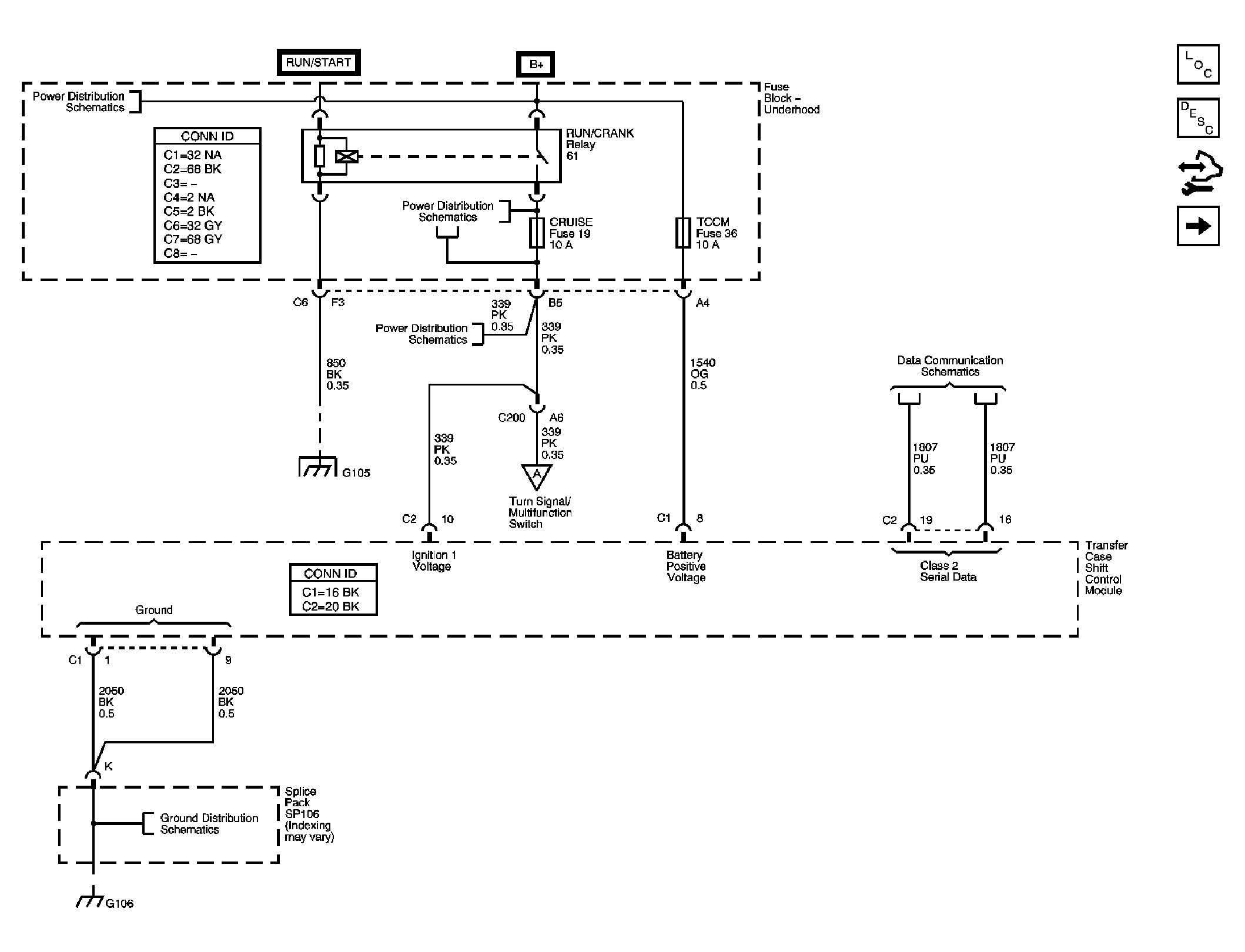

Fig 1: Power, Ground, and DLC

Courtesy of GENERAL MOTORS CORP.

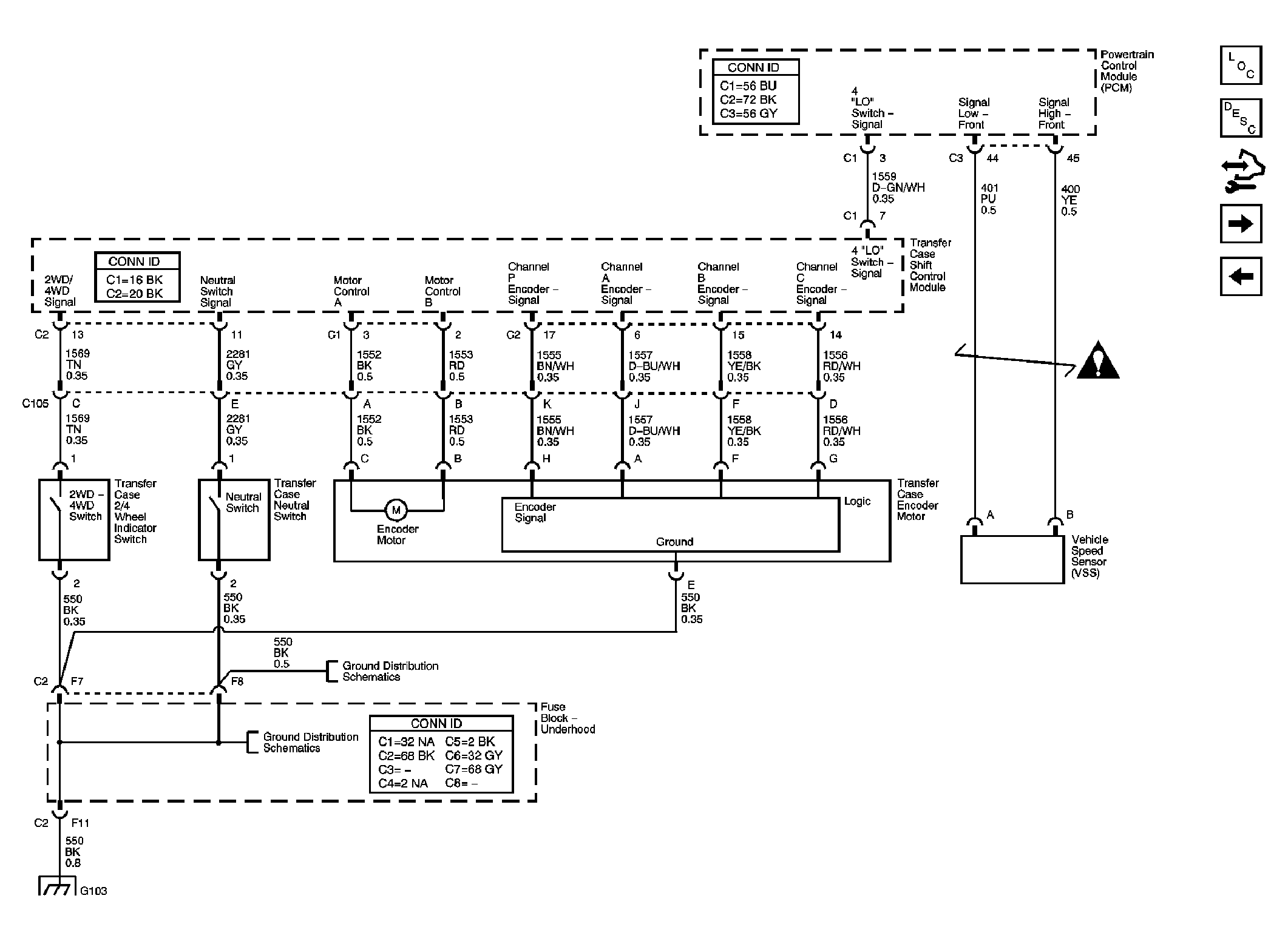

Fig 2: Transfer Case Encoder Motor

Courtesy of GENERAL MOTORS CORP.

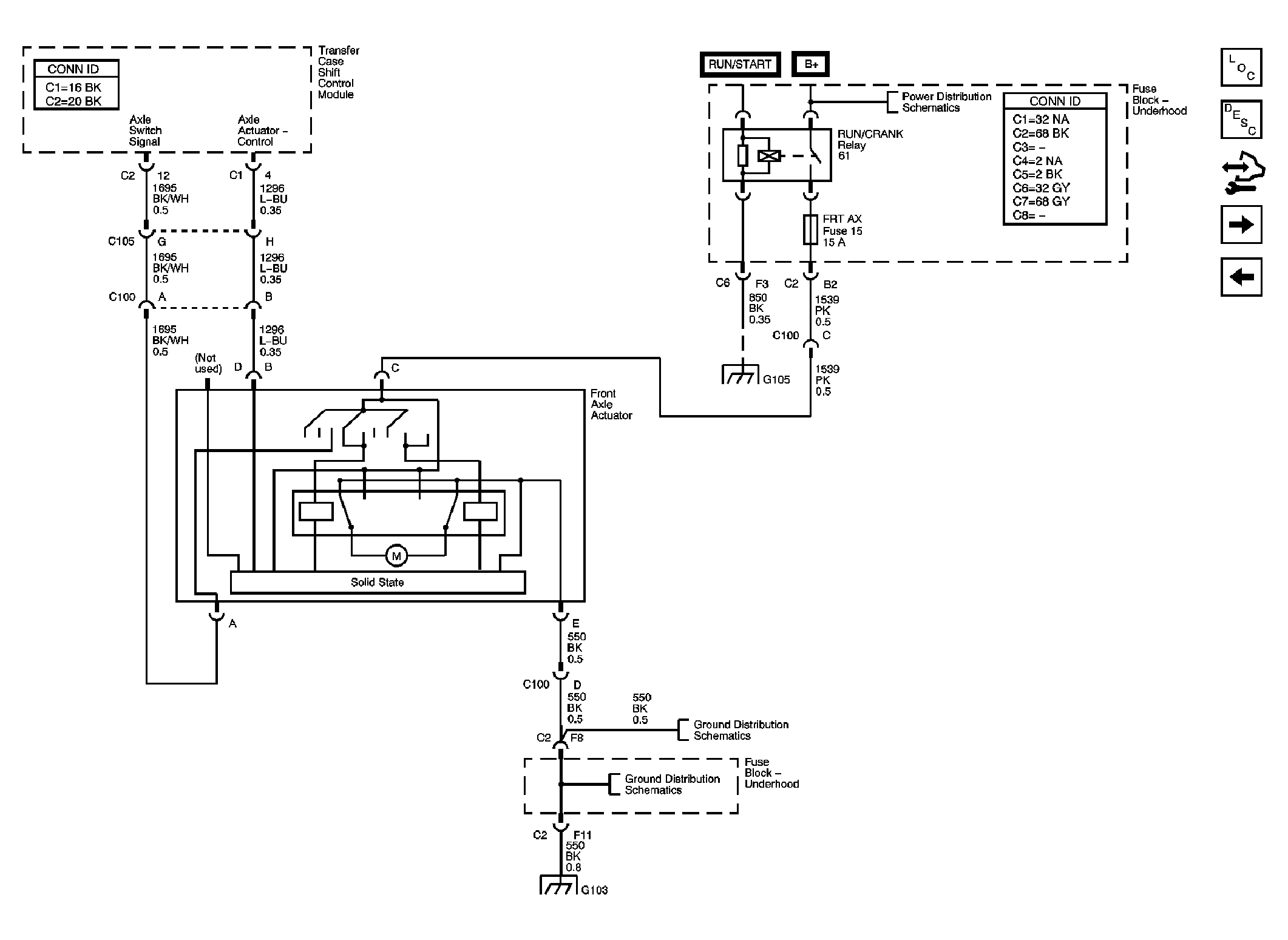

Fig 3: Front Axle Actuator

Courtesy of GENERAL MOTORS CORP.

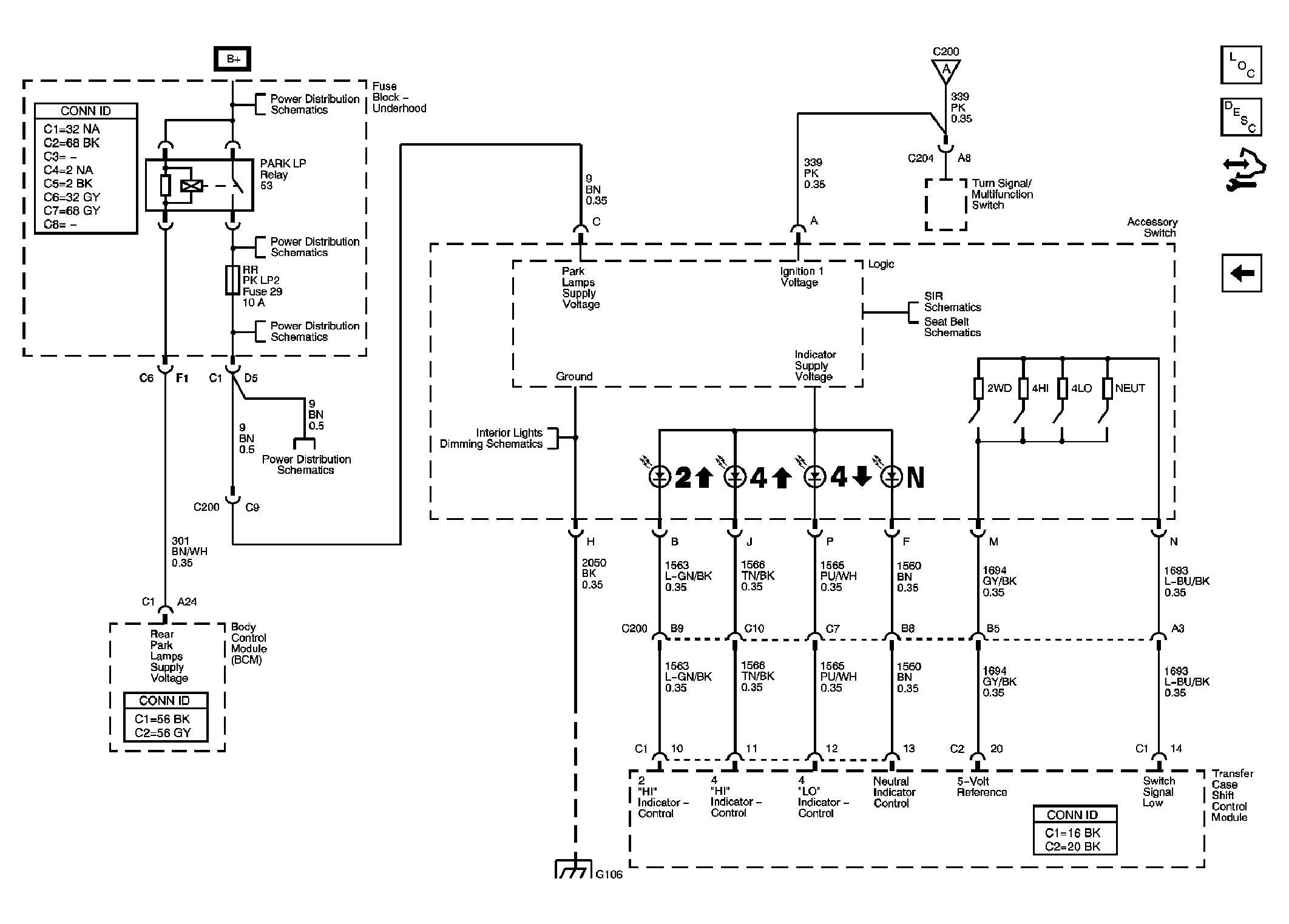

Fig 4: Shift Control Switch Inputs

Courtesy of GENERAL MOTORS CORP.
