Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

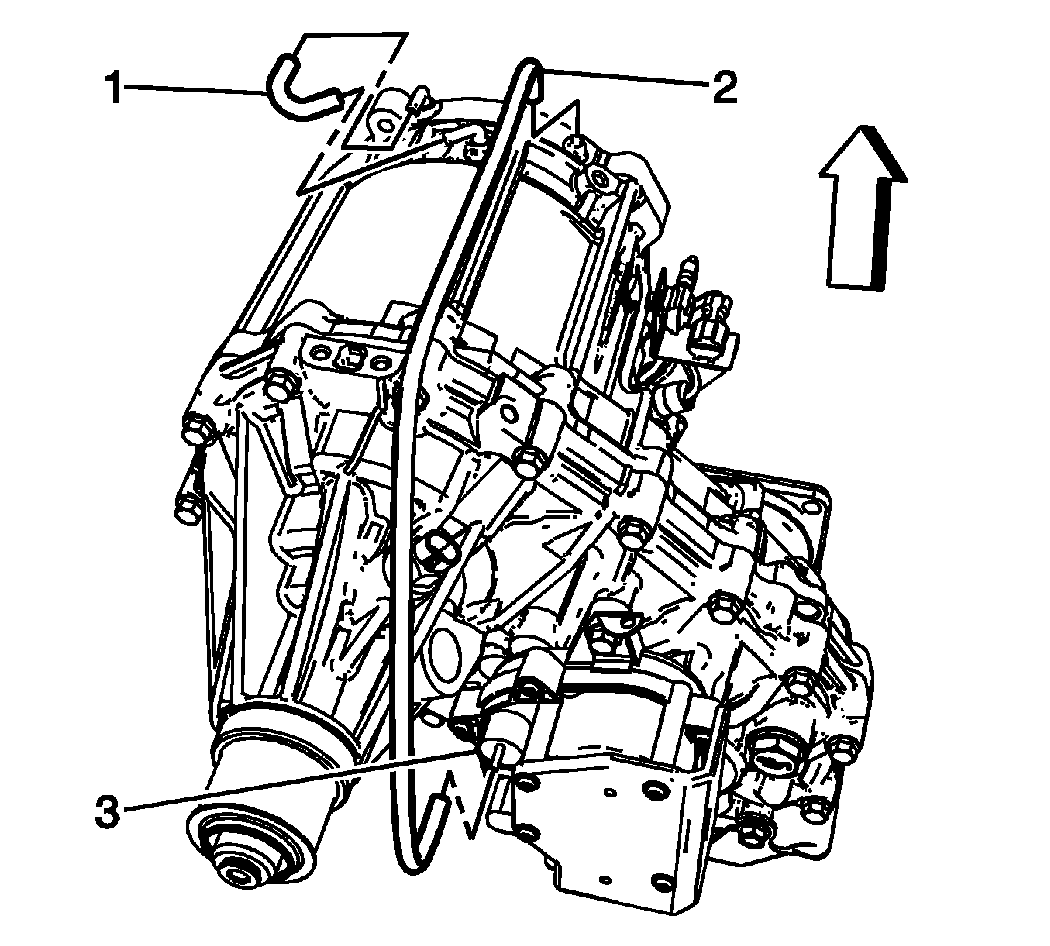

    Fig 1: View Of Transfer Case Hoses & Encoder Motor
    GM1313607Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the vent hoses are free of kinks and routed clear of sharp objects.
  1. Connect the transfer case breather hose (1) to the transfer case vent pipes.
  2. Connect the transfer case vent hose (2) to the following:
    • The transfer case vent pipe
    • The encoder motor (3)
  3. Lower the vehicle.
