Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    2. Fig 1: View Of Transfer Case & Components
    GM1313605Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector (3) from the transfer case speed sensor (2).

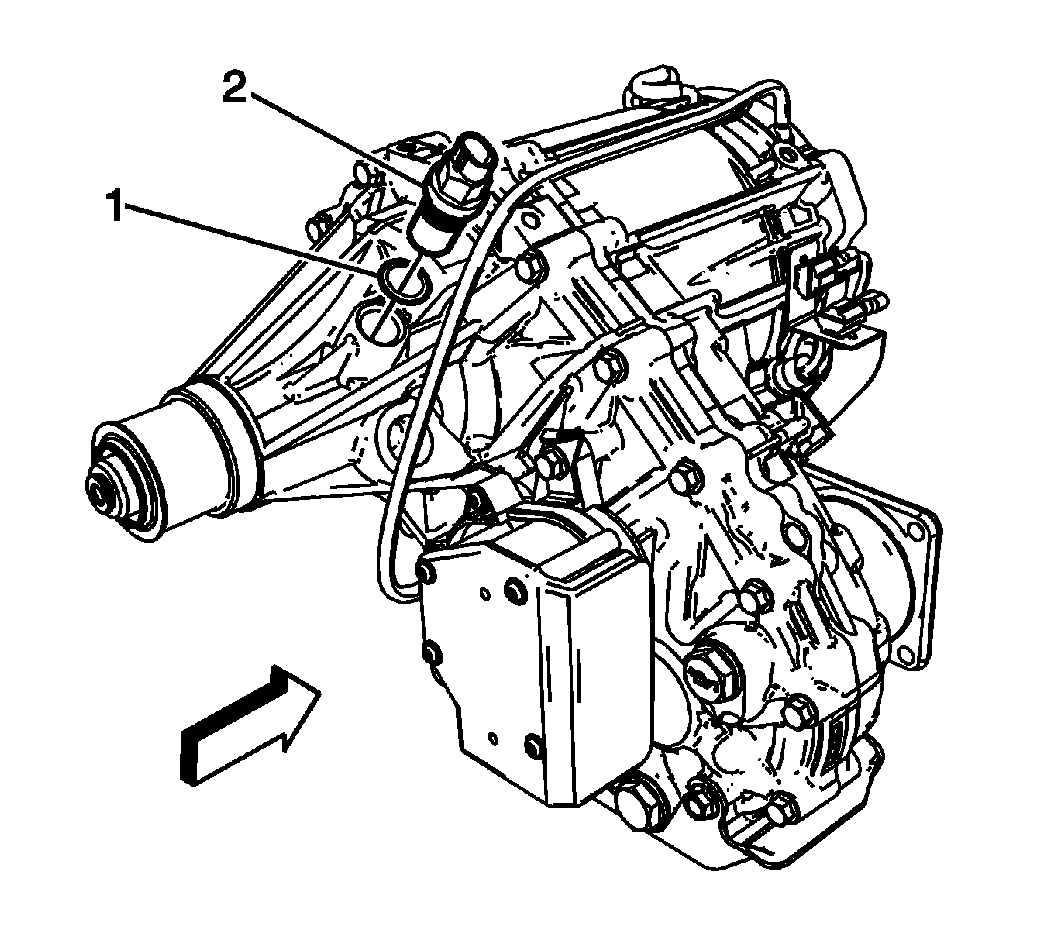

    3. Fig 2: View Of Transfer Case Speed Sensor
    GM1313609Courtesy of GENERAL MOTORS CORP.
  3. Remove the transfer case speed sensor (2) and O-ring seal (1) from the transfer case.
  4. Inspect the O-ring seal (1) for wear.

    Replace if necessary.
