Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

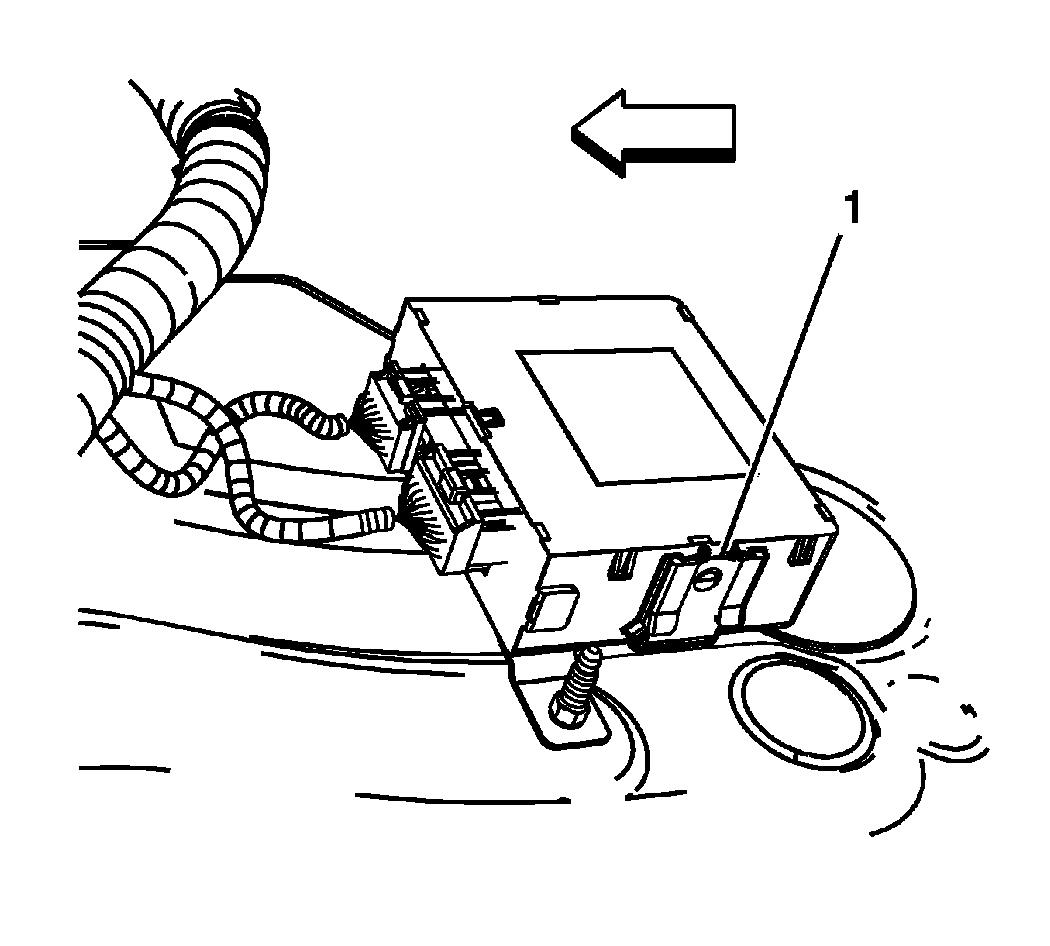

    Fig 1: Transfer Case Shift Control Module Component View
    GM1346474Courtesy of GENERAL MOTORS CORP.
  1. If replacing the bracket, install the bracket to the floor panel.
    2. NOTE: Refer to Fastener Notice .
  2. Install the 2 fasteners retaining the bracket to the floor panel.

    Tighten:  Tighten the fasteners to 9 N.m (80 lb in).

  3. Position the TCCM to the bracket.
  4. Connect the electrical connectors.
  5. Install the TCCM to the bracket, ensuring the retaining tabs (1) are fully engaged.
  6. Install the left center pillar. Refer to Center Pillar Lower Trim Panel Replacement .
  7. Install the left hinge pillar. Refer to Body Hinge Pillar Trim Panel Replacement - Left Side .
  8. Install the left front sill plate. Refer to Front Side Door Sill Plate Replacement .
  9. Install the drivers bucket seat or split bench seat. Refer to Front Seat Replacement - Bucket or Seat Replacement - Split Bench .
  10. Refer to Control Module References for replacement and setup information.
