Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

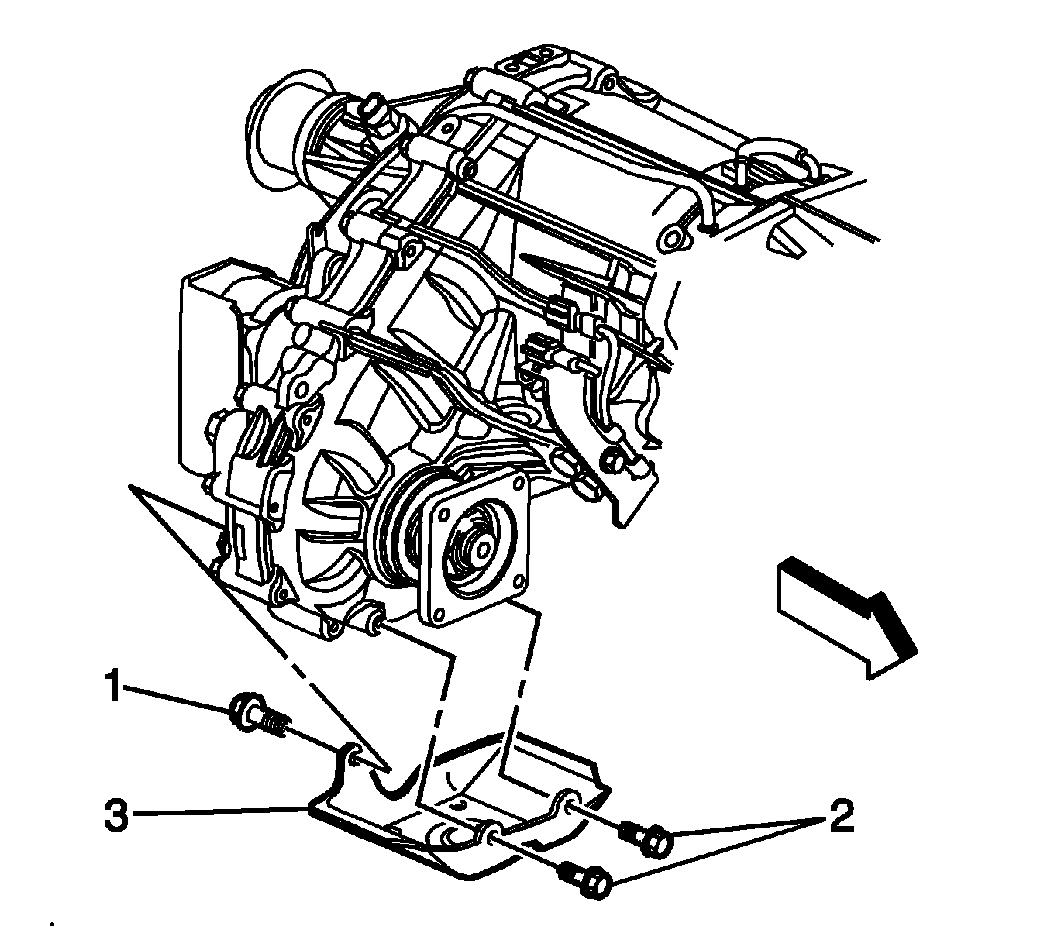

    Fig 1: View Of Transfer Case Shield
    GM1313601Courtesy of GENERAL MOTORS CORP.
  1. Position the transfer case shield (3) to the transfer case and bolt (1).
    2. NOTE: Refer to Fastener Notice .
  2. Install the transfer case shield bolts (2).

    Tighten:  Tighten the transfer case shield bolts to 20 N.m (15 lb ft).

  3. Lower the vehicle.
