Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    2. Fig 1: View Of Transfer Case Electrical Connectors
    GM1313610Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the brown engine wiring harness electrical connector (1) from the brown NEUTRAL switch electrical connector (6).

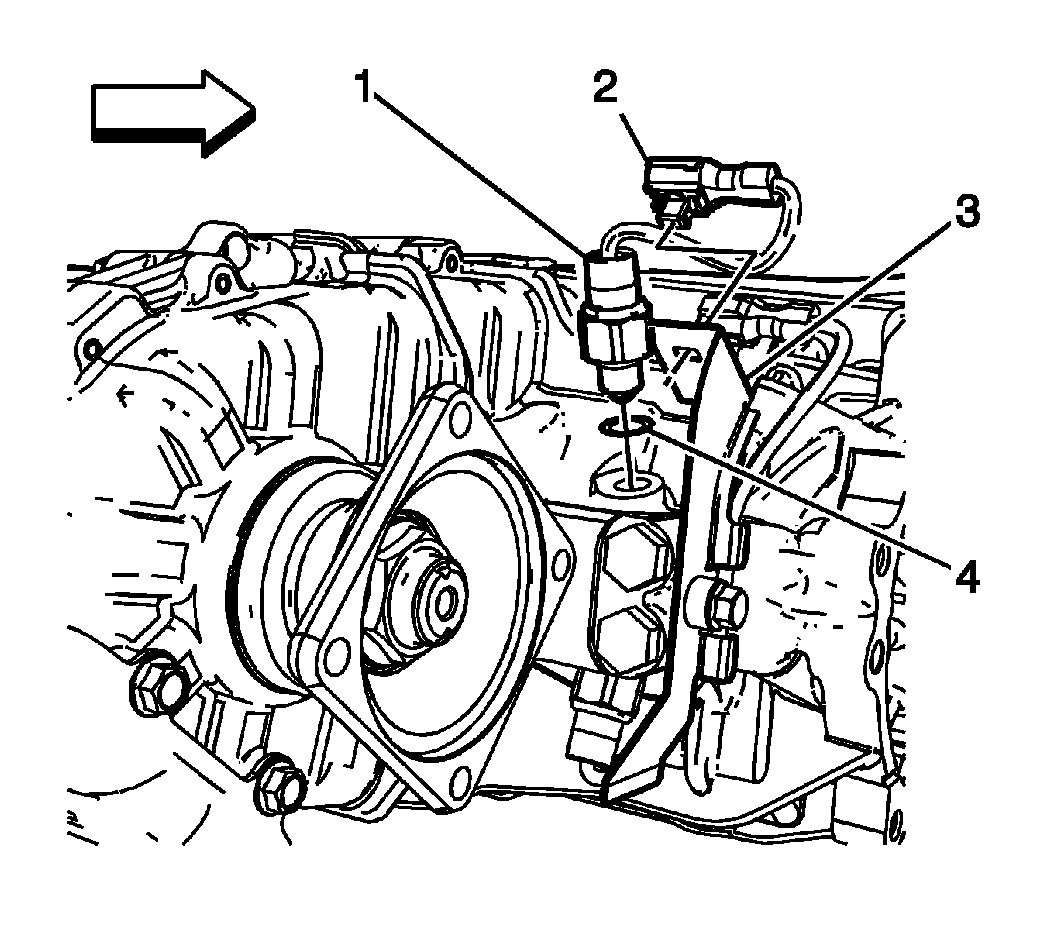

    3. Fig 2: View Of Transfer Case NEUTRAL Switch & Components
    GM1313612Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the brown NEUTRAL switch electrical connector (2) from the bracket (3).
  4. Remove the transfer case NEUTRAL switch (1) and gasket (4) from the transfer case.
