Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

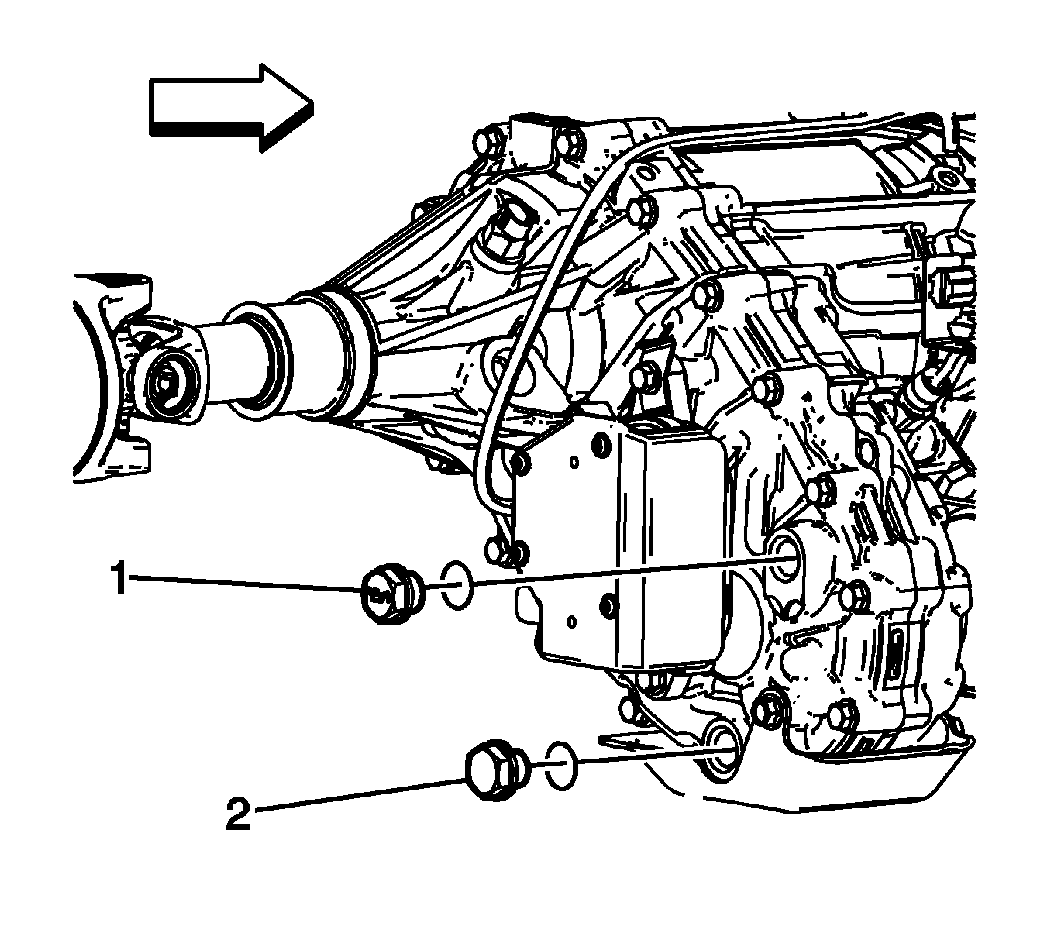

    Fig 1: View Of Transfer Case Fluid Fill And Drain Plugs
    GM1313602Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Component Fastener Tightening Notice .
  1. Install the transfer case fluid drain plug (2) and O-ring gasket.

    Tighten:  Tighten the drain plug to 39 N.m (29 lb ft).

  2. Fill the transfer case to just below the bottom of the fill plug hole with the recommended fluid. Refer to Capacities - Approximate Fluid .
  3. Install the transfer case fluid fill plug (1) and O-ring gasket.

    Tighten:  Tighten the fill plug to 39 N.m (29 lb ft).

  4. Remove the container used to catch the used transfer case fluid from under the vehicle.
  5. Lower the vehicle.
