Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    2. Fig 1: View Of Transfer Case Electrical Connectors
    GM1313610Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the gray engine wiring harness electrical connector (2) from the gray 2/4 indicator switch electrical connector (4).

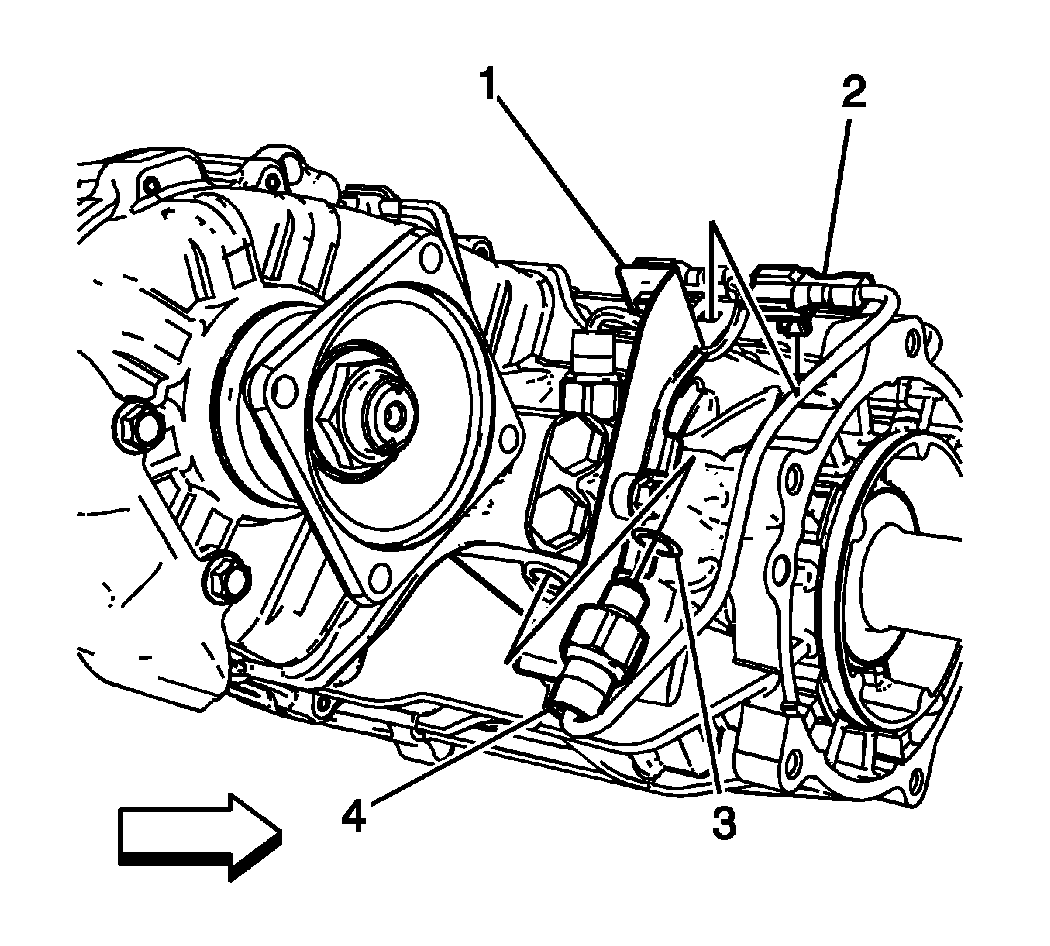

    3. Fig 2: View Of Transfer Case 2/4 Indicator Switch
    GM1313615Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the gray 2/4 indicator switch electrical connector (2) from the bracket (1).
  4. Loosen the switch connector bracket bolt in order to release the 2/4 indicator switch pigtail.
  5. Remove the transfer case 2/4 indicator switch (4) and gasket (3) from the transfer case.
