Transfer Case Shift Control Module

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

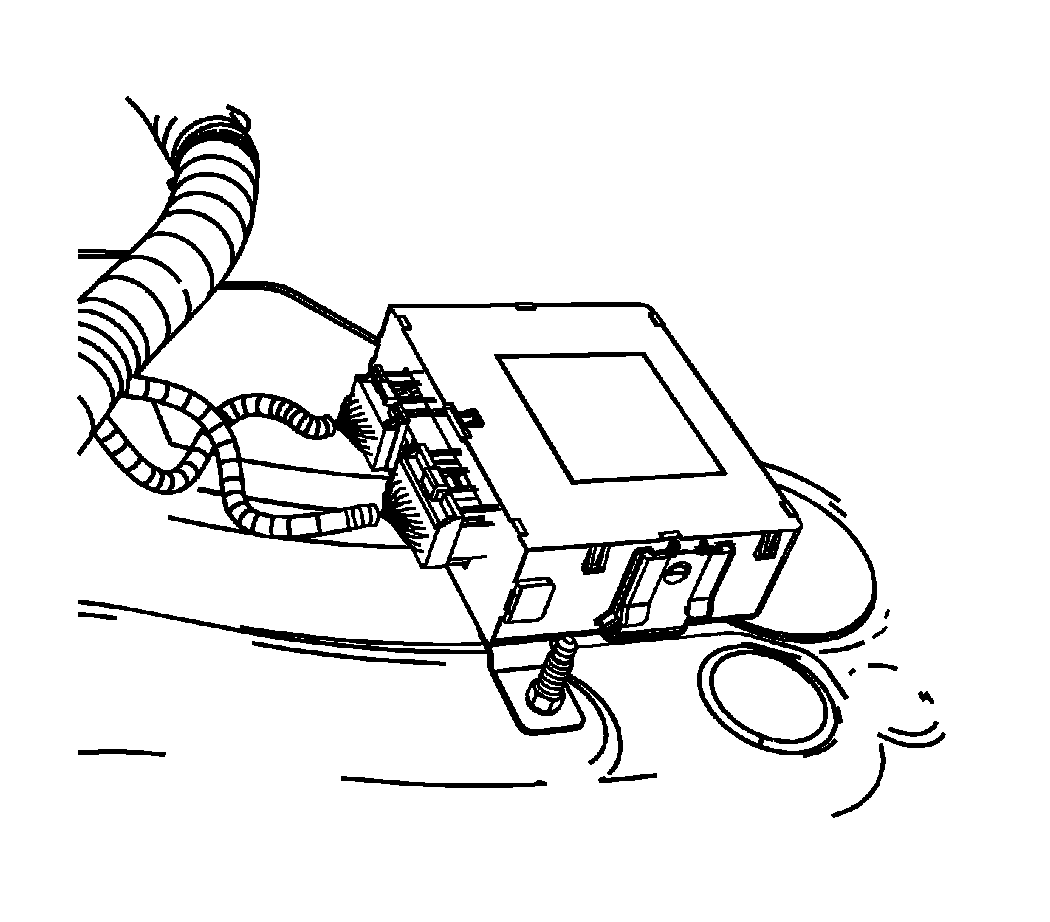

Fig 1: View Of Transfer Case Shift Control Module
GM1385683Courtesy of GENERAL MOTORS CORP.

The transfer case shift control module monitors vehicle speed via the class 2 data bus from the powertrain control module as well as controlling the operation of the transfer case encoder motor assembly.
