Transfer Case Neutral Switch

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

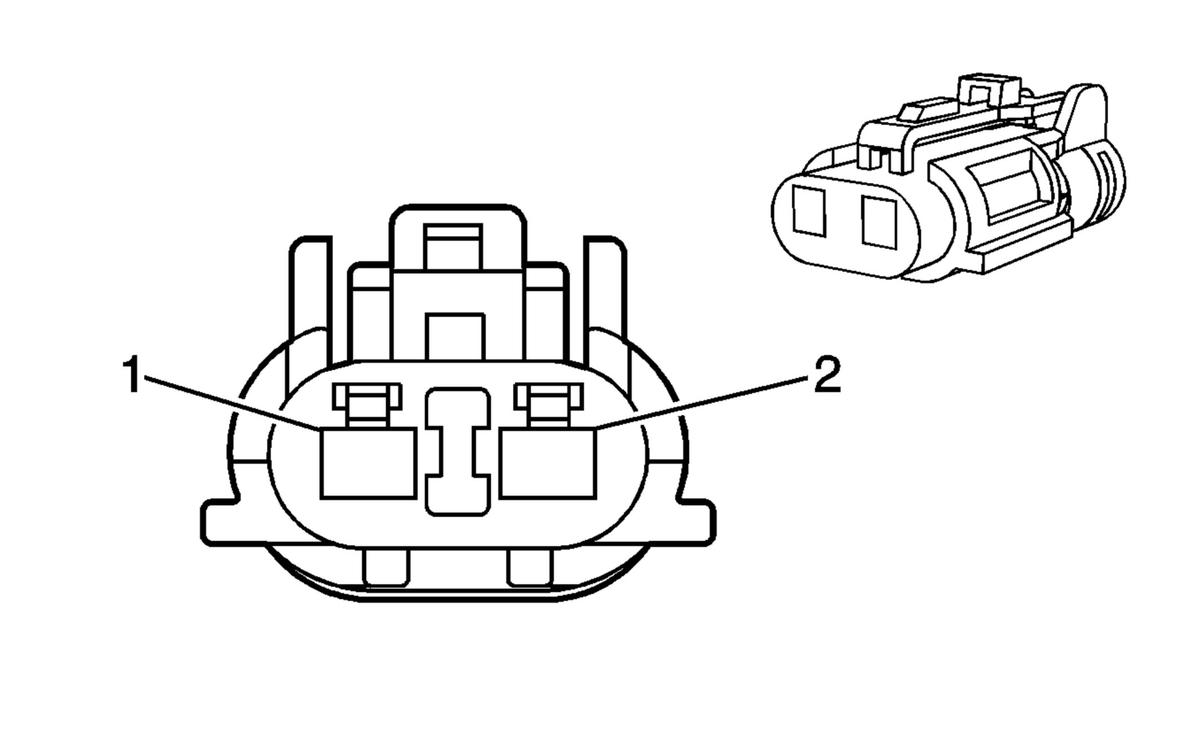

Fig 1: Transfer Case Neutral Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

Transfer Case Neutral Switch Connector & Terminal Parts Information

Connector Part Information

OEM: 10763359
Service: 88987929
Description: 2-Way F SWP 070 Series Sealed (BN)

Terminal Part Information

Terminal/Tray: 7116-1471/12
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-33 (YE)

Transfer Case Neutral Switch Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	GY	2281	Neutral Switch Signal
2	BK	550	Ground
