Transfer Case 2/4 Wheel Indicator Switch

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

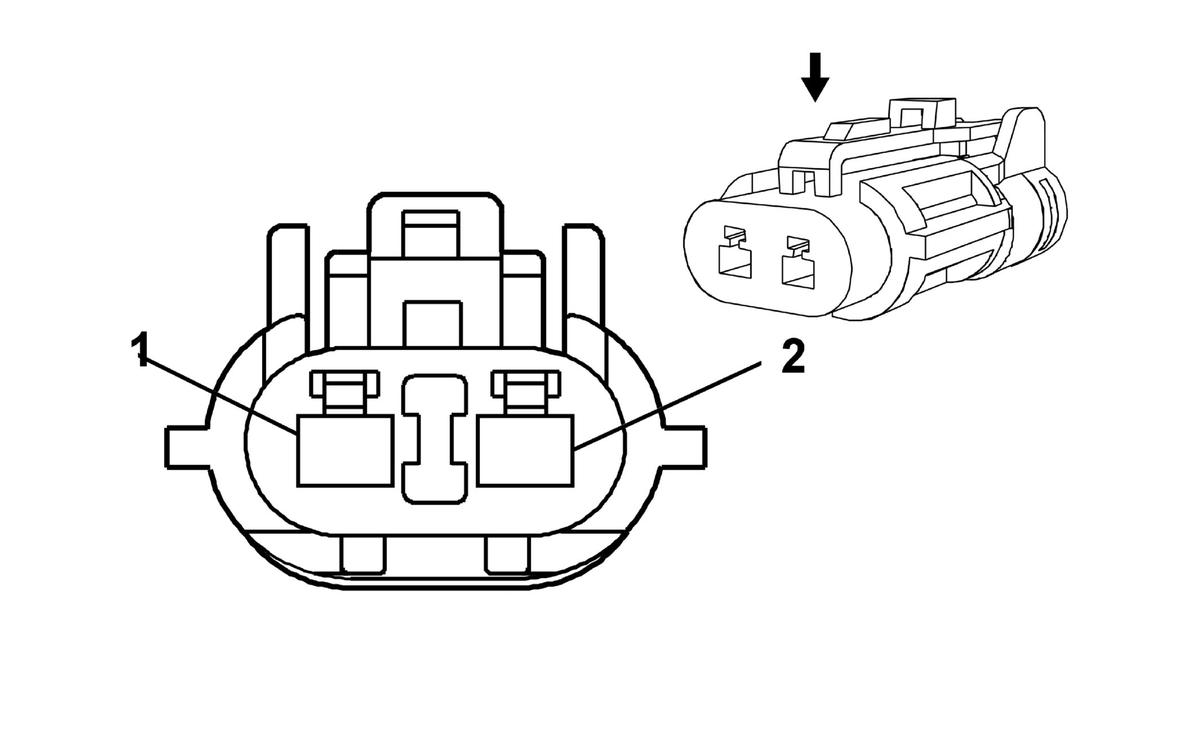

Fig 1: Transfer Case 2/4 Wheel Indicator Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

Transfer Case 2/4 Wheel Indicator Switch Connector & Terminal Parts Information

Connector Part Information

OEM: 15327093
Service: 88987840
Description: 2-Way F 070 SWP Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 7116-1471/12
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-33 (YE)

Transfer Case 2/4 Wheel Indicator Switch Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	TN	1569	2WD/4WD Signal
2	BK	550	Ground
