Transfer Case Control Component Views

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

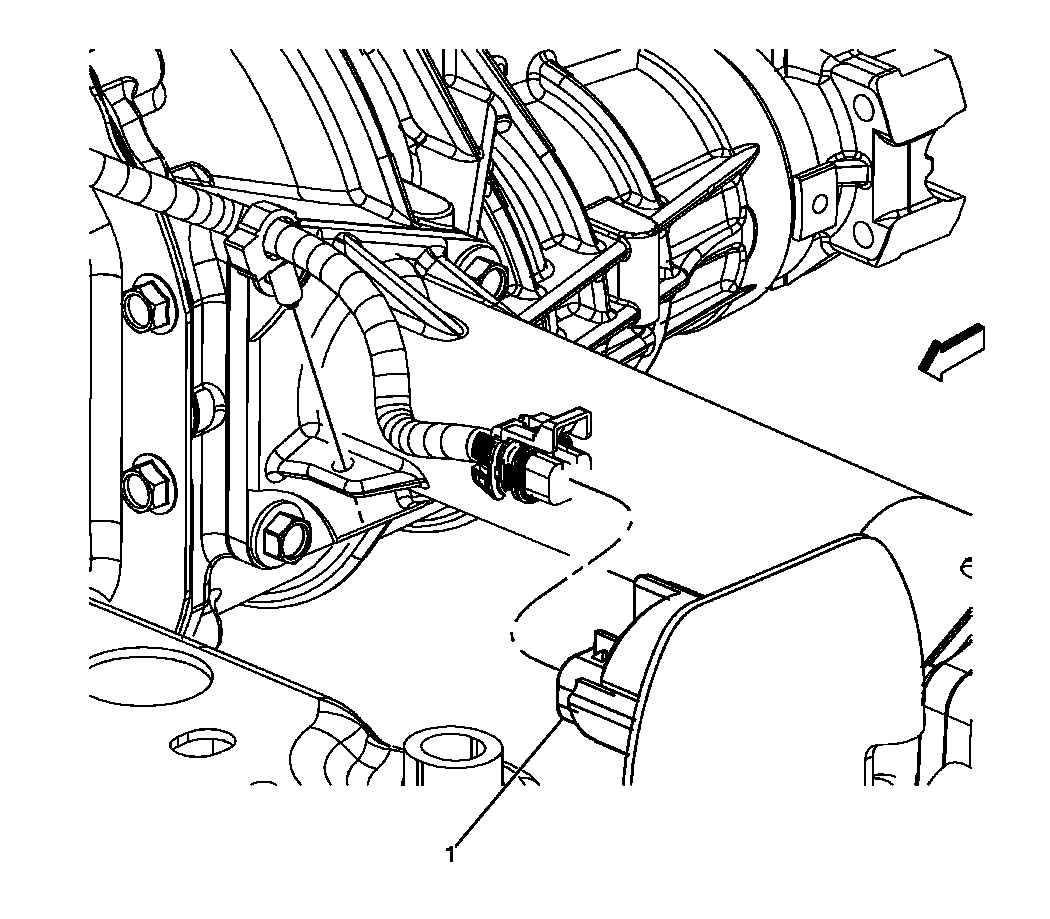

Fig 1: Front Axle Actuator Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Axle Actuator

Fig 2: Center Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Instrument Panel Cluster (IPC)
3	Hazard Switch
4	Accessory Switch
5	Ambient Light Sensor
6	Radio
7	Auxiliary Power Outlet 2
8	Auxiliary Power Outlet 1
9	HVAC Control Module
10	Headlamp and Panel Dimmer Switch

Fig 3: Transfer Case Shift Control Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Module

Fig 4: Transfer Case Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Neutral Position (PNP) Switch (M30)
2	Heated Oxygen Sensor (HO2S) 2
3	Vehicle Speed Sensor (VSS)
4	Transfer Case Neutral Switch (4WD)
5	Transfer Case 2/4 Wheel Indicator Switch (4WD)
6	Transfer Case Encoder Motor (4WD)
7	Evaporative Emission (EVAP) Canister Vent Solenoid
8	Fuel Tank Pressure (FTP) Sensor
9	Fuel Pump and Sender Assembly
10	Fuel Pump
11	Transfer Case
