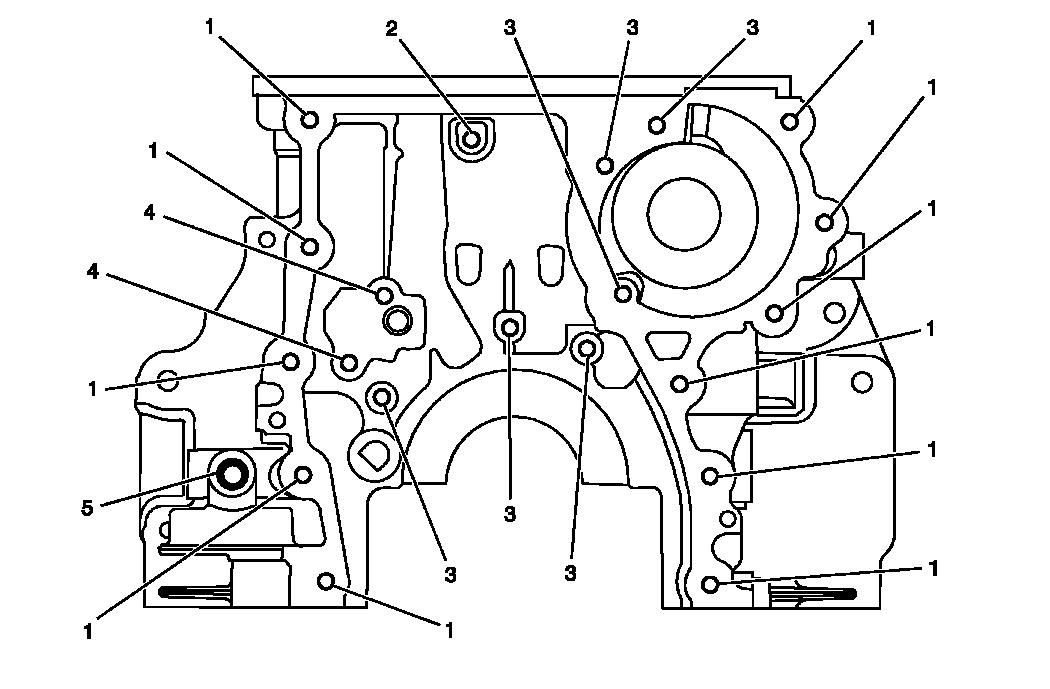

Engine Block - Front View
WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
Engine Block - Front View
| Service Hole Location | Thread Size | Drill | Counterbore Tool | Stop Collar | Tap | Driver | Insert | Drill Depth (Max) | Tap Depth (Min) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| J 42385-400 | mm | (in) | mm | (in) | |||||||
| 1 | M 6 x 1 | 405 | n/a | 407 | 203 | 204 | 205 | 30 | 1.182 | 26 | 1.024 |
| 2 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 18 | 0.709 | 14 | 0.551 |
| 3 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 22 | 0.866 | 18 | 0.709 |
| 4 | M 8 x 1.25 | 206 | 207 | n/a | 208 | 209 | 210 | 23 | 0.906 | 18 | 0.709 |
| 5 | M 16 x 1.5 | 405 | n/a | 407 | 203 | 204 | 205 | 24 | 0.945 | 16 | 0.630 |
