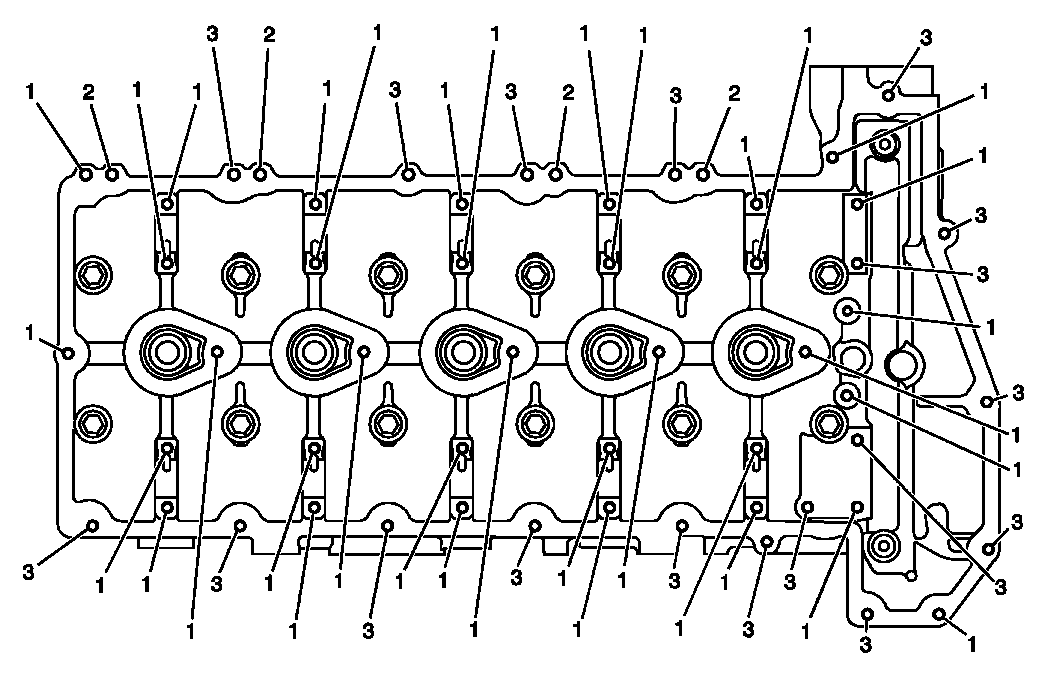

Cylinder Head - Top View
WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
Cylinder Head - Top View
| Service Hole Location | Thread Size | Drill | Counterbore Tool | Stop Collar | Tap | Driver | Insert | Drill Depth (Max) | Tap Depth (Min) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| J 42385-400 | mm | (in) | mm | (in) | |||||||
| 1 | M 6 x 1 | 405 | n/a | 406 | 203 | 204 | 205 | 28 | 1.103 | 24 | 0.945 |
| 2 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | THRU | THRU | ||
| 3 | M 6 x 1 | 201 | 202 | n/a | 203 | 204 | 205 | 22 | 0.866 | 18 | 0.709 |
