Timing Chain Alignment Diagram

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

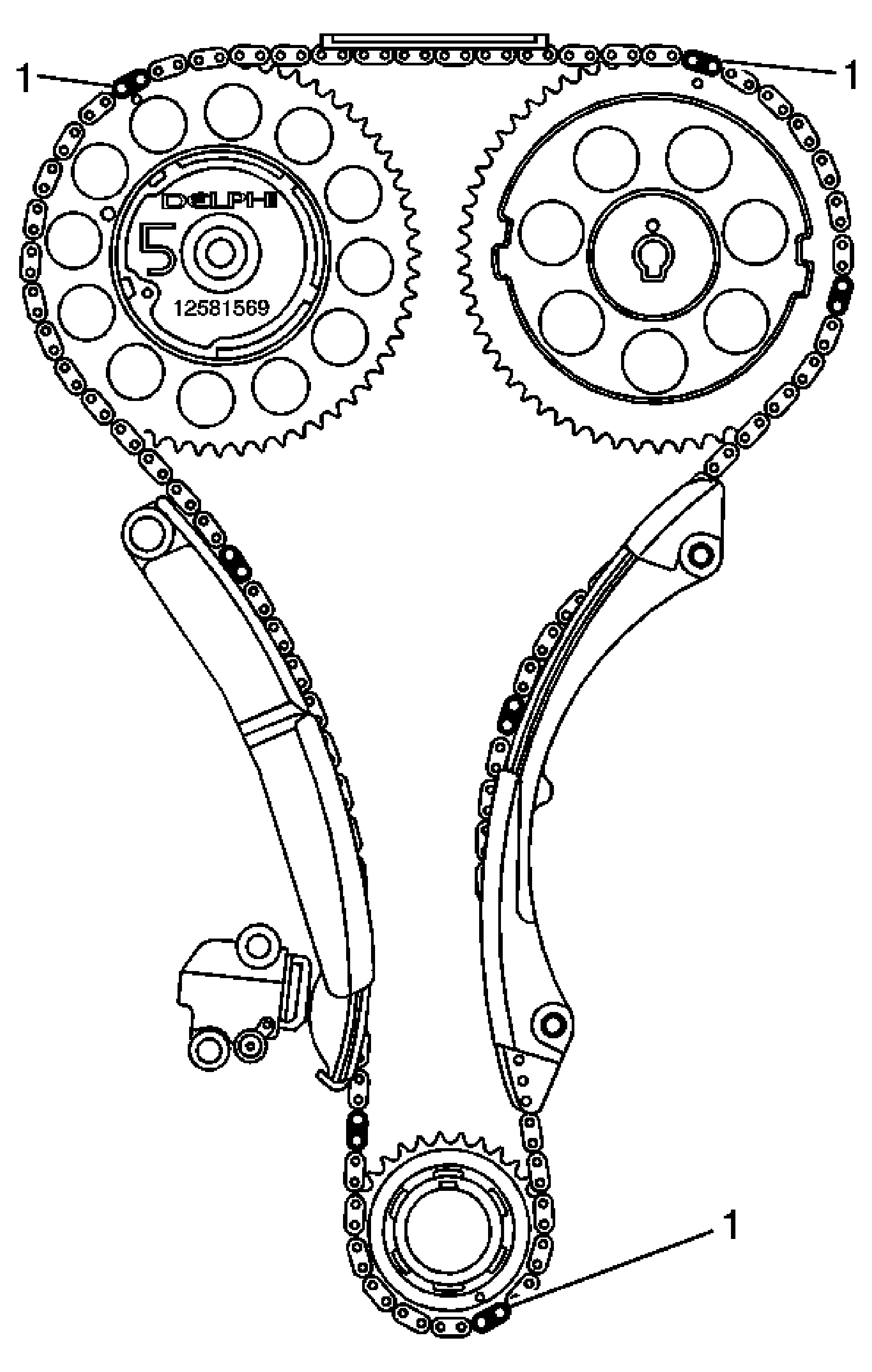

Fig 1: Timing Chain Alignment Diagram
GM1576468Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Timing Marks
1 Timing Marks
1 Timing Marks
