Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

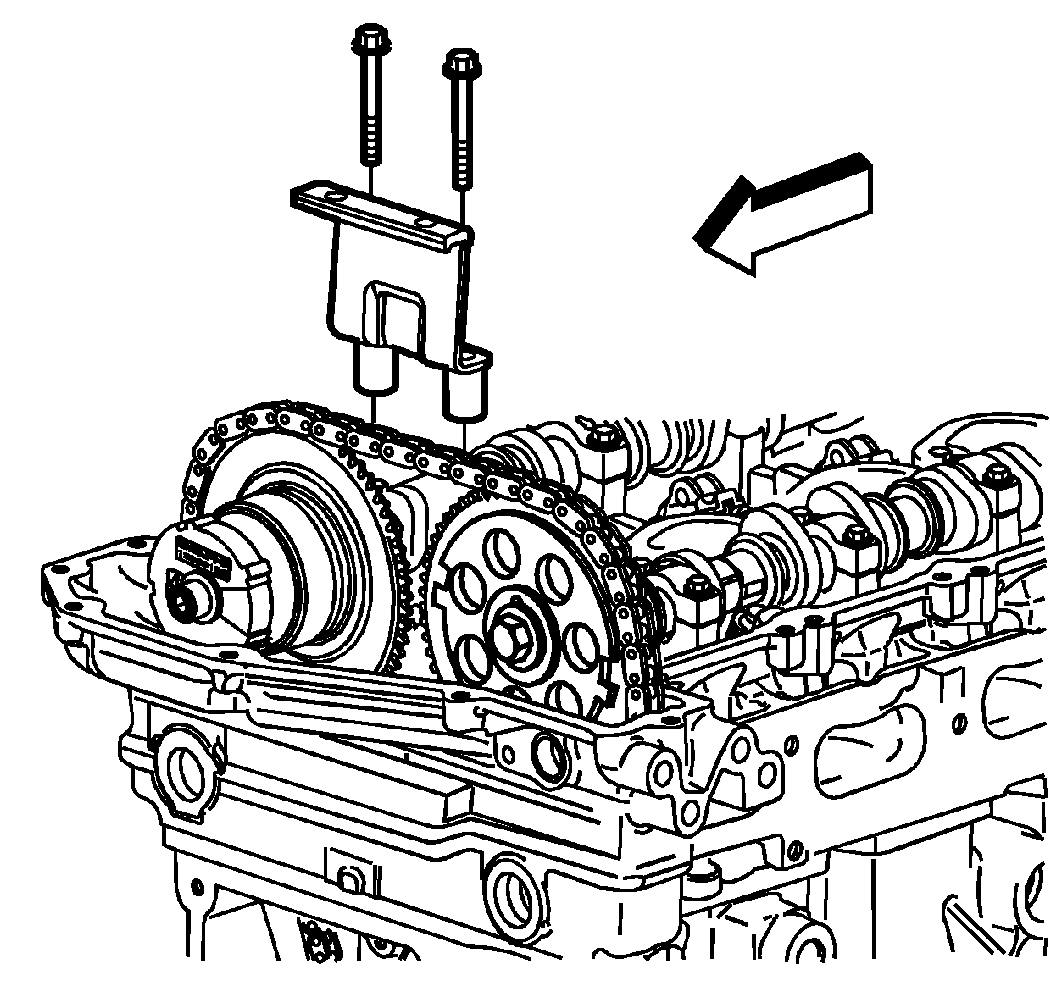

    Fig 1: View Of Upper Timing Chain Guide
    GM953977Courtesy of GENERAL MOTORS CORP.
  1. Remove the camshaft cover. Refer to Camshaft Cover Replacement .
  2. Remove the upper timing chain guide bolts.
  3. Remove the upper timing chain guide from the cylinder head.
