Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position a new oil pump pipe seal to the oil pump pipe screen assembly.

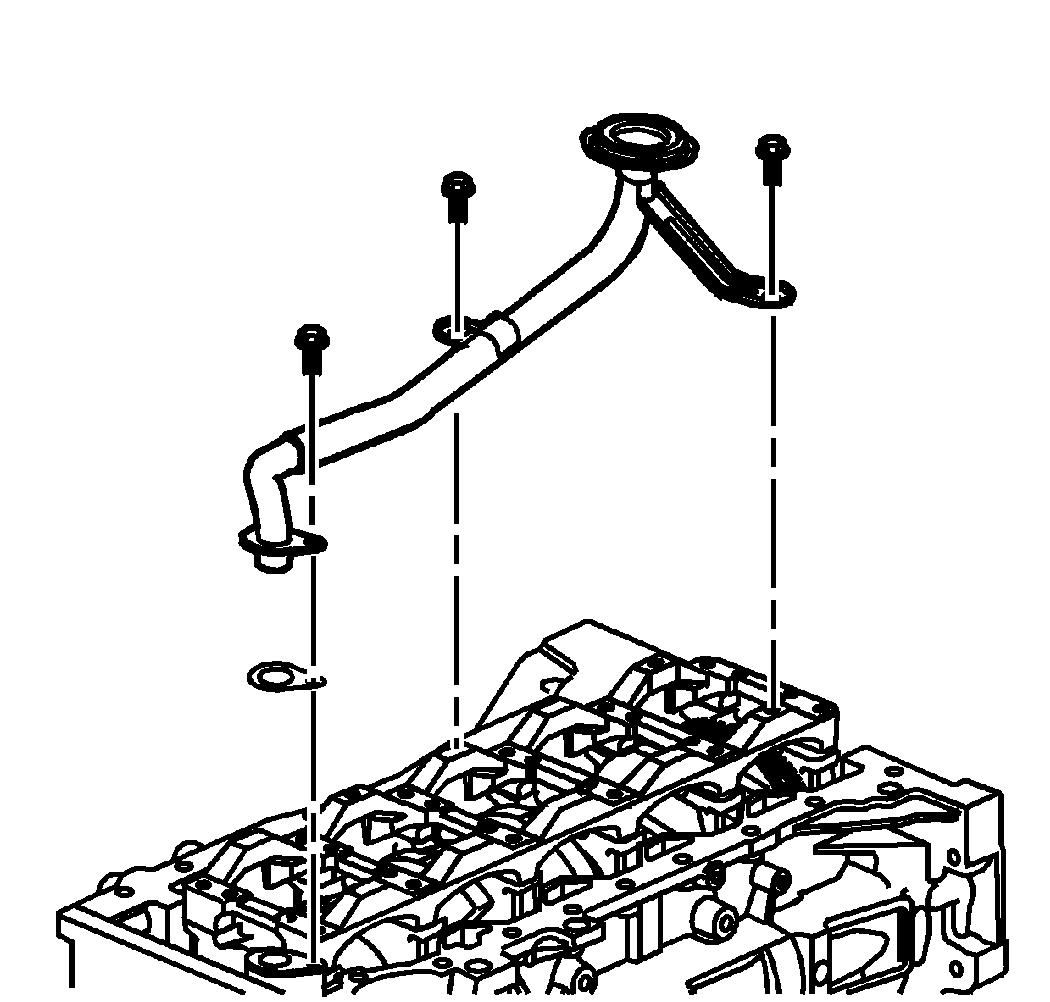

    2. Fig 1: View Of Oil Pump Pipe
    GM858171Courtesy of GENERAL MOTORS CORP.
  2. Position the oil pump pipe screen to the engine.
  3. Apply sealant to the oil pump pipe bolt threads. Refer to Sealers, Adhesives, and Lubricants .
    4. NOTE: Refer to Fastener Notice .
  4. Install the oil pump pipe screen assembly bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  5. Install the oil pan. Refer to Oil Pan Replacement .
