Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

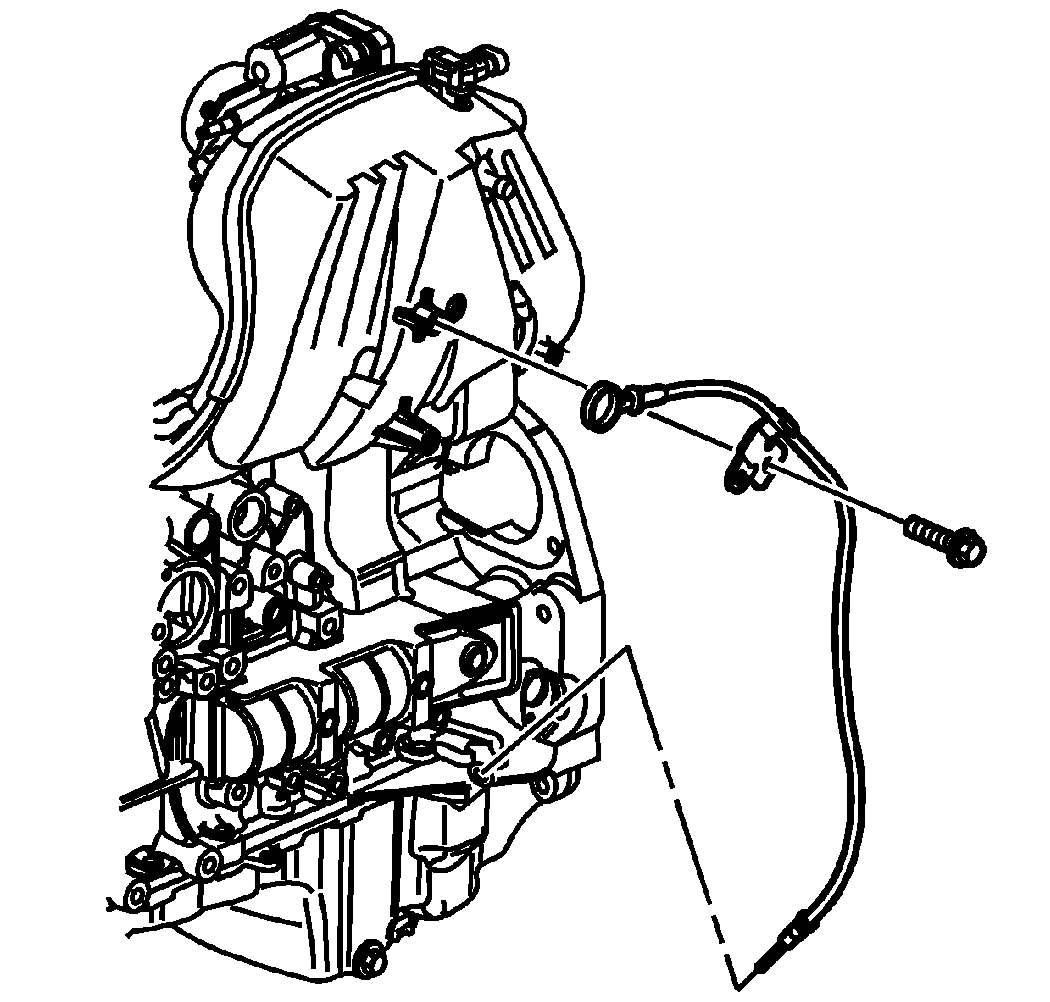

    Fig 1: View Of Oil Level Indicator Tube
    GM953920Courtesy of GENERAL MOTORS CORP.
  1. Lightly lubricate the O-ring seal with clean engine oil.
  2. Install the oil level indicator tube into the engine oil pan.
    3. NOTE: Refer to Fastener Notice .
  3. Install the oil level indicator tube bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  4. Install the oil level indicator into the tube.

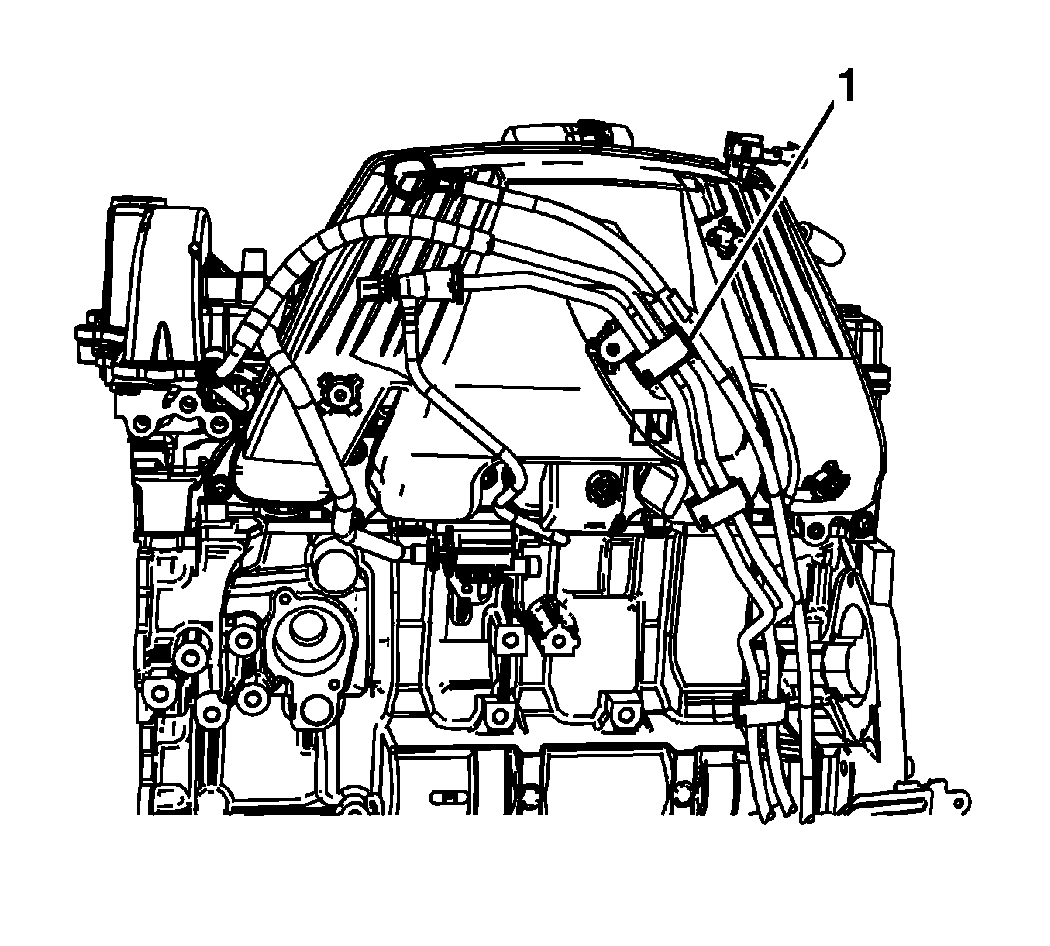

    5. Fig 2: View Of Fuel Line Clip
    GM1765155Courtesy of GENERAL MOTORS CORP.
  5. Install the fuel line clip (1) to the oil level indicator bracket.
