Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Oil Pressure Switch Engine Wiring Harness Electrical Connector
    GM1350707Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the engine wiring harness electrical connector (1) from the oil pressure switch (2).

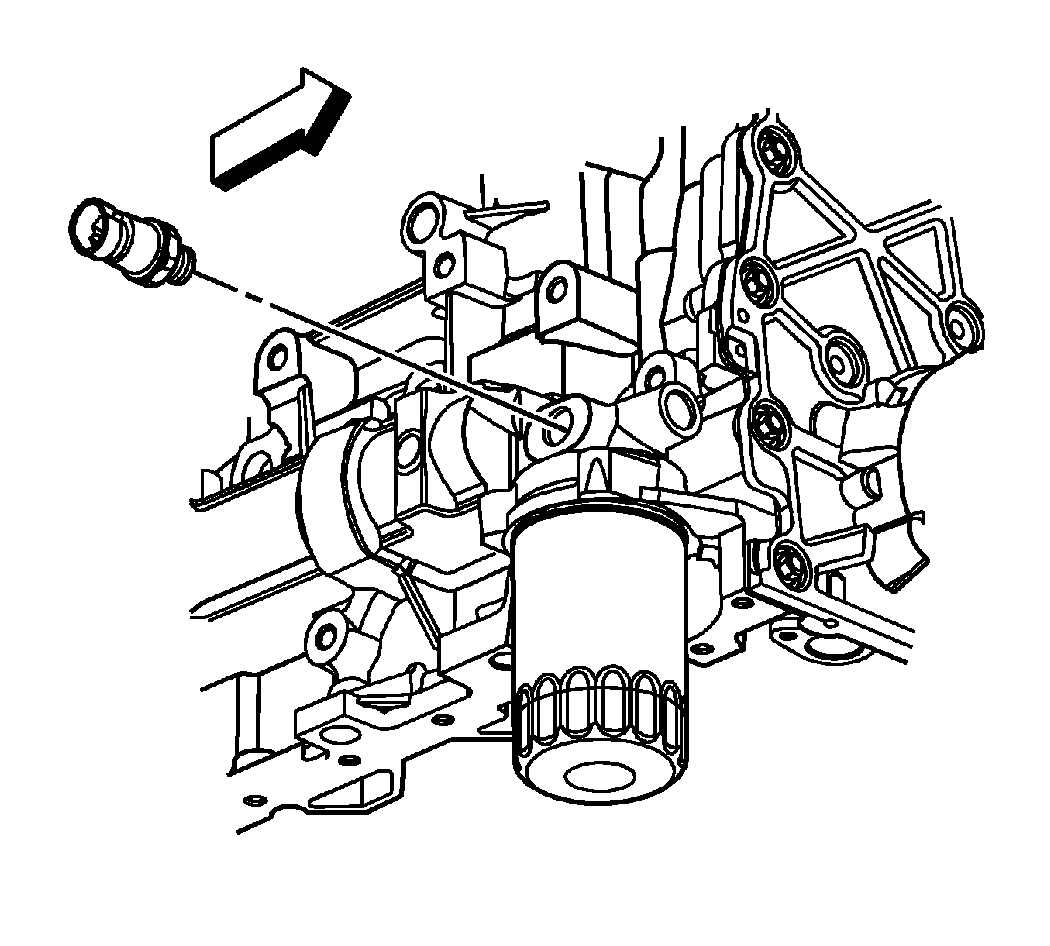

    3. Fig 2: View Of Engine Oil Pressure Switch
    GM1350706Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine oil pressure switch.
