Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Engine Mount-To-Frame Bracket Bolt - Right
    GM1201503Courtesy of GENERAL MOTORS CORP.
  1. Remove the right wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
  2. Remove the engine mount-to-frame bracket through bolt for the mount being replaced.
  3. Loosen the left side through bolt.
  4. Raise the engine using the jack stand. The engine will tilt to one side.

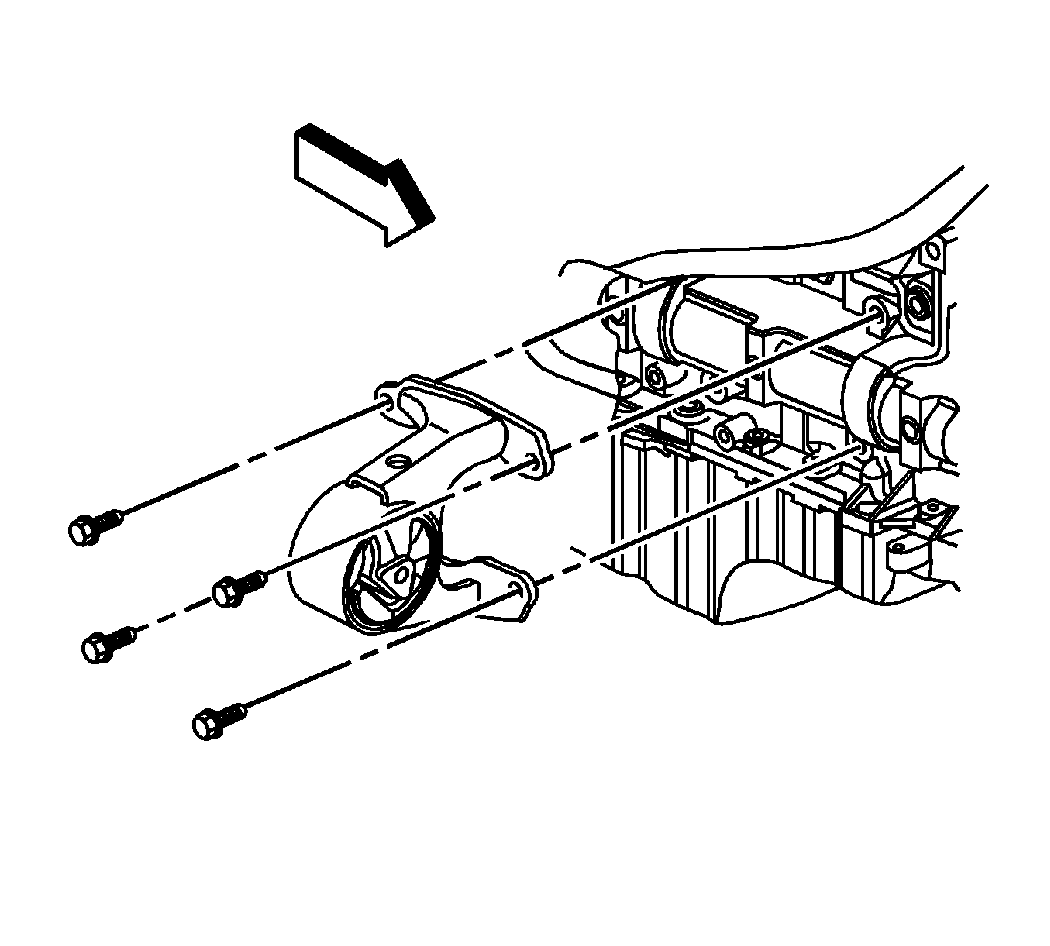

    5. Fig 2: View Of Engine Mount - Right
    GM1201374Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine mount bolts.
  6. Remove the engine mount. You will need to articulate the mount in order to remove the mount.
