Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

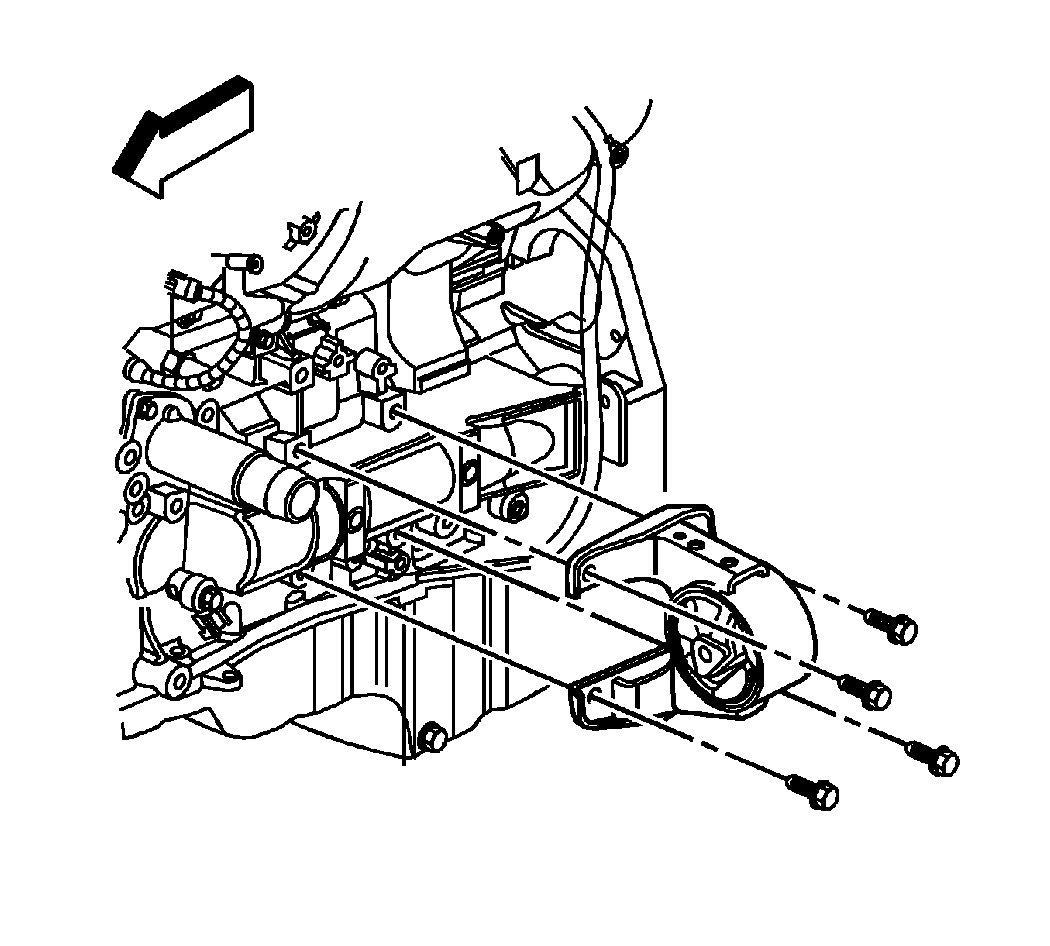

    Fig 1: View Of Engine Mount - Left
    GM1201372Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount. You will need to articulate the mount in order to install the mount.
  2. Install the engine mount bolts.
    3. Fig 2: Locating Installation Starter Bolt - Left
    GM1273486Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. To aid in the installation of the bolts, start a bolt in position (1) first.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  4. Lower the engine.
    5. Fig 3: View Of Engine Mount-To-Frame Bracket Bolt - Left
    GM1201502Courtesy of GENERAL MOTORS CORP.
  5. Install the engine mount-to-frame bracket through bolt.

    Tighten:  Tighten the bolts to 85 N.m (63 lb ft).

  6. Install the engine coolant pipe bracket bolt from the engine mount. Refer to Heater Hose Replacement - Outlet .
  7. Remove the jack stand.
  8. Install the lower intermediate steering shaft. Refer to Lower Intermediate Steering Shaft Replacement .
  9. Install the engine shield, if equipped. Refer to Engine Protection Shield Replacement .
  10. Install the left wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
  11. Lower the vehicle.
