Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

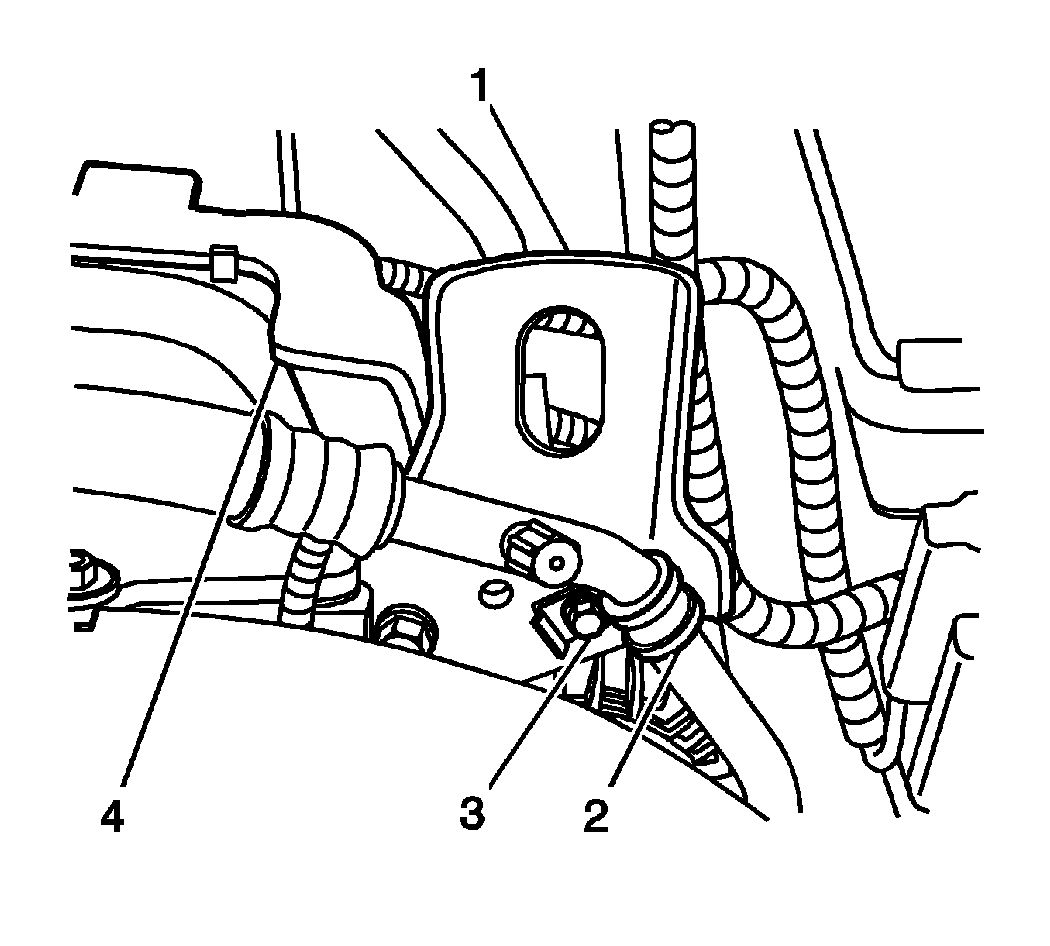

    Fig 1: View Of Engine Lift Bracket, A/C Compressor Hose/Pipe Bracket & Bolt, & Wiring Harness Conduit
    GM1350738Courtesy of GENERAL MOTORS CORP.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the bolt (3) securing the A/C compressor hose/pipe bracket (2) to the engine lift bracket (1).
  3. Carefully disengage the engine wiring harness conduit (4) from the engine lift bracket (1).

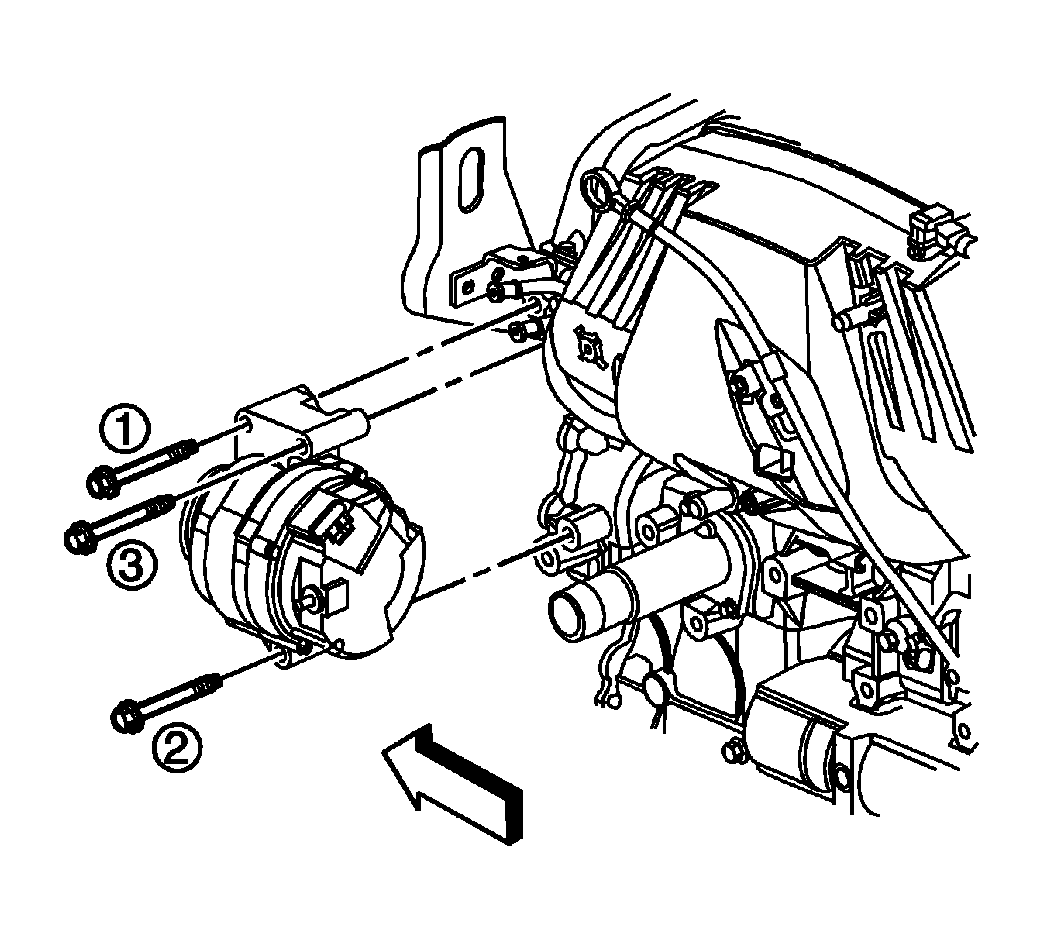

    4. Fig 2: View Of Generator Mounting Bolts
    GM1313647Courtesy of GENERAL MOTORS CORP.
  4. Remove the 3 generator mounting bolts.

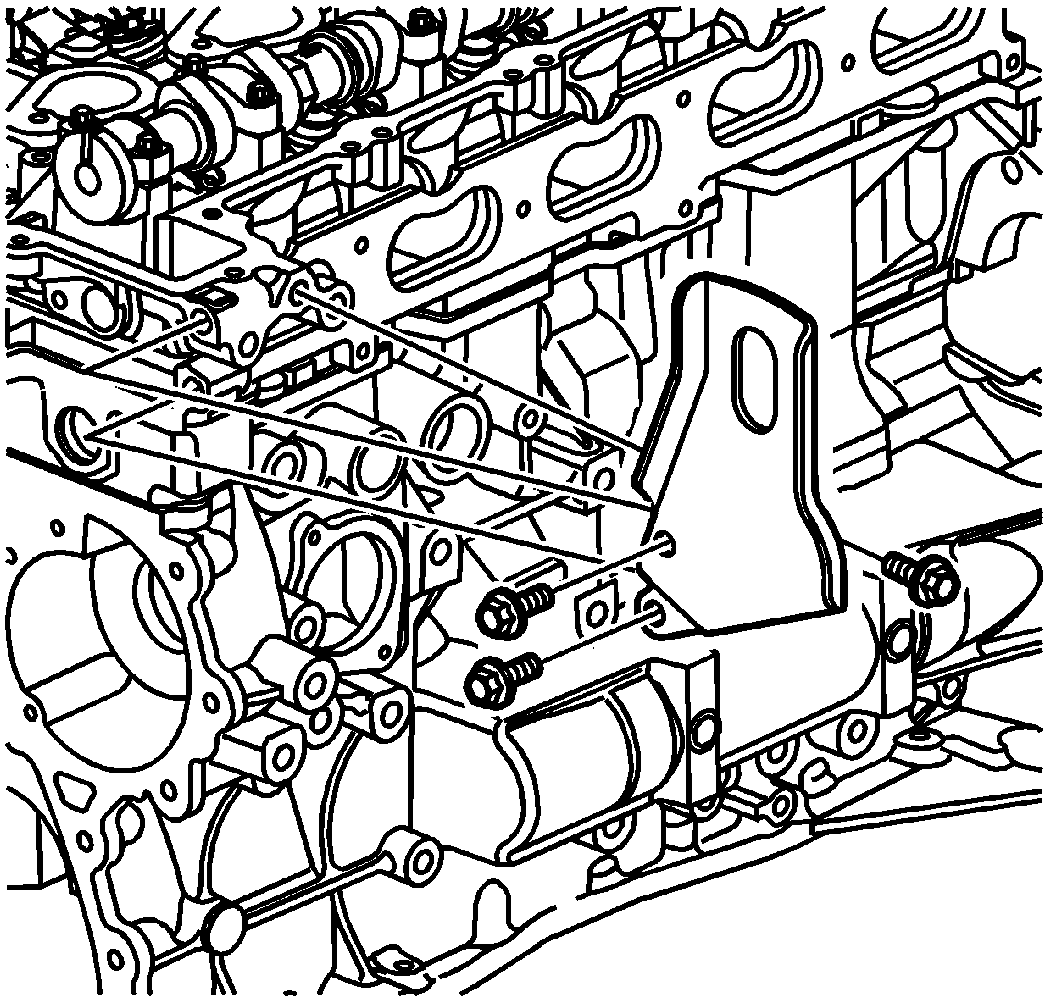

    5. Fig 3: View Of Engine Lift Bracket
    GM858182Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts securing engine lift bracket to the engine.
  6. Remove the engine lift bracket from the engine.
