Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

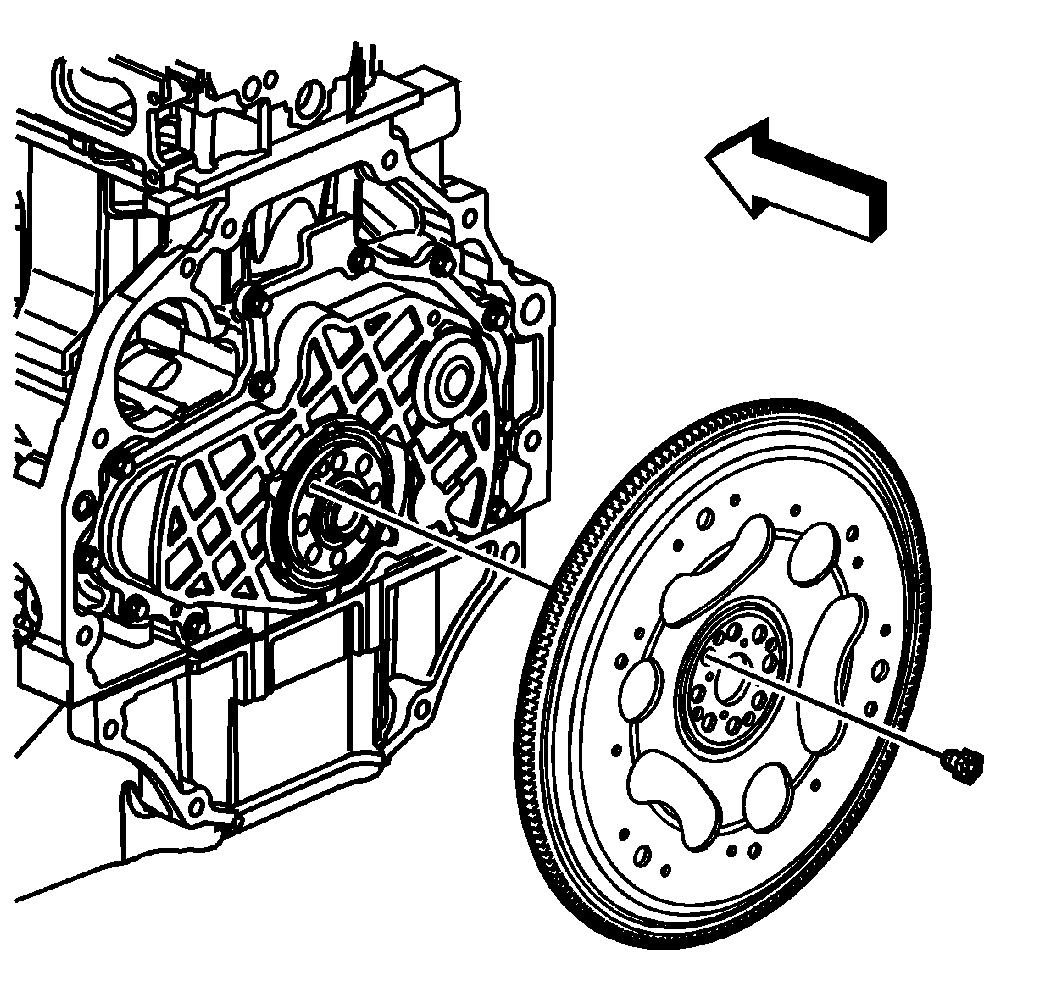

    Fig 1: View Of Engine Flywheel
    GM953909Courtesy of GENERAL MOTORS CORP.
  1. Remove the transmission. Refer to Transmission Replacement (4WD) or Transmission Replacement (RWD) .
  2. Remove and discard the flywheel bolts.
  3. Remove the flywheel.
