Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

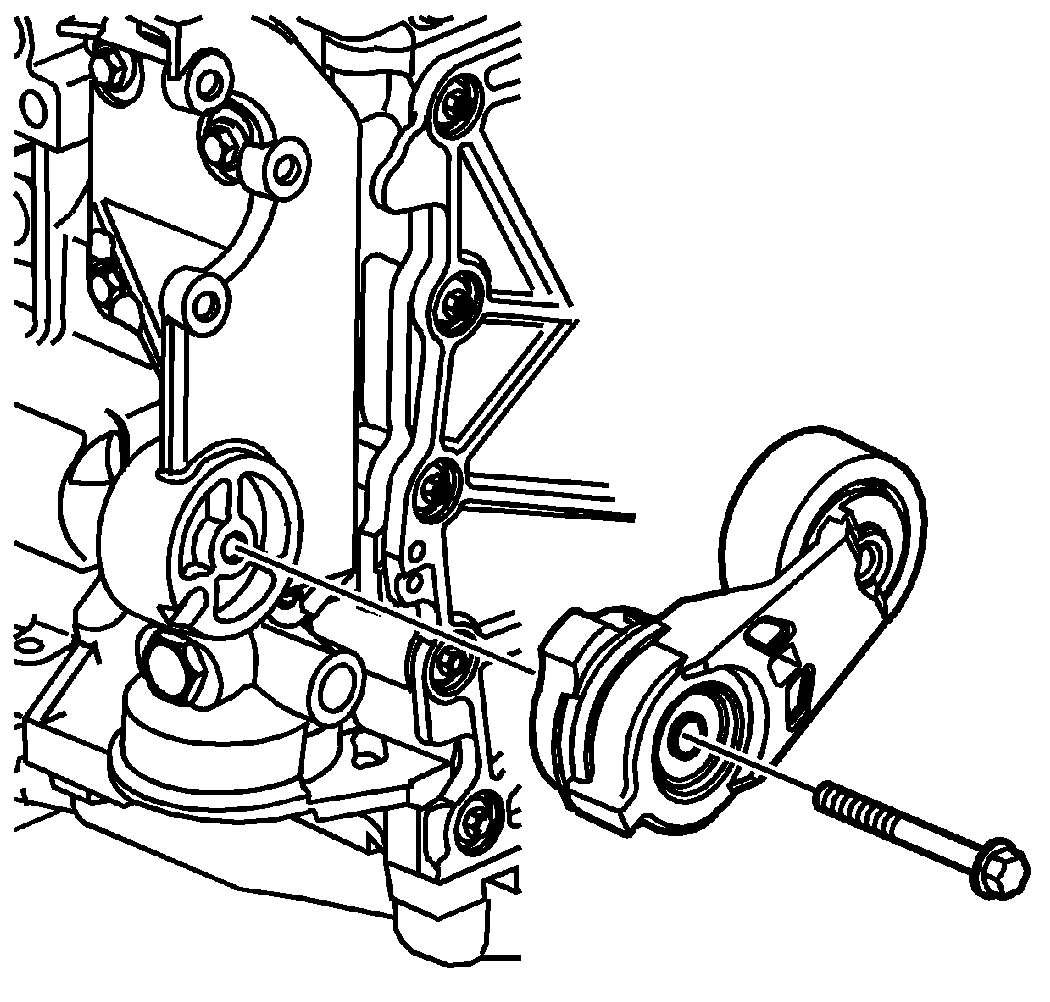

    Fig 1: View Of Drive Belt Tensioner
    GM858153Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt tensioner.
    2. NOTE: Refer to Fastener Notice .
  2. Install the drive belt tensioner bolt.

    Tighten:  Tighten the bolt to 50 N.m (37 lb ft).

  3. Install the drive belt Drive Belt Replacement .
