Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

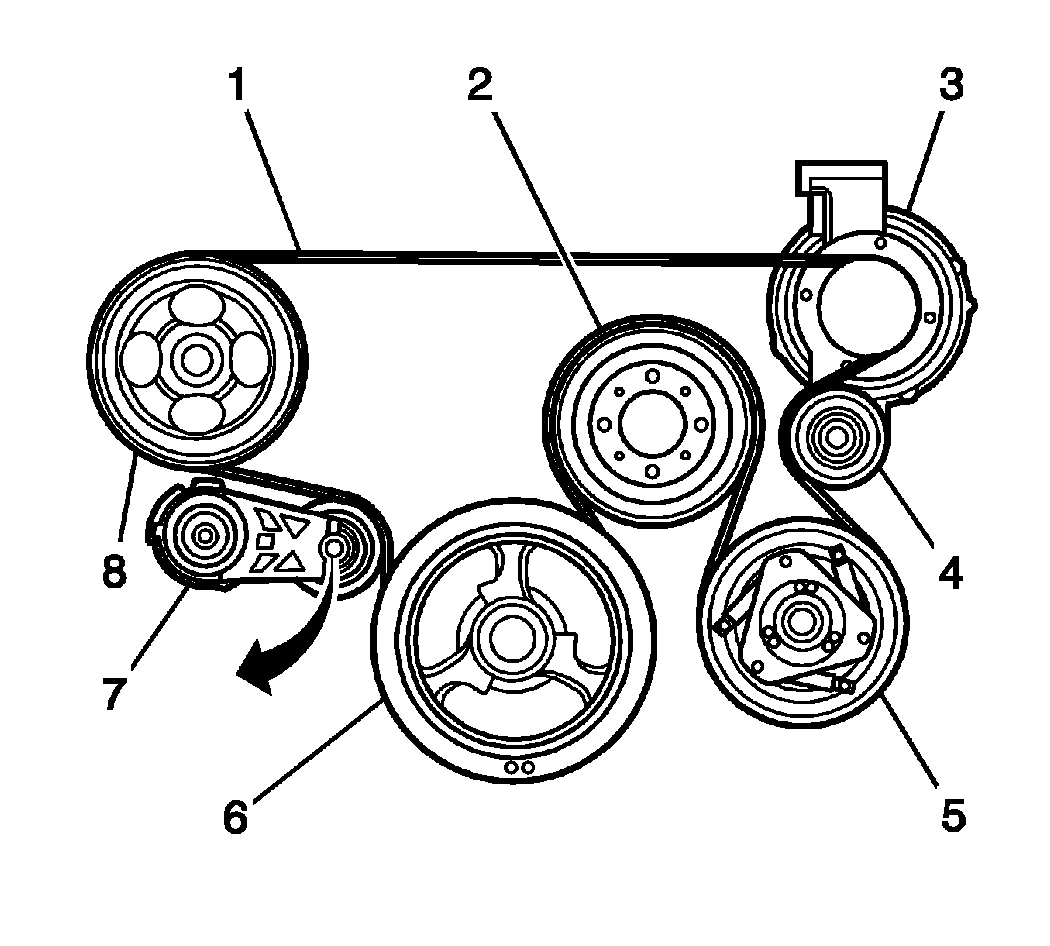

    Fig 1: Drive Belt & Pulleys (With A/C)
    GM1350686Courtesy of GENERAL MOTORS CORP.
  1. Install a 3/8 inch breaker bar into the drive belt tensioner (7) and rotate the tensioner (7) clockwise, enough to relieve the tension on the drive belt (1).
  2. Slide the drive belt (1) from the water pump pulley (2).
  3. Allow the drive belt tensioner (7) to return to the relaxed position.
  4. Remove the drive belt (1) from the remaining pulleys.
