Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

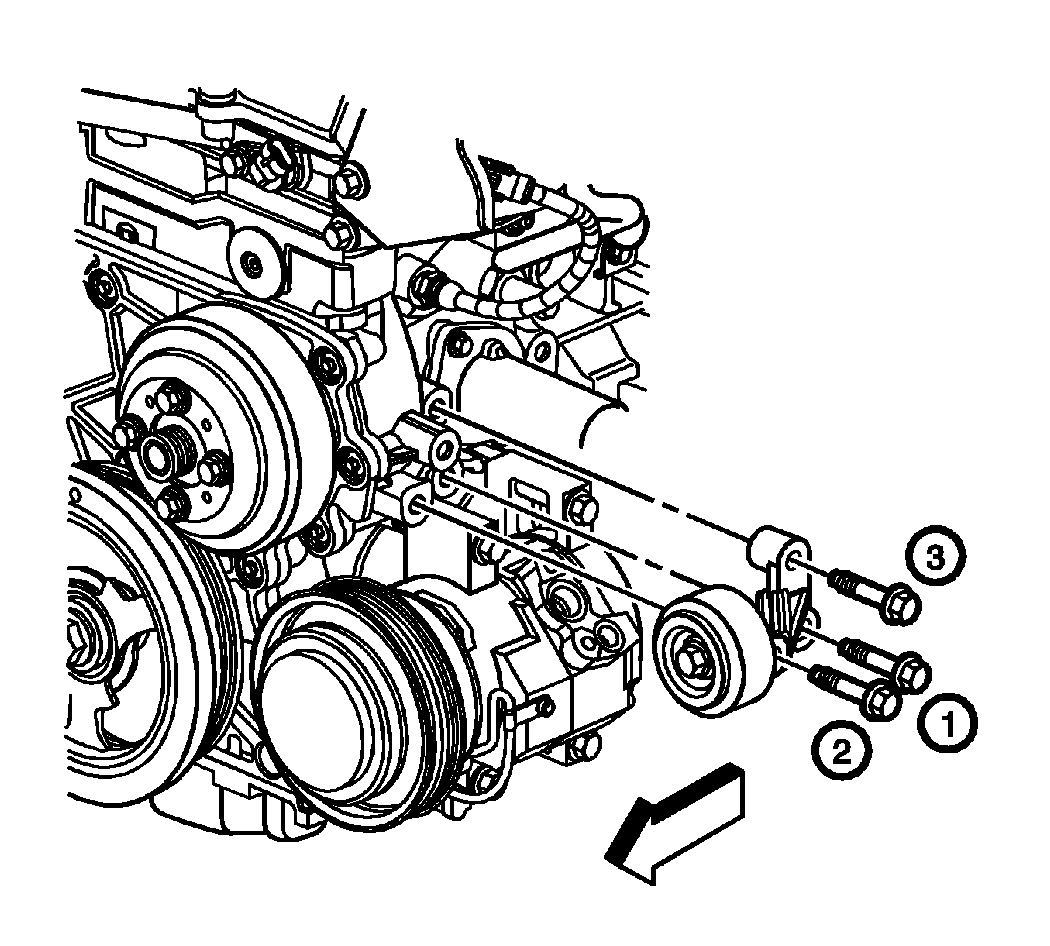

    Fig 1: View Of Drive Belt Idler Pulley & Bolts
    GM1350687Courtesy of GENERAL MOTORS CORP.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  3. Remove the air conditioning (A/C) suction hose from the compressor. Refer to Suction Hose Replacement .
  4. Remove the A/C discharge hose from the compressor. Refer to Discharge Hose Replacement .
  5. Remove the bolts securing the drive belt idler pulley to the engine.
  6. Remove drive belt idler pulley from the engine.
