Removal Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

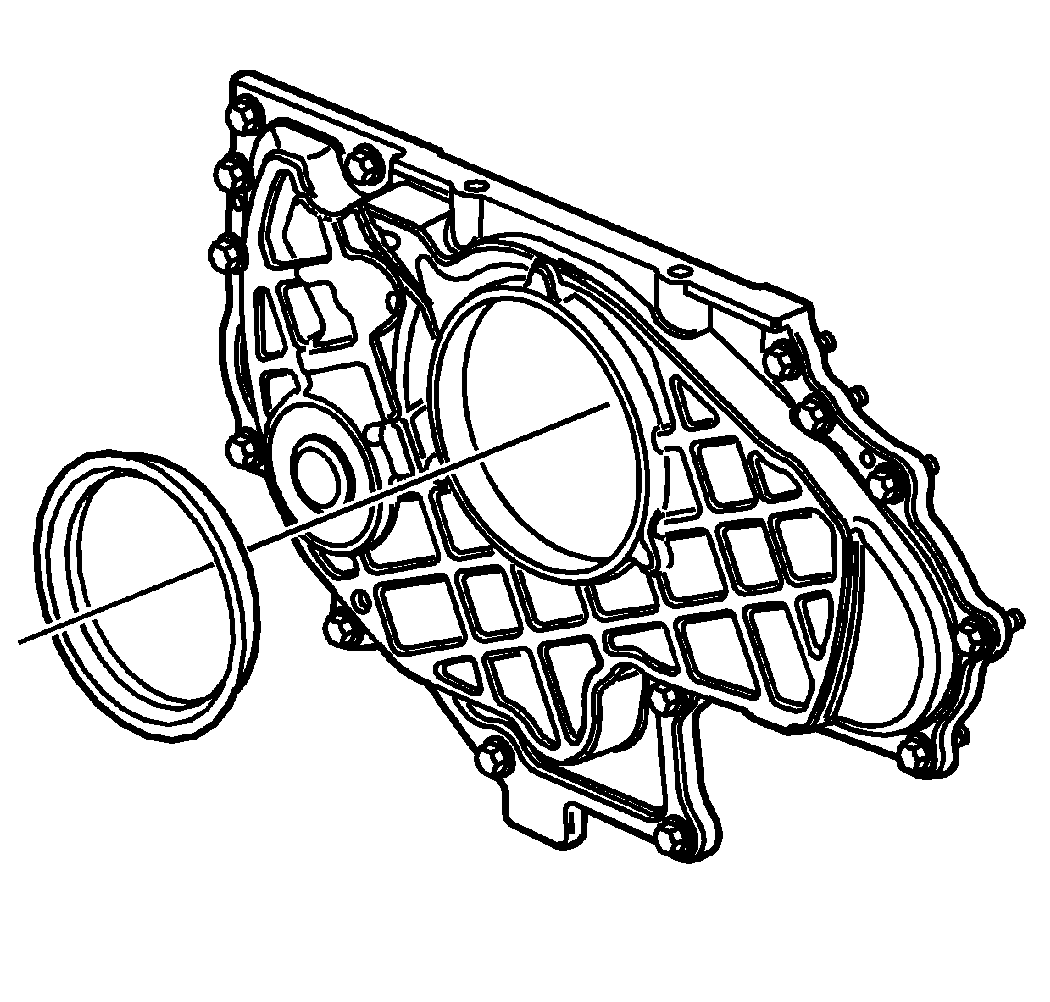

    Fig 1: View Of Crankshaft Rear Oil Seal
    GM1243912Courtesy of GENERAL MOTORS CORP.
  1. Remove the flywheel. Refer to Engine Flywheel Replacement (RPO M30)  or Engine Flywheel Replacement (RPO MA5) .
    2. IMPORTANT: Do not damage the crankshaft or seal bore.
  2. Using a suitable tool, pry the crankshaft rear oil seal from the crankshaft rear oil seal housing. Discard the seal.
