Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Installing Crankshaft Balancer Using The J 41478
    GM856229Courtesy of GENERAL MOTORS CORP.
  1. Install the crankshaft balancer friction washer to the end of the crankshaft balancer.
    2. IMPORTANT: Remove the original bolt from the J 41478  and use a M16 x 2.0 x 165 mm bolt.
  2. Install the crankshaft balancer using the J 41478  .
  3. Remove the J 41478  .
    4. Fig 2: View Of Crankshaft Balancer Bolt
    GM856226Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  4. Install the crankshaft balancer washer and NEW bolt.

    Tighten:  Tighten the bolt to 150 N.m (111 lb ft) plus an additional 180 degrees using the J 45059  .

  5. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

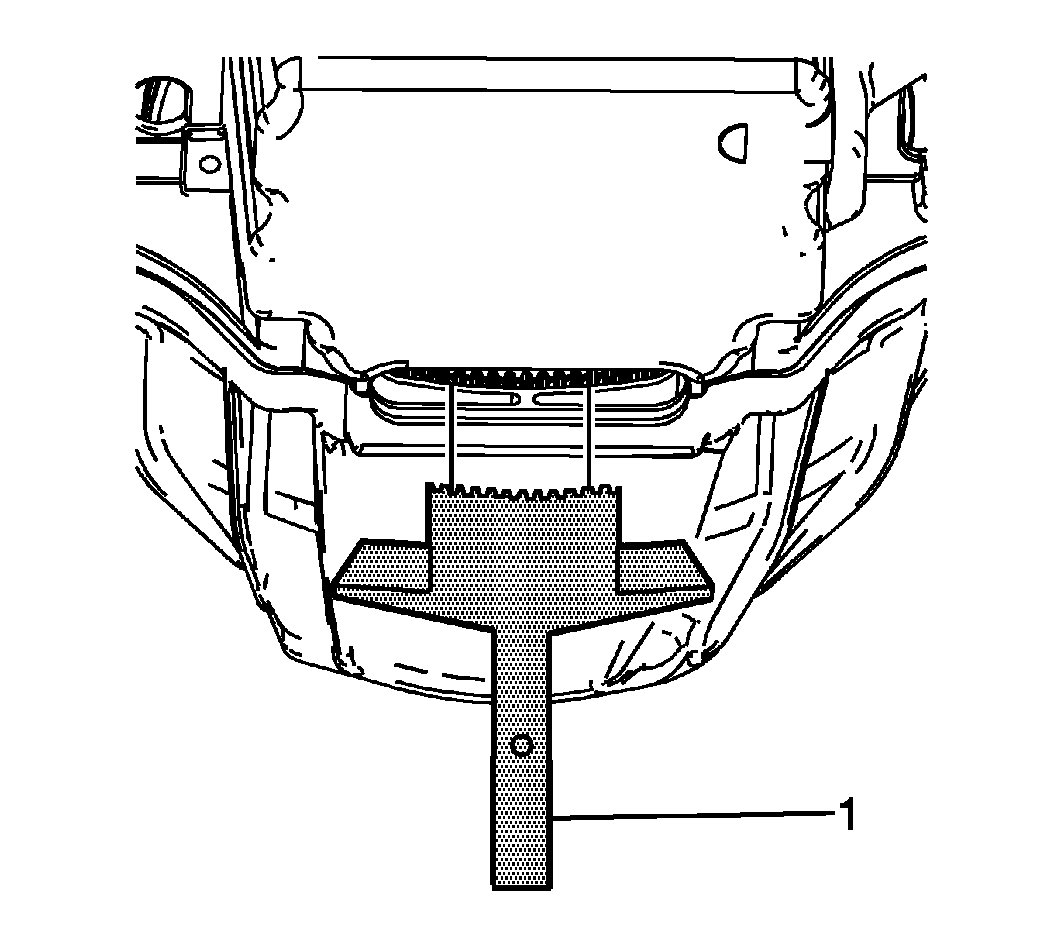

    6. Fig 3: Identifying EN 46547
    GM1386661Courtesy of GENERAL MOTORS CORP.
  6. Remove the EN 46547  (1) from the flywheel teeth.
    7. Fig 4: View Of Service Slot Plug
    GM1302113Courtesy of GENERAL MOTORS CORP.
  7. Install the service slot plug.
  8. Lower the vehicle.
  9. Install the drive belt. Refer to Drive Belt Replacement .
