Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

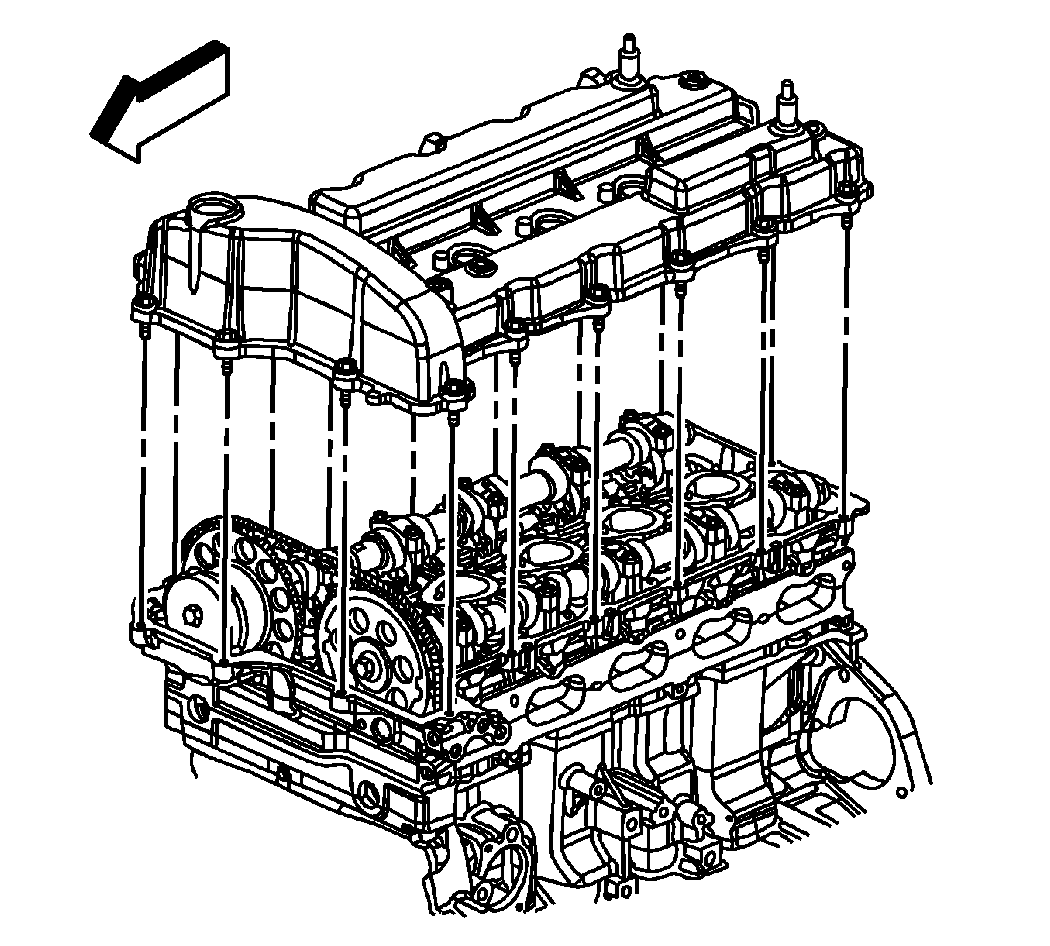

    Fig 1: View Of Camshaft Cover
    GM1765149Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW camshaft cover seal into the camshaft cover groove.
  2. Install NEW ignition coil seals into the camshaft cover grooves.
  3. Place the camshaft cover to the cylinder head.
    4. NOTE: Refer to Fastener Notice .
  4. Install the camshaft cover bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

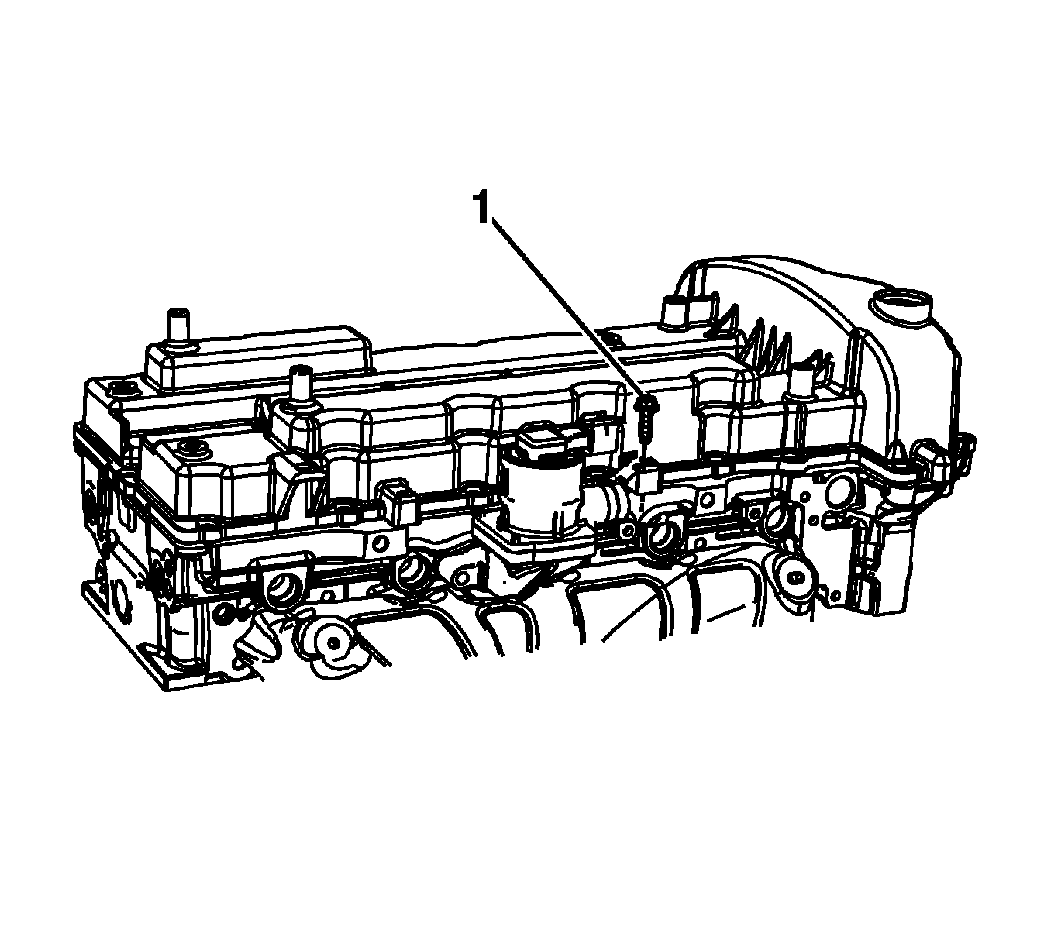

    5. Fig 2: Positioning ground wire to the camshaft cover
    GM1765154Courtesy of GENERAL MOTORS CORP.
  5. Position the ground wire to the camshaft cover. Ensure that the anti rotation tab is seated against the cover.
  6. Install the camshaft ground wire bolt (1) to the cover.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    7. Fig 3: View Of Engine Wiring Harness Electrical Connectors
    GM1765153Courtesy of GENERAL MOTORS CORP.
  7. Install the following electrical connectors to the camshaft cover.
    • The fuel injector (1)
    • The HO2S (2)
    • The ECT sensor (3)
  8. Install the ignition coils. Refer to Ignition Coil Replacement .
  9. Install the intake manifold. Refer to Intake Manifold Replacement .
