Installation Procedure

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

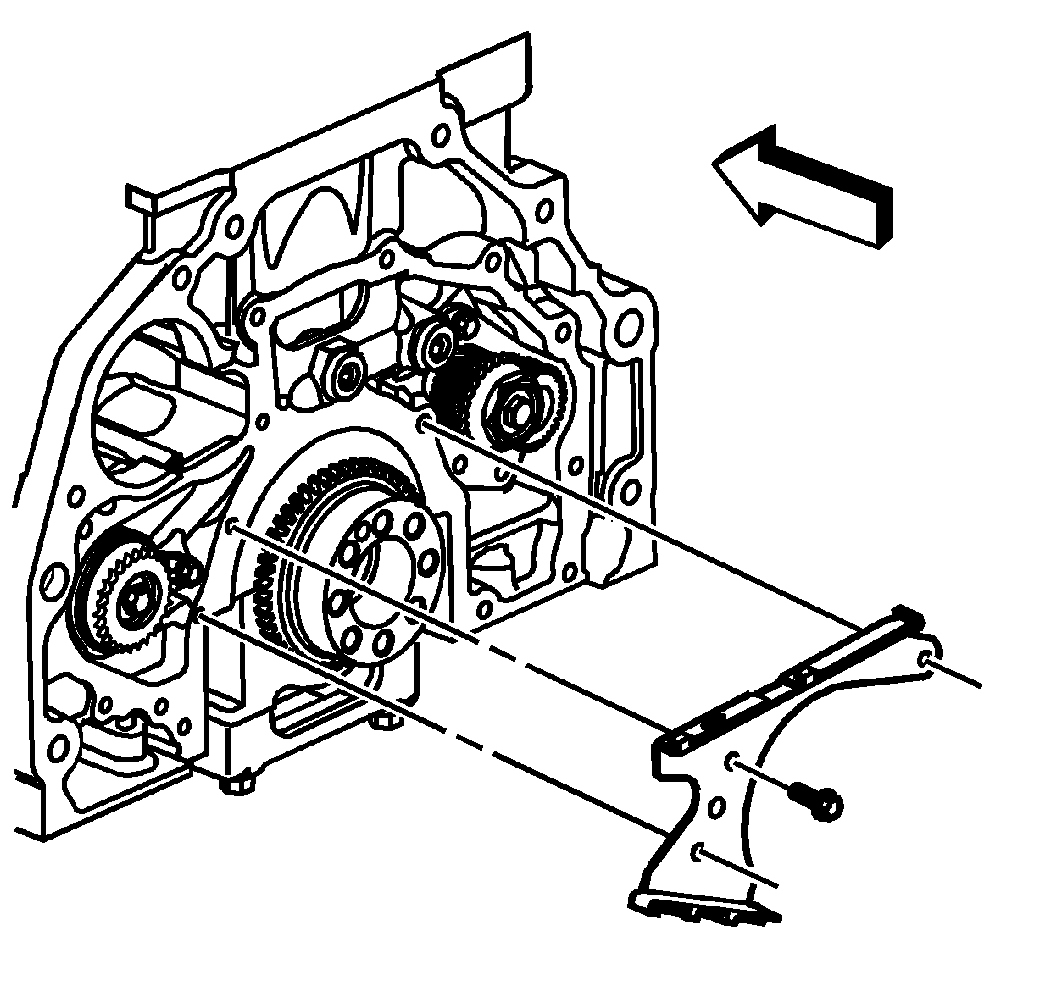

    Fig 1: View Of Balance Shaft Chain Guide
    GM954003Courtesy of GENERAL MOTORS CORP.
  1. Install the balance shaft chain guide.
    2. NOTE: Refer to Fastener Notice .
  2. Install the balance shaft chain guide bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  3. Install the balance shaft drive chain. Refer to Balance Shaft Drive Chain Replacement .
