Valve Rocker Arm and Valve Lash Adjuster Removal

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

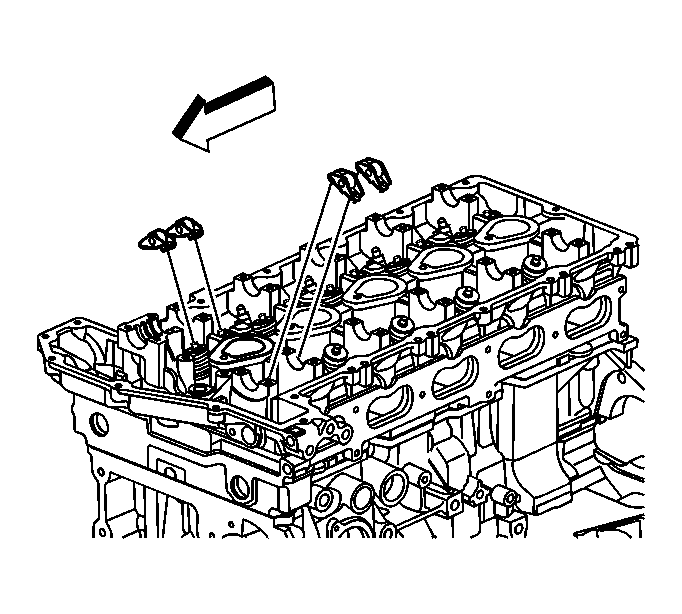

    Fig 1: View Of Valve Rocker Arms
    GM858186Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Once removed, place the valve rocker arms and valve lash adjusters in an organized order so the components can be installed into the original locations.
  1. Remove the valve rocker arms.

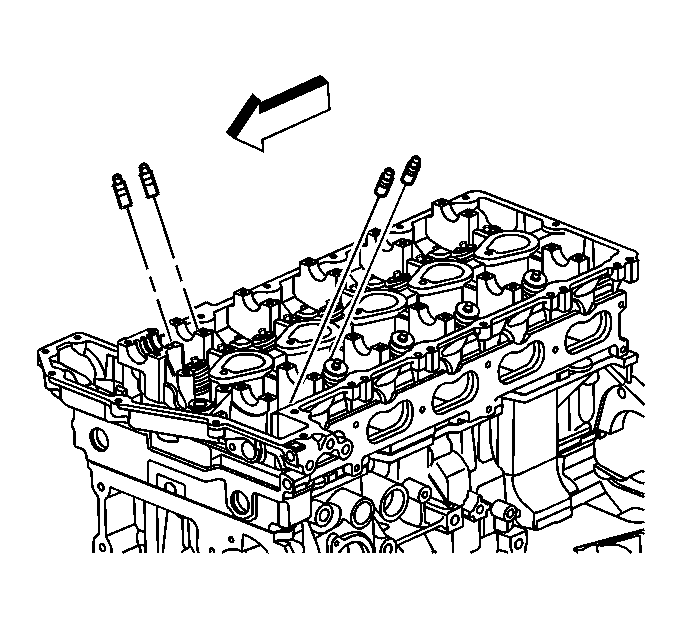

    2. Fig 2: View Of Valve Lash Adjusters
    GM858187Courtesy of GENERAL MOTORS CORP.
  2. Remove the valve lash adjusters.
