Timing Chain and Sprockets Removal

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Exhaust Camshaft Sensor
    GM858172Courtesy of GENERAL MOTORS CORP.
  1. Remove the exhaust camshaft sensor bolt.
  2. Remove the exhaust camshaft sensor.
    3. Fig 2: View Of Intake Camshaft Sensor
    GM1619807Courtesy of GENERAL MOTORS CORP.
  3. Remove the intake camshaft sensor bolt.
  4. Remove the intake camshaft sensor.

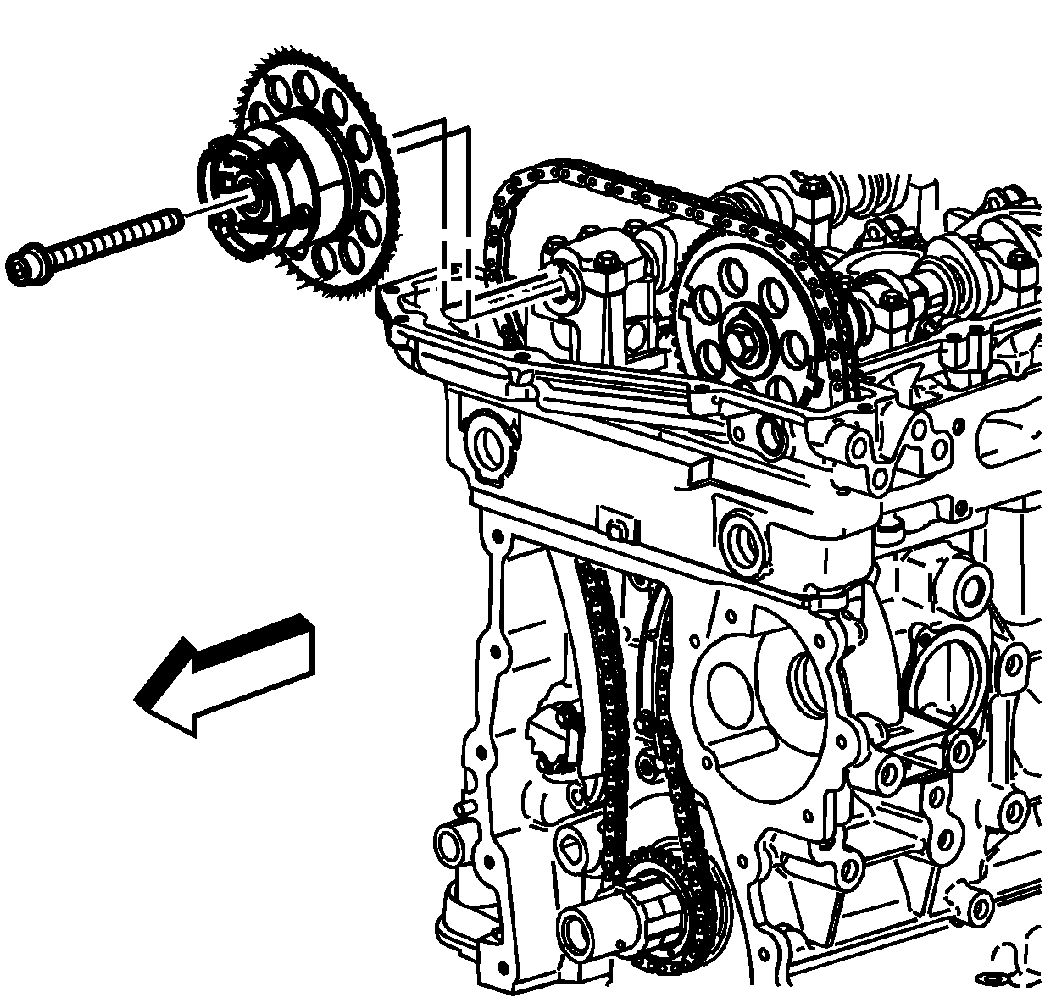

    5. Fig 3: Identifying Exhaust Camshaft Position Actuator Bolt
    GM1619812Courtesy of GENERAL MOTORS CORP.
  5. Remove and discard the exhaust camshaft position actuator bolt.
  6. Remove the exhaust camshaft position actuator.
    7. Fig 4: View Of Timing Chain & Sprockets
    GM637575Courtesy of GENERAL MOTORS CORP.
  7. Remove the intake camshaft sprocket bolt.
  8. Remove the intake camshaft sprocket.
  9. Remove the timing chain.
  10. Remove the crankshaft sprocket.
