Timing Chain Tensioner Installation

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

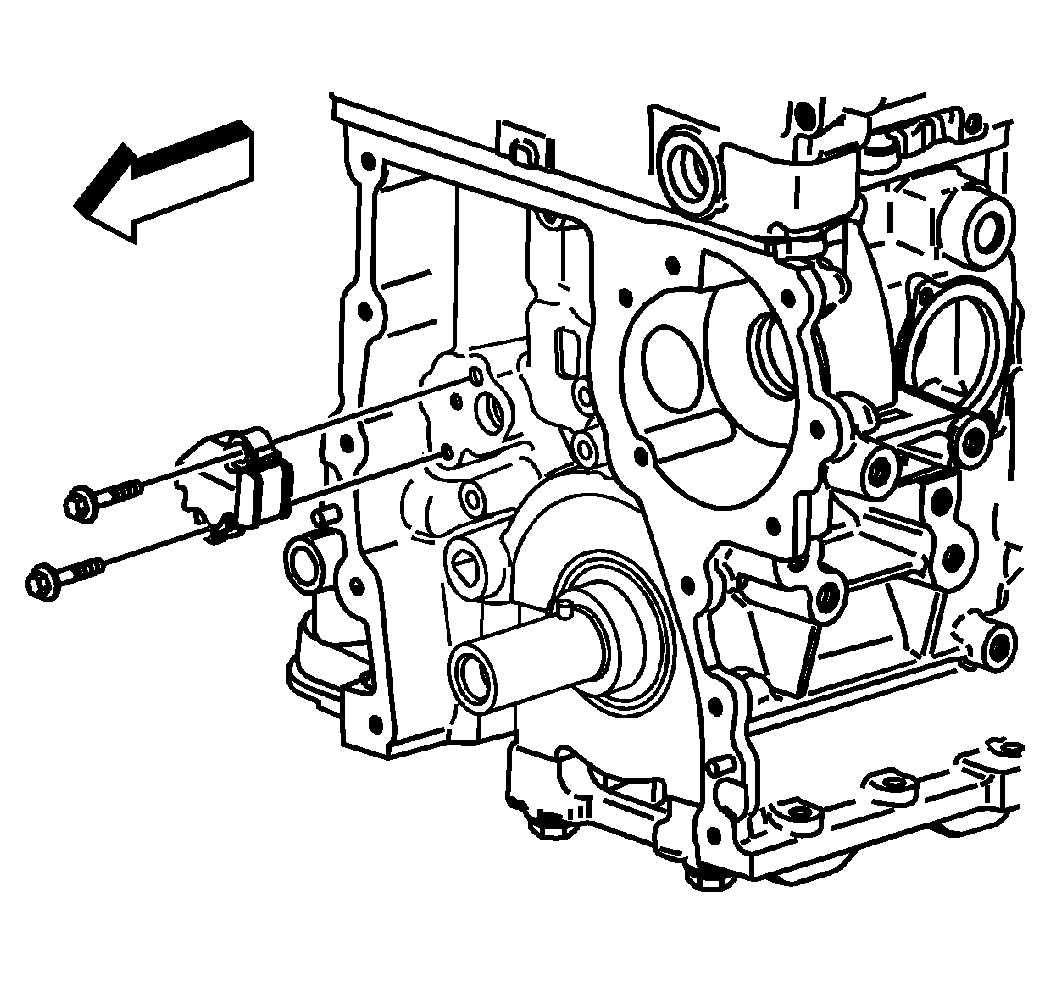

Fig 1: View Of Timing Chain Tensioner

Courtesy of GENERAL MOTORS CORP.

Install the timing chain tensioner.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the timing chain tensioner bolts.
Tighten: Tighten the timing chain tensioner bolts to 25 N.m (18 lb ft).

Fig 2: View Of Timing Chain Guide & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the timing chain tensioner guide.
Install the timing chain tensioner guide bolts.
Tighten: Tighten the timing chain tensioner guide bolts to 22 N.m (16 lb ft).

Fig 3: View Of Timing Chain Tensioner Shoe & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the timing chain tensioner shoe.
Install the timing chain tensioner shoe bolt.
Tighten: Tighten the timing chain tension shoe bolt to 25 N.m (18 lb ft).

Fig 4: View Of Cylinder Head Access Hole Plugs

Courtesy of GENERAL MOTORS CORP.

Install the cylinder head access hole plugs.
Tighten: Tighten the cylinder head access hole plugs to 5 N.m (44 lb in).
