Tools Required

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

J 41556  Connecting Rod Guides

    Fig 1: View Of Connecting Rod, Cap & Bolts
    GM637721Courtesy of GENERAL MOTORS CORP.
  1. Mark the piston with the number of the cylinder from which the piston is being removed. Also mark the orientation.
  2. Mark the connecting rod and the connecting rod cap with the cylinder position. Also mark the orientation. This will ensure the caps and connecting rods are re-assembled properly.
  3. Remove the connecting rod bolts.
  4. Remove the connecting rod cap and bearing half.
    5. Fig 2: View Of J 41556
    GM715589Courtesy of GENERAL MOTORS CORP.
  5. Install J 41556  on the connecting rod.

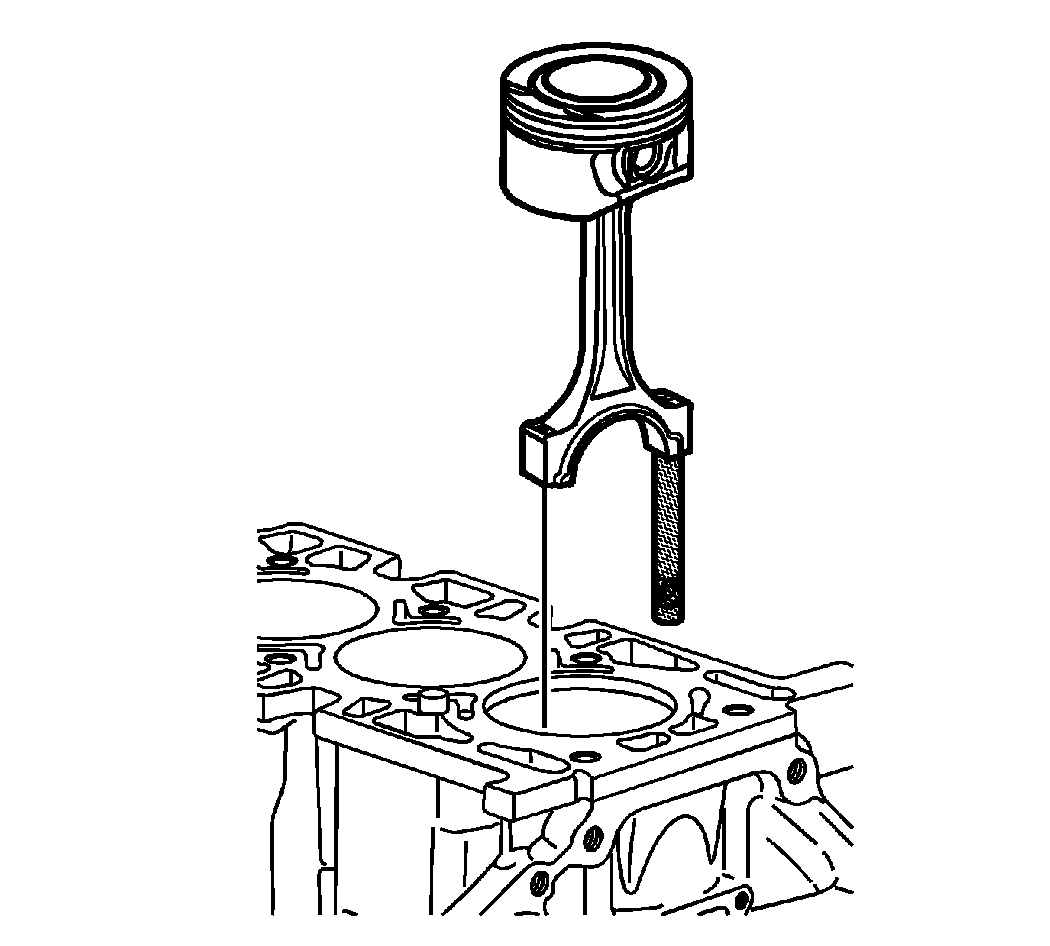

    6. Fig 3: Connecting Rod & Piston Assembly
    GM1657349Courtesy of GENERAL MOTORS CORP.
  6. Remove the connecting rod and piston assembly. Push out the assembly.
  7. Remove J 41556  .
