Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

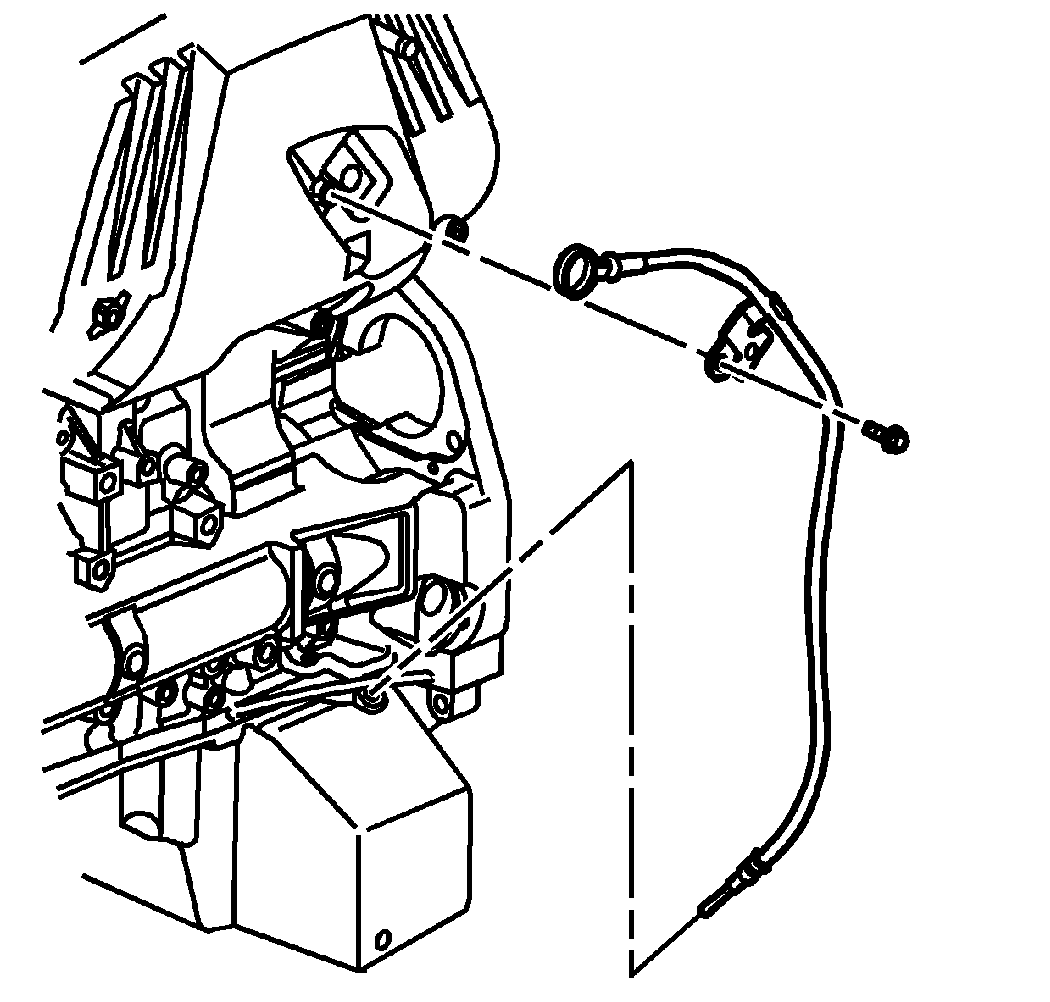

    Fig 1: View Of Oil Level Indicator & Tube
    GM858155Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil level indicator.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube.
