Intake Manifold Installation

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

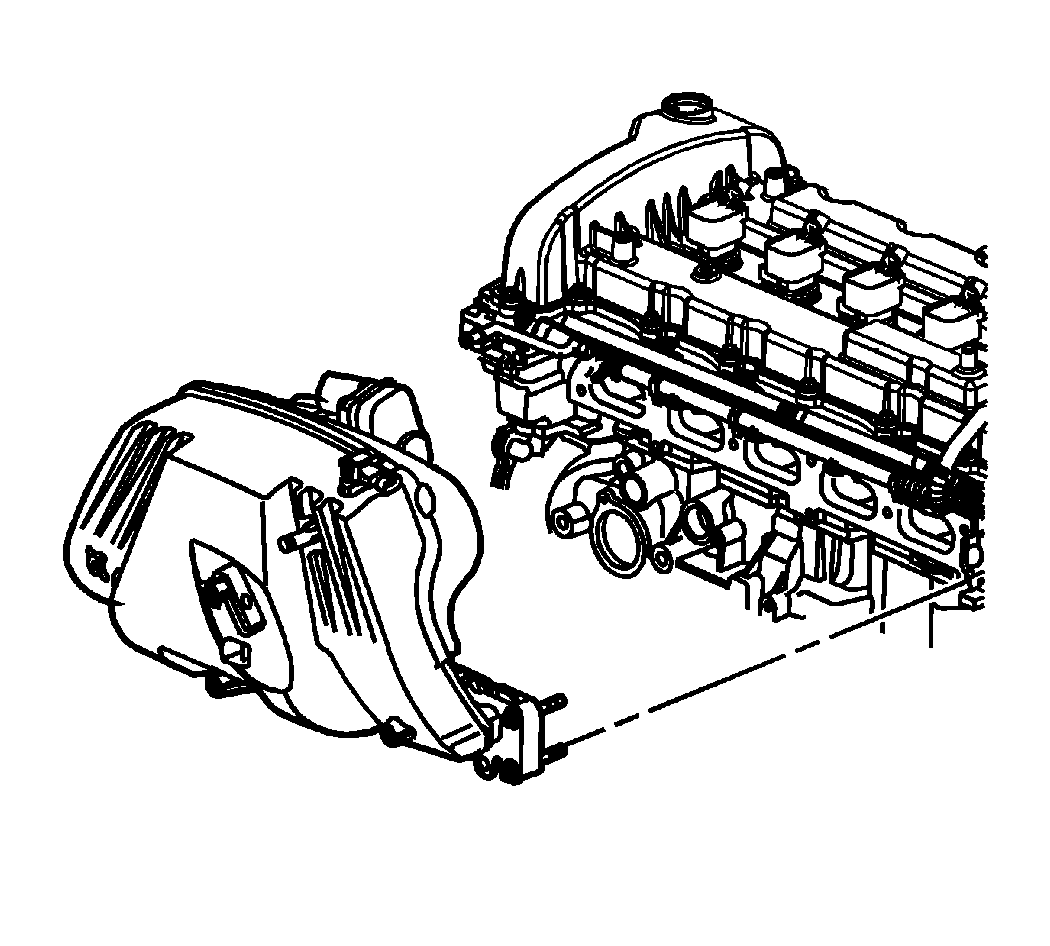

    Fig 1: Identifying Intake Manifold And Bolts
    GM1816277Courtesy of GENERAL MOTORS CORP.
  1. Install a new intake manifold gasket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the intake manifold and bolts.

    Tighten:  Tighten the intake manifold bolts from the inside out to 10 N.m (89 lb in).

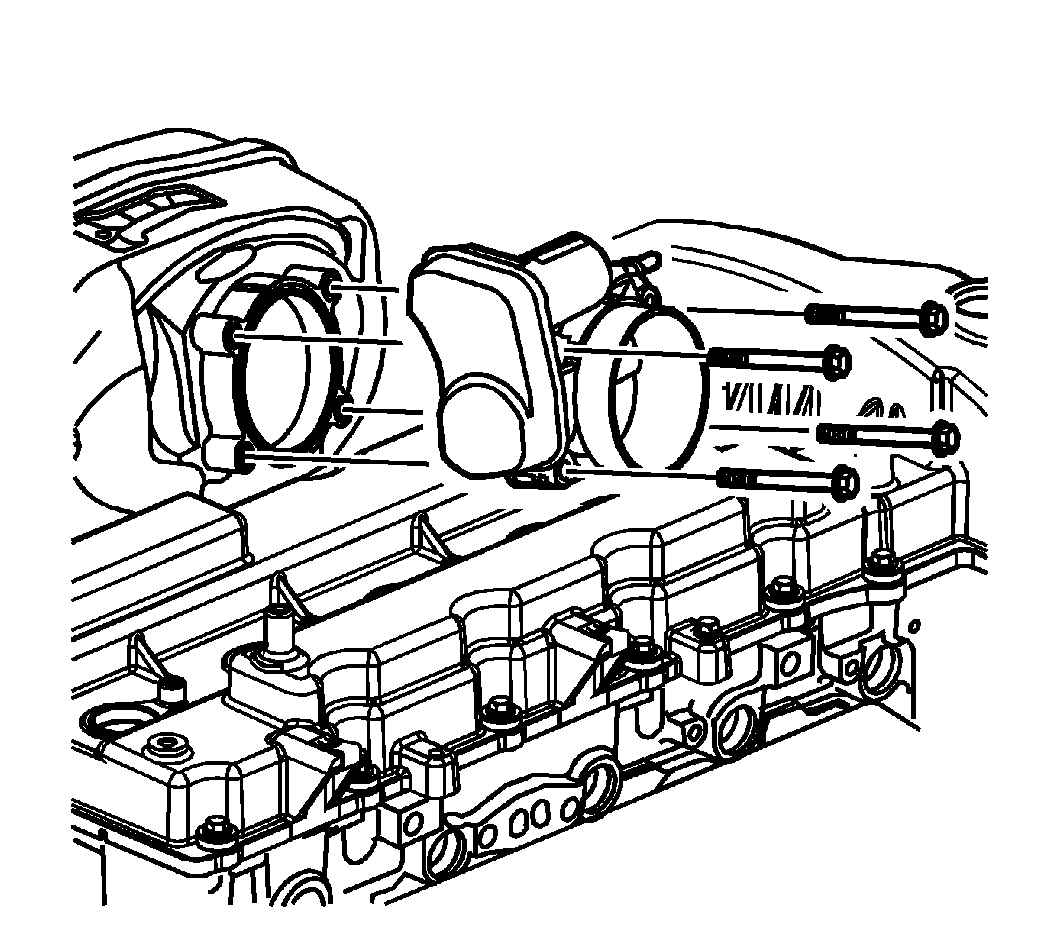

    3. Fig 2: Identifying Throttle Control Module Bolts
    GM1817017Courtesy of GENERAL MOTORS CORP.
  3. Install a new throttle control module gasket.
  4. Install the throttle control module.
  5. Add threadlock GM P/N 12346004 (Canadian P/N 10953480) to the throttle control module bolt threads.
  6. Install the throttle control module bolts.

    Tighten:  Tighten the throttle control module bolts to 10 N.m (89 lb in).
