Exhaust Manifold Removal

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Exhaust Manifold Heat Shield
    GM1619831Courtesy of GENERAL MOTORS CORP.
  1. Remove the exhaust manifold heat shield nuts.
  2. Remove the exhaust manifold heat shield.

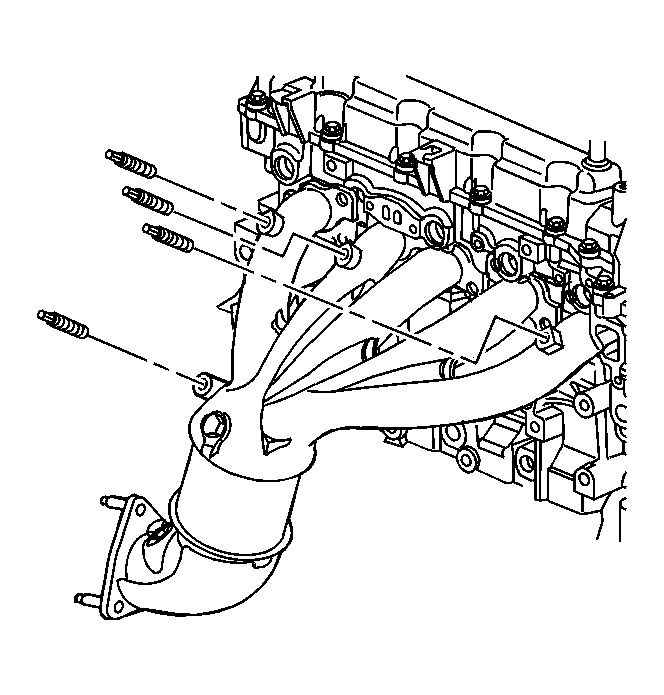

    3. Fig 2: View Of Exhaust Manifold Studs
    GM858157Courtesy of GENERAL MOTORS CORP.
  3. Remove the exhaust manifold studs.(if needed)

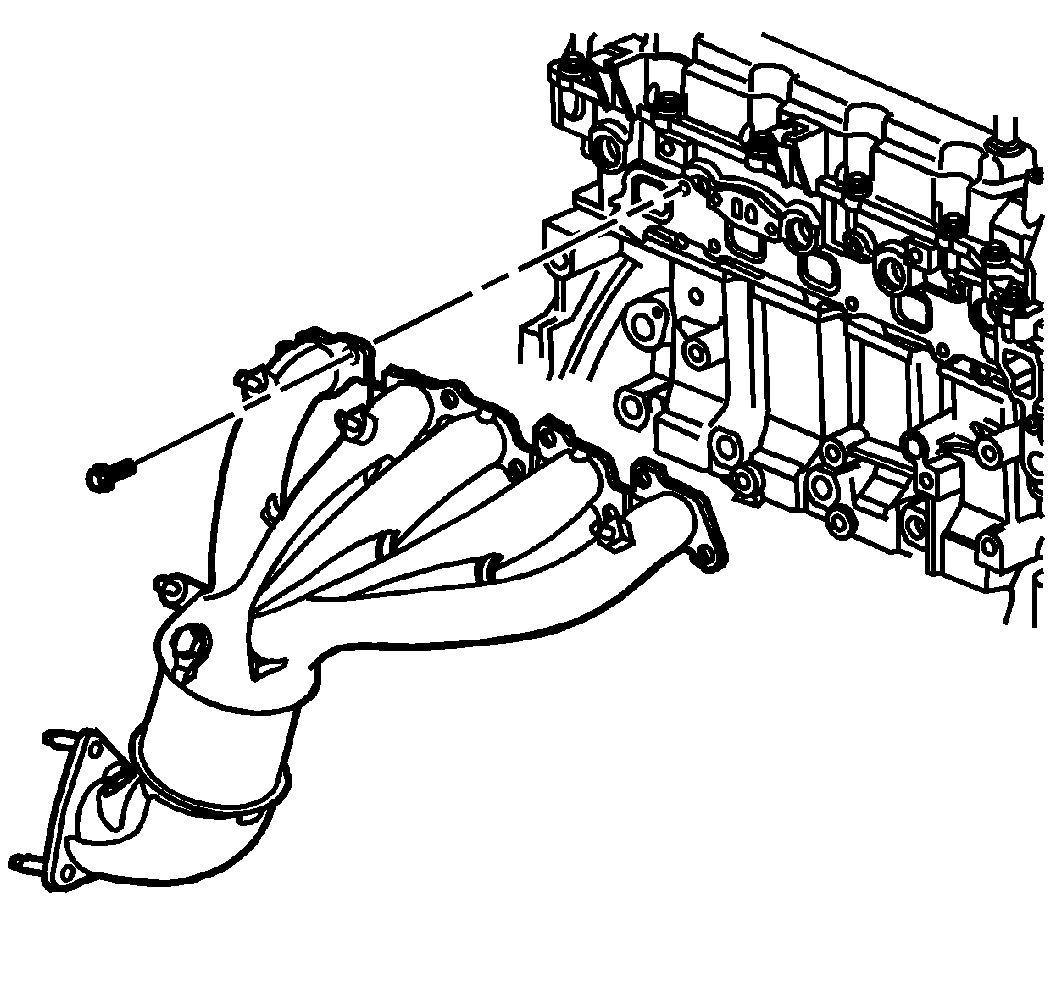

    4. Fig 3: View Of Exhaust Manifold
    GM858158Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust manifold bolts.
  5. Remove the exhaust manifold.

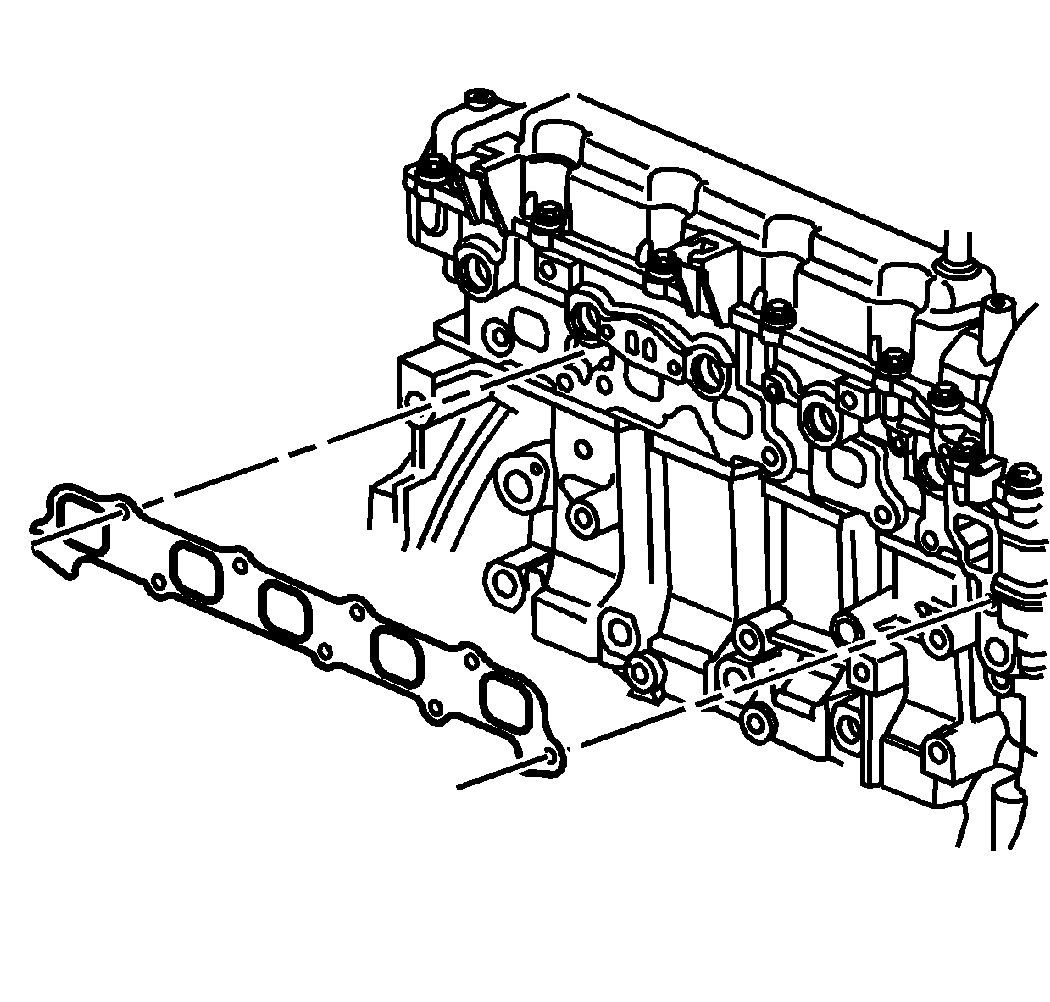

    6. Fig 4: View Of Exhaust Manifold Gasket
    GM858159Courtesy of GENERAL MOTORS CORP.
  6. Remove and discard the exhaust manifold gasket.
